Solar Energy Potential in Cartago, Costa Rica

Cartago, Costa Rica, located at coordinates 9.8641, -83.9141, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with weather patterns defined more by wet and dry seasons than traditional four-season cycles. The solar energy production potential in Cartago shows a fairly even distribution across meteorological seasons, with slight variations that favor the first half of the calendar year. During Spring, panels can generate approximately 5.16 kWh per day for each kilowatt of installed capacity, making it the most productive season. Winter follows closely with 5.08 kWh/day, while Summer and Autumn produce slightly less at 4.74 kWh/day and 4.69 kWh/day respectively. For residents or businesses considering solar installation in Cartago, the optimal fixed panel tilt angle is 10 degrees facing South. This specific angle has been calculated to maximize year-round energy production by accounting for Cartago's particular latitude and the Earth's elliptical orbit around the sun.

Environmental and Weather Considerations

The primary environmental factor that could impact solar production in Cartago is the region's distinct rainy season, typically occurring from May to November. During these months, increased cloud cover and precipitation can temporarily reduce solar panel efficiency. The rainiest periods, particularly September and October, may see more significant drops in production compared to the annual average. Another consideration is the potential for volcanic ash from nearby Irazú and Turrialba volcanoes, which can occasionally deposit particulate matter on panel surfaces, reducing their effectiveness. To mitigate these challenges, several preventative measures can be implemented:

• Install panels at the optimal 10-degree South-facing tilt to maximize production and facilitate natural cleaning from rainfall
• Implement regular cleaning schedules, particularly during the dry season when dust accumulation is higher
• Consider microinverter or power optimizer technology that minimizes production losses when parts of the array are shaded
• Use weather-resistant panels and mounting systems designed to withstand tropical conditions
• Install slightly more capacity than minimally needed to account for seasonal variations

Despite these considerations, Cartago's consistent year-round solar radiation makes it a viable location for solar energy investment, with an annual average production of nearly 5 kWh per day for each kilowatt installed—a respectable figure that supports the economic viability of solar projects in this region.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 27 locations across Costa Rica. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Costa Rica by location

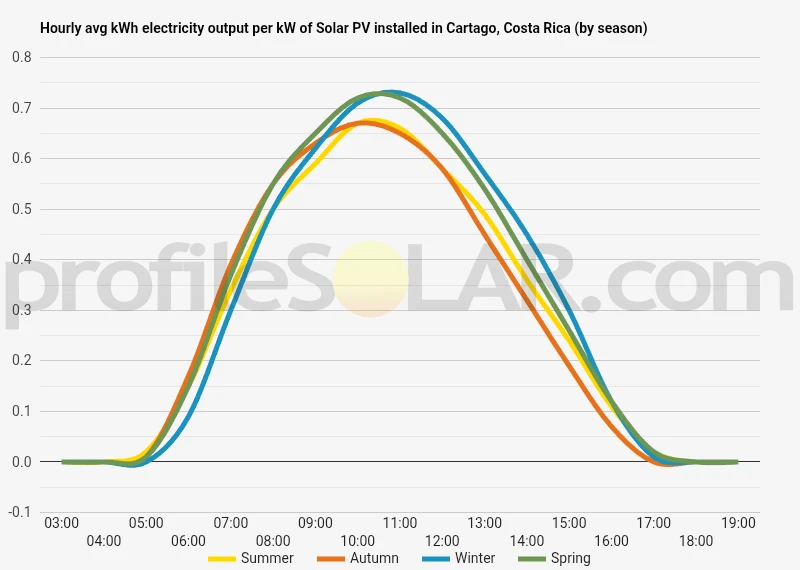

Solar output per kW of installed solar PV by season in Cartago

Seasonal solar PV output for Latitude: 9.8641, Longitude: -83.9141 (Cartago, Costa Rica), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Cartago, Costa Rica

To maximize your solar PV system's energy output in Cartago, Costa Rica (Lat/Long 9.8641, -83.9141) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cartago, Costa Rica

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cartago, Costa Rica. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	25° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cartago, Costa Rica

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cartago, Costa Rica.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cartago, Costa Rica

Cartago, Costa Rica, situated at approximately 9.8641° N, 83.9141° W, is characterized by a diverse and dramatic topography shaped by volcanic and tectonic activity. The city lies in the Central Valley (Valle Central) of Costa Rica, nestled within the Central Volcanic Range, at an elevation of about 1,435 meters (4,708 feet) above sea level. The most prominent topographical feature near Cartago is the Irazú Volcano, which stands majestically to the north at 3,432 meters (11,260 feet). This active volcano creates a significant elevation gradient in the region, with the terrain rising sharply from the valley floor where Cartago sits. The slopes of Irazú are characterized by a mix of steep inclines and more gradual rises, with numerous ravines and valleys carved by centuries of water erosion.

Valley and Surrounding Mountains

To the south of Cartago rise the Talamanca Mountains, another major topographical feature that defines the region. This mountain range creates a natural boundary and contributes to the basin-like character of the Central Valley. The transition from the valley floor to these mountains is marked by increasing elevation and steeper slopes. The city itself sits on a relatively flat plateau within the valley, though the urban area does experience some gentle undulations. The Reventazón River and its tributaries have carved channels through the landscape, creating minor valleys and floodplains that interrupt the otherwise moderately flat valley floor.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several areas around Cartago present favorable topographical conditions: The relatively flat portions of the Central Valley to the west and northwest of Cartago offer ideal terrain for solar farms. These areas combine favorable elevation with minimal slope, reducing installation complexity and maximizing exposure to solar radiation. The gently rolling terrain in these sections provides natural drainage while not being steep enough to complicate construction or maintenance. The lower southern slopes of the Central Volcanic Range, particularly in the transition zones between Cartago and the mountains, present moderately sloped areas that receive abundant solar exposure. While requiring some terracing or specialized mounting, these areas benefit from reduced fog compared to valley floors. The eastern approaches to Cartago, where the Central Valley begins to open toward the Caribbean lowlands, feature gradually descending terrain that maintains good solar exposure while offering larger continuous land parcels that might be suitable for industrial-scale installations.

Topographical Challenges

Not all areas around Cartago are suitable for solar development. The steeper slopes of both the Irazú Volcano and the Talamanca Mountains present significant challenges for large-scale installations, including difficult access, potential shading from adjacent ridges, and increased exposure to landslides during the rainy season. The deeply incised river valleys, particularly along the Reventazón River system, create irregular terrain with variable aspects and potential shading issues that would complicate solar array placement and reduce overall efficiency. Additionally, certain low-lying areas within the valley experience morning fog patterns that could temporarily reduce solar generation capacity, though these typically clear by mid-morning. The optimal sites combine moderate elevation (to reduce fog exposure), minimal slope (ideally less than 10 degrees), southerly aspect (for northern hemisphere solar optimization), and proximity to existing transmission infrastructure that connects to Costa Rica's electrical grid.
