Matina, Limón Province, Costa Rica presents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates 10.0729°N, -83.2921°W, this region benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than the dramatic temperature variations found in temperate climates.

Solar Energy Production Potential

The solar energy output data for Matina demonstrates remarkably consistent performance across all seasons. Summer produces 4.72 kWh per day per kW of installed solar capacity, while autumn generates 4.75 kWh/day per kW. Winter performance increases slightly to 4.80 kWh/day per kW, and spring shows the highest output at 5.21 kWh/day per kW of installed solar. Spring emerges as the ideal time of year for solar generation at this location, producing approximately 10% more energy than the lowest-performing season. However, the relatively small variation between seasons—less than 0.5 kWh difference between most seasons—indicates that solar panels will provide reliable, consistent energy production throughout the entire year. For optimal performance, solar panels should be installed at a fixed tilt angle of 10 degrees facing south. This angle has been calculated to maximize total year-round production by accounting for the sun's elevation angles at this latitude, daily optimal panel positioning, and weighting these factors against actual solar irradiance data throughout the year.

Environmental and Weather Challenges

Despite the excellent solar potential, several environmental factors in Matina could impact solar energy production. The tropical climate brings significant challenges that require careful consideration during installation and maintenance. Heavy Rainfall and Wet Season Costa Rica's wet season typically brings intense rainfall that can reduce solar output due to cloud cover and can affect panel cleanliness. Extended periods of heavy rain may also create humidity-related issues with electrical connections if not properly sealed. High Humidity and Corrosion The consistently high humidity levels in tropical coastal regions can accelerate corrosion of metal components, particularly aluminum frames and mounting hardware. This can compromise structural integrity and electrical connections over time. Dust and Debris Accumulation During dry periods, dust accumulation on panels can significantly reduce efficiency. Additionally, the lush tropical vegetation means falling leaves, pollen, and organic debris can regularly coat solar panels.

Preventative Measures for Optimal Performance

Several installation and maintenance strategies can help maximize solar energy production in Matina's tropical environment:

• Marine-grade materials: Use corrosion-resistant mounting systems and hardware specifically rated for high-humidity coastal environments
• Enhanced sealing: Ensure all electrical connections use waterproof enclosures and marine-grade sealants to prevent moisture infiltration
• Regular cleaning schedule: Implement frequent panel cleaning, particularly during dry seasons when dust accumulation is highest
• Proper drainage: Design mounting systems with adequate drainage to prevent water pooling around equipment
• Vegetation management: Maintain clear zones around installations to prevent shading from rapidly growing tropical plants

Overall Assessment

Despite these environmental challenges, Matina represents a highly favorable location for solar energy generation. The consistent year-round production levels and relatively high daily output make it an ideal candidate for solar installations. With proper planning and the implementation of appropriate preventative measures, solar PV systems can operate efficiently and reliably in this tropical environment while delivering excellent energy returns throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 27 locations across Costa Rica. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Costa Rica by location

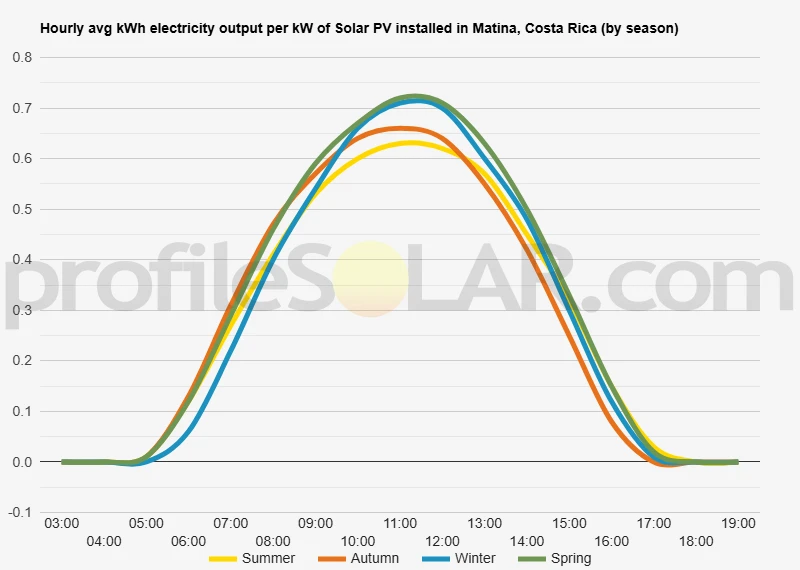

Solar output per kW of installed solar PV by season in Matina

Seasonal solar PV output for Latitude: 10.0729, Longitude: -83.2921 (Matina, Costa Rica), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Matina, Costa Rica

To maximize your solar PV system's energy output in Matina, Costa Rica (Lat/Long 10.0729, -83.2921) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Matina, Costa Rica

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Matina, Costa Rica. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	15° South in Autumn	25° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Matina, Costa Rica

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Matina, Costa Rica.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Matina, Costa Rica

Topographical Features of the Matina Region

The area around Matina in Costa Rica presents a distinctive topographical landscape characterized by relatively flat coastal plains that gradually transition into rolling hills and eventually steeper terrain as one moves inland from the Caribbean coast. This region sits within the Atlantic lowlands of Costa Rica, where the topography is generally favorable for large-scale development projects due to its gentle gradients and accessible terrain. The immediate vicinity of Matina features expansive flat to gently undulating plains that extend westward from the Caribbean coastline. These coastal plains are part of the broader Limón Province lowlands, which were formed by sedimentary deposits from rivers flowing down from the central mountain ranges. The elevation in the immediate Matina area remains quite low, typically ranging from sea level to approximately 100 meters above sea level within a 10-kilometer radius of the town center. Moving further inland from Matina, the landscape begins to show more pronounced topographical variation. The terrain gradually rises as it approaches the foothills of Costa Rica's central mountain ranges, including the distant Cordillera de Talamanca to the south and the Cordillera Central to the northwest. This transition zone features gentle slopes and rolling hills that create natural drainage patterns flowing toward the Caribbean Sea.

Drainage and Water Features

The region is characterized by numerous rivers and waterways that flow eastward toward the Caribbean coast. These waterways have carved shallow valleys and created natural flood plains throughout the area. The Matina River itself flows through the region, along with several smaller tributaries that create a network of water features across the landscape. The presence of these water features has resulted in areas of varying elevation and some wetland zones, particularly closer to the coast where tidal influences can affect water levels. However, much of the terrain between these waterways consists of well-drained higher ground that remains relatively stable throughout different seasonal conditions.

Optimal Areas for Large-Scale Solar Development

The most suitable areas for large-scale solar photovoltaic installations around Matina would be the elevated plains and gentle slopes located approximately 5 to 15 kilometers inland from the immediate coastal zone. These areas offer several topographical advantages including stable, well-drained soils and minimal flooding risk while maintaining relatively flat terrain that minimizes construction and installation challenges. The rolling hills further inland, particularly those with south-facing slopes, present excellent opportunities for solar development due to their optimal orientation and elevation above the coastal plain. These slightly elevated positions also benefit from improved air circulation, which can help maintain optimal operating temperatures for solar equipment. Areas to avoid for large-scale solar installations include the immediate coastal plains within 3 kilometers of the shore, where the combination of flat topography and proximity to waterways creates higher risks of seasonal flooding. Additionally, the steeper terrain found at greater distances inland, while offering good solar exposure, would present significant challenges for large-scale installation due to the increased complexity and cost of construction on sloped surfaces. The transitional zone between the flat coastal plains and the steeper inland hills represents the optimal compromise, offering stable, accessible terrain with good drainage characteristics and sufficient elevation to minimize weather-related risks while maintaining the relatively gentle gradients necessary for efficient large-scale solar array installation and maintenance access.
