Paso Canoas, Puntarenas Province, Costa Rica presents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropical zone at coordinates 8.5542°N, -82.8796°W, this area benefits from the consistent sunlight characteristic of tropical regions, where seasonal variations are primarily defined by wet and dry periods rather than dramatic changes in daylight hours.

Solar Energy Production Potential

The solar energy output data for Paso Canoas demonstrates excellent year-round performance, with seasonal variations that actually favor the traditionally cooler months. During summer months, solar panels can be expected to generate 4.72 kWh per day per kW of installed capacity, while autumn shows a slight improvement at 4.78 kWh per day per kW. The most productive periods occur during winter and spring, when solar panels can generate 5.41 kWh and 5.50 kWh per day per kW respectively. This seasonal pattern makes spring the optimal time for solar energy generation at this location, followed closely by winter months. For maximum year-round energy production, fixed solar panel installations at Paso Canoas should be tilted at an angle of 9 degrees toward the south. This relatively shallow angle reflects the location's proximity to the equator and has been calculated to optimize total annual solar output.

Environmental and Weather Challenges

Several significant environmental factors could potentially impact solar energy production at Paso Canoas, Puntarenas Province, primarily related to its tropical climate and geographical characteristics. The most substantial challenge is the high humidity and frequent rainfall during wet seasons, which can reduce solar panel efficiency and create maintenance issues. Heavy tropical downpours can deposit dirt, debris, and organic matter on panel surfaces, significantly reducing their ability to capture sunlight effectively. Costa Rica's location near active volcanic regions means that occasional volcanic ash fallout could coat solar panels, dramatically reducing their efficiency. Additionally, the tropical environment supports rapid vegetation growth, which could create shading issues if not properly managed during installation planning. The high humidity levels characteristic of tropical climates can also accelerate corrosion of metal components and electrical connections, potentially reducing system lifespan and efficiency over time.

Preventative Measures for Optimal Performance

Several strategic measures can help maximize solar energy production and system longevity at this location:

• Install panels with adequate spacing and mounting height to ensure proper air circulation and cooling
• Implement regular cleaning schedules, particularly during and after wet seasons
• Use marine-grade or tropical-rated components that resist corrosion and humidity damage
• Design installations with steeper mounting angles than the optimal 9 degrees to promote self-cleaning during rainfall
• Clear vegetation regularly around installations to prevent shading and maintain access for maintenance

Installing monitoring systems can help detect efficiency drops quickly, allowing for prompt maintenance responses. Proper drainage around ground-mounted systems is essential to prevent water accumulation and potential electrical issues. Despite these challenges, Paso Canoas remains an excellent location for solar energy generation, with the consistent tropical sunlight and favorable seasonal production patterns far outweighing the environmental obstacles when proper installation and maintenance practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 27 locations across Costa Rica. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Costa Rica by location

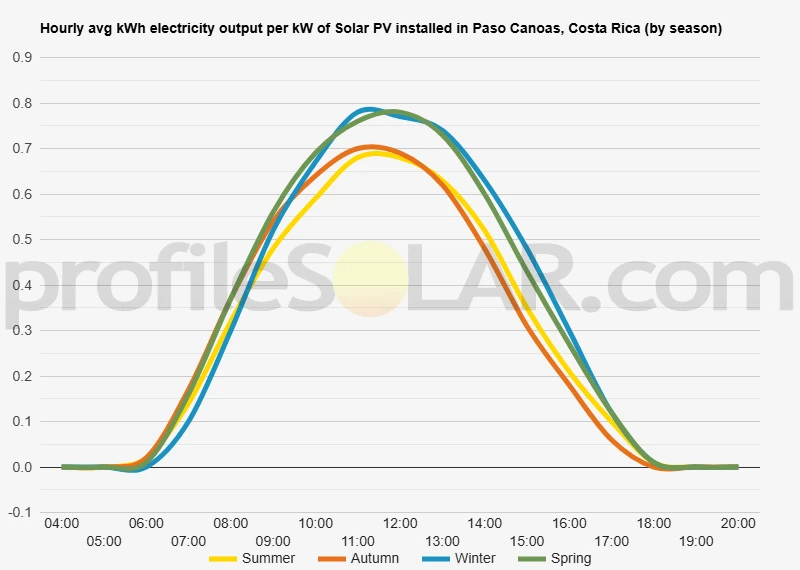

Solar output per kW of installed solar PV by season in Paso Canoas

Seasonal solar PV output for Latitude: 8.5542, Longitude: -82.8796 (Paso Canoas, Costa Rica), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 9° South in Paso Canoas, Costa Rica

To maximize your solar PV system's energy output in Paso Canoas, Costa Rica (Lat/Long 8.5542, -82.8796) throughout the year, you should tilt your panels at an angle of 9° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Paso Canoas, Costa Rica

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Paso Canoas, Costa Rica. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 9° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	14° South in Autumn	24° South in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Paso Canoas, Costa Rica

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Paso Canoas, Costa Rica.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Paso Canoas, Costa Rica

Topographical Features of Paso Canoas

Paso Canoas sits in the southern region of Costa Rica, positioned along the border with Panama in what is known as the Brunca region. The area is characterized by relatively low-lying terrain compared to the dramatic mountain ranges found elsewhere in Costa Rica. The topography here consists primarily of gentle rolling hills and broad valleys, with elevations typically ranging from about 50 to 200 meters above sea level. The landscape around Paso Canoas forms part of the Pacific coastal lowlands that extend inland from the ocean. This region features a mix of agricultural plains, scattered low hills, and river valleys carved by tributaries of the Sixaola and Coto rivers. The terrain is generally well-drained, though some areas experience seasonal flooding during the intense rainy periods that characterize this tropical climate zone. The soil composition in this area consists largely of alluvial deposits and weathered volcanic materials, creating relatively fertile conditions that have attracted extensive agricultural development. Palm oil plantations, banana farms, and cattle ranching operations dominate much of the landscape, indicating that the land has been significantly modified from its original forested state.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Paso Canoas would be the broad, relatively flat agricultural plains that extend northeast and southeast of the town center. These areas offer several key advantages for solar development, including minimal topographical obstacles, existing infrastructure access, and large contiguous parcels of land. The gently sloping hillsides with southern exposure present another excellent opportunity for solar installations. These elevated positions provide natural drainage while maintaining optimal solar orientation. The moderate slopes, typically ranging from 2 to 8 degrees, are ideal for solar panel mounting systems and can actually enhance energy production by providing better solar angles throughout the day. Areas currently used for cattle grazing represent particularly attractive sites for solar development, as the land use transition would be relatively straightforward from an environmental and regulatory perspective. These pasturelands often feature minimal tree cover and established road access, reducing both development costs and environmental impact concerns. The river valleys should generally be avoided for solar installations due to their susceptibility to flooding and higher humidity levels, which can affect equipment performance and longevity. Similarly, the steeper hillsides to the north and west present challenges for construction and maintenance access, making them less economically viable for large-scale solar projects. Transportation infrastructure plays a crucial role in site selection, and areas within reasonable proximity to the Pan-American Highway corridor offer significant advantages for equipment delivery and ongoing maintenance operations. The existing electrical grid infrastructure, developed to support the region's agricultural operations, provides additional connectivity options for solar projects seeking grid integration.
