Puntarenas, Costa Rica presents an excellent location for year-round solar energy generation, with consistently strong solar output throughout all seasons due to its tropical latitude of 9.9819°N, 84.835°W.

Solar Energy Production Potential

The solar energy output at this location demonstrates remarkable consistency across the year. During summer months, solar panels can be expected to generate 5.32 kWh per day for each kW of installed capacity. Autumn production drops slightly to 5.14 kWh/day per kW, making it the lowest production season of the year. Winter brings improved conditions with 5.98 kWh/day per kW, while spring offers the peak solar generation period at 6.27 kWh/day per kW of installed solar capacity. This seasonal variation of less than 1.2 kWh between the best and worst performing seasons indicates exceptional year-round reliability for solar energy production. For optimal energy capture throughout the year, solar panels should be installed at a fixed tilt angle of 10 degrees facing south. This angle maximizes total annual production by accounting for the sun's path across the sky and seasonal variations in solar elevation.

Environmental and Weather Challenges

Despite the excellent solar potential, several local factors in Puntarenas could impact solar energy production and require careful consideration during installation. The coastal location brings high humidity and salt air exposure, which can accelerate corrosion of solar panel frames, mounting hardware, and electrical connections. Salt buildup on panel surfaces can also reduce light transmission and decrease energy output over time. As a tropical location, Puntarenas experiences distinct wet and dry seasons rather than traditional four-season weather patterns. Heavy rainfall during wet seasons can temporarily reduce solar output, while accumulated dust and debris during dry periods may coat panels and diminish their efficiency. The combination of high temperatures and humidity creates challenging conditions for both solar panels and electronic components, potentially reducing their lifespan and efficiency if not properly managed.

Preventative Installation Measures

Several protective measures can significantly improve solar system performance and longevity in Puntarenas:

• Install panels with corrosion-resistant aluminum frames and stainless steel mounting hardware specifically rated for marine environments
• Use electrical components with enhanced weatherproof ratings and apply protective coatings to prevent salt air damage
• Design mounting systems with adequate spacing between panels and roof surfaces to promote air circulation and cooling
• Install panels at sufficient tilt angles to promote natural rainwater washing and debris removal
• Establish regular cleaning schedules, particularly during dry seasons when dust accumulation is highest

Proper system design should also include inverters and electrical equipment housed in well-ventilated, weatherproof enclosures to protect against humidity and temperature extremes. Regular maintenance inspections can identify early signs of corrosion or performance degradation before they significantly impact energy production. With appropriate equipment selection and installation techniques, solar systems in Puntarenas can take full advantage of the location's excellent solar resource while successfully managing the challenges posed by the coastal tropical environment.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 27 locations across Costa Rica. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Costa Rica by location

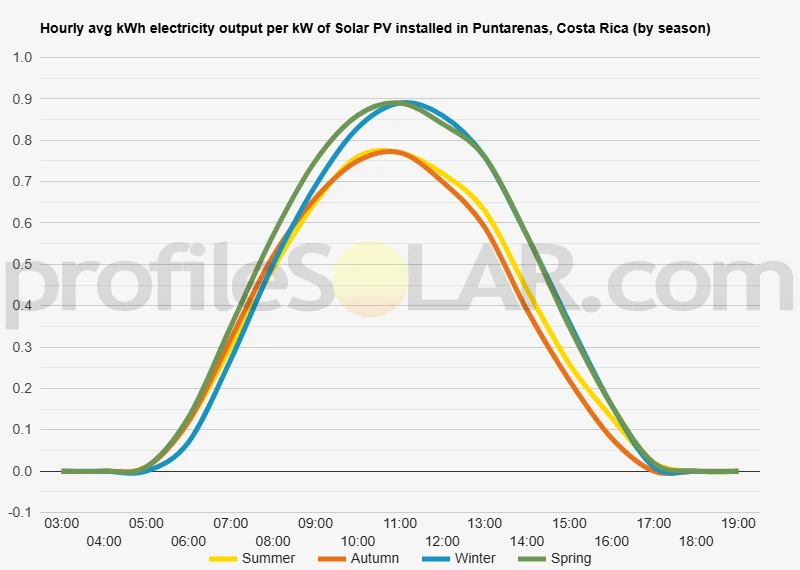

Solar output per kW of installed solar PV by season in Puntarenas

Seasonal solar PV output for Latitude: 9.9819, Longitude: -84.835 (Puntarenas, Costa Rica), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Puntarenas, Costa Rica

To maximize your solar PV system's energy output in Puntarenas, Costa Rica (Lat/Long 9.9819, -84.835) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Puntarenas, Costa Rica

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Puntarenas, Costa Rica. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	25° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Puntarenas, Costa Rica

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Puntarenas, Costa Rica.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Puntarenas, Costa Rica

Topographical Features of Puntarenas

Puntarenas sits on Costa Rica's central Pacific coast, positioned on a narrow sandy peninsula that extends into the Gulf of Nicoya. The city itself occupies relatively flat terrain at sea level, with the peninsula measuring only a few hundred meters wide at its narrowest points. This coastal location provides an unobstructed southern exposure to the Pacific Ocean, while the Gulf of Nicoya stretches to the north and east. The immediate surrounding landscape consists of low-lying coastal plains that gradually transition into rolling hills as one moves inland toward the east. These plains extend for several kilometers before encountering the foothills of Costa Rica's central mountain ranges. The terrain remains predominantly flat to gently undulating within a 20-kilometer radius of Puntarenas, making it generally suitable for large-scale development projects.

Regional Elevation Changes

Moving eastward from Puntarenas, the elevation begins to rise more noticeably as the landscape approaches the Cordillera de Tilarán and the broader Central Valley region. The coastal plains give way to increasingly hilly terrain, with elevations reaching several hundred meters above sea level within 30-40 kilometers of the coast. This gradual elevation change creates natural drainage patterns that flow westward toward the Pacific Ocean. The Gulf of Nicoya itself represents a significant geographical feature, with numerous small islands and peninsulas creating a complex coastal environment. The gulf's eastern shores feature similar low-lying topography, though with more pronounced river valleys and wetland areas compared to the Puntarenas peninsula.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found in the flat to gently rolling coastal plains extending eastward from Puntarenas. These areas offer several advantages including minimal grading requirements, good accessibility for construction and maintenance, and proximity to existing electrical infrastructure serving the Puntarenas region. The agricultural lands lying between Puntarenas and the inland communities of Esparza and San Mateo present particularly favorable conditions. This zone features relatively level terrain with good drainage, established road networks, and sufficient distance from sensitive coastal ecosystems. The slightly elevated inland areas also benefit from reduced salt air exposure compared to immediate coastal locations. Areas to the northeast of Puntarenas, toward the town of Montes de Oro, offer additional potential sites where the topography remains manageable while providing good southern exposure. These locations would require careful consideration of existing agricultural use and local community needs, but the physical characteristics support large-scale solar development. The flat coastal plains south of Puntarenas, extending toward Jacó, also present viable options, though developers would need to consider environmental regulations related to coastal zone management and potential impacts on local ecosystems. These areas benefit from excellent solar exposure and minimal topographical constraints.
