Solar Energy Potential in Quesada, Alajuela Province, Costa Rica

Quesada, Alajuela Province, Costa Rica, located at 10.328, -84.4099 in the tropical region, presents a promising location for solar energy production throughout the year. This area benefits from the tropical climate where sunlight remains relatively consistent, with seasons primarily distinguished by wet and dry periods rather than significant temperature variations. The solar energy generation potential in Quesada shows remarkable consistency across meteorological seasons. During summer, solar panels can generate approximately 4.73 kWh per day for each kilowatt installed. Autumn production is nearly identical at 4.72 kWh/day per kW. Winter brings a slight increase to 4.98 kWh/day per kW, while spring offers the peak production at 5.38 kWh/day per kW.

Optimal Panel Installation

For fixed solar panel installations in Quesada, Alajuela Province, the ideal tilt angle to maximize year-round energy production is 10 degrees facing South. This specific angle has been calculated to optimize solar collection throughout the year, accounting for the location's proximity to the equator and the sun's position across seasons. Spring emerges as the most productive season for solar generation in this location, with winter following as the second most productive period. The relatively minor variation between seasons demonstrates Quesada's favorable position for consistent solar energy production throughout the year.

Environmental Considerations

Despite the favorable solar conditions, several environmental factors may impact solar production in Quesada:

• Heavy rainfall during the wet season (typically May to November) can reduce solar efficiency due to cloud cover and direct precipitation on panels
• Occasional volcanic ash from nearby volcanoes might accumulate on panels, reducing their effectiveness
• High humidity levels can contribute to faster degradation of equipment if not properly protected
• Potential for tropical storms that could physically damage installations

Preventative Measures

To mitigate these challenges, several preventative measures can be implemented: Installing panels at the recommended 10-degree tilt helps with natural cleaning during rainfall. Additionally, using quality waterproof components with high IP ratings (IP65 or higher) protects against moisture intrusion. Regular maintenance schedules should include cleaning to remove any volcanic ash deposits or other debris. For areas prone to stronger winds, reinforced mounting systems designed to withstand tropical storm conditions are advisable. Finally, incorporating micro-inverters or power optimizers can help minimize production losses during partial shading from cloud cover, ensuring the system remains productive even during the wet season. With these considerations addressed, Quesada's consistent solar radiation throughout the year makes it an excellent location for solar PV installations with reliable energy production across all seasons.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 27 locations across Costa Rica. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Costa Rica by location

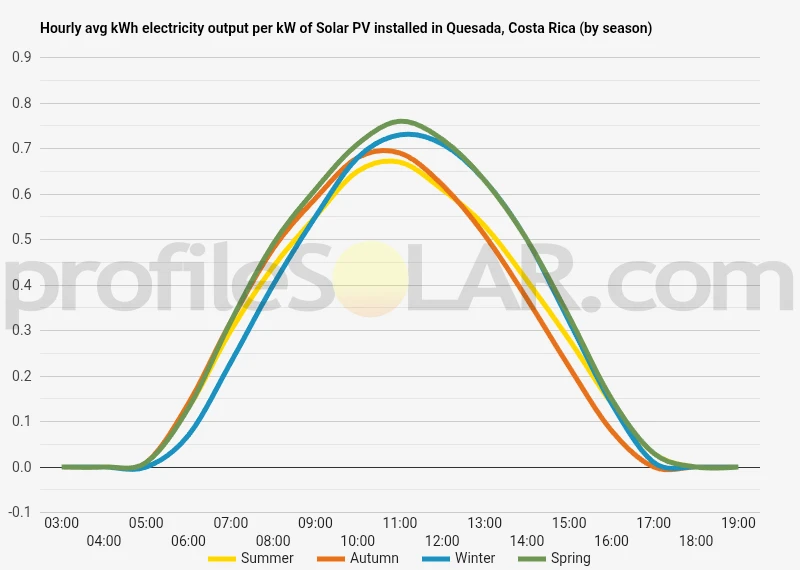

Solar output per kW of installed solar PV by season in Quesada

Seasonal solar PV output for Latitude: 10.328, Longitude: -84.4099 (Quesada, Costa Rica), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Quesada, Costa Rica

To maximize your solar PV system's energy output in Quesada, Costa Rica (Lat/Long 10.328, -84.4099) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Quesada, Costa Rica

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Quesada, Costa Rica. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	26° South in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Quesada, Costa Rica

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Quesada, Costa Rica.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Quesada, Costa Rica

The topography around Quesada, Costa Rica, also known as Ciudad Quesada, is characterized by varied and dramatic terrain typical of the northern regions of Costa Rica. The area sits in the province of Alajuela, nestled within the northern plains and foothills that eventually rise to meet the Cordillera Central mountain range. The landscape features a mix of rolling hills, valleys, and more pronounced elevations as one moves toward the volcanic mountain chains that define much of Costa Rica's spine. Quesada itself sits at an elevation of approximately 650 meters (2,130 feet) above sea level, in what could be described as a transitional zone between the northern lowlands and the higher mountain regions. The surrounding terrain gradually slopes upward toward the south and southeast, where the imposing presence of the Arenal Volcano and its neighboring peaks dominate the horizon. To the north, the land gradually descends toward the San Carlos plains, creating a gentler topography characterized by undulating hills and agricultural lands.

Water Features and Natural Landmarks

The region is blessed with abundant water resources, with numerous rivers and streams carving through the landscape. The Río San Carlos and its tributaries are prominent water features in the area, contributing to the lush vegetation and agricultural productivity. These waterways have, over millennia, shaped valleys and created natural drainage systems throughout the region. The varied topography creates distinct microclimates within relatively short distances. The higher elevations experience cooler temperatures and different rainfall patterns compared to the lower-lying areas. This climatic diversity has contributed to the rich biodiversity for which Costa Rica is renowned.

Potential Areas for Solar PV Development

When considering areas near Quesada that might be suitable for large-scale solar photovoltaic (PV) installations, several factors related to topography come into play. The most favorable locations would generally be: The northern and northeastern lowlands extending from Quesada toward the border with Nicaragua offer some of the most promising terrain for large-scale solar installations. These areas feature more consistent elevations with gentler slopes, reducing construction challenges and costs associated with building on irregular terrain. The San Carlos plains, in particular, combine favorable topography with relatively large, contiguous land parcels that could accommodate industrial-scale solar farms. Areas to the northwest of Quesada, toward places like Florencia and Aguas Zarcas, present moderately rolling terrain that could still be suitable for solar development. While some grading might be necessary, these locations maintain reasonable proximity to existing infrastructure while offering the space needed for extensive panel arrays. The eastern approaches toward Pital and La Palmera feature agricultural lands with modest topographical variation. These areas benefit from being somewhat sheltered from the extreme weather conditions that can affect higher elevations, while still providing the open space necessary for significant solar installations.

Topographical Challenges

It's worth noting that the more mountainous terrain south and southeast of Quesada presents significant challenges for large-scale solar development. The steep slopes, irregular terrain, and dense vegetation would make construction difficult and costly. Additionally, these higher elevations are more frequently affected by cloud cover and fog, which would reduce solar generation efficiency. The immediate vicinity around Quesada itself, while moderately suitable from a purely topographical perspective, faces constraints related to existing development and land use. The urban and peri-urban areas would likely not support industrial-scale solar installations, though smaller commercial or community solar projects might find appropriate sites. The varied topography of the region means that site-specific assessments would be essential before any major solar development. Factors such as slope orientation (south-facing slopes in the Northern Hemisphere generally receive more direct sunlight), local shading from terrain features, and soil stability would all need careful evaluation alongside the broader topographical considerations.
