San Rafael, Cartago Province, Costa Rica represents an excellent location for year-round solar energy generation, benefiting from its tropical climate where consistent sunlight is available throughout most of the year with seasons characterized more by wet and dry periods than temperature variations.

Solar Energy Production Performance

The solar energy output data for San Rafael demonstrates remarkably consistent performance across all seasons. Spring emerges as the most productive period, generating 5.16 kWh per day per kW of installed solar capacity, closely followed by winter at 5.06 kWh per day per kW. Summer and autumn show slightly lower but still strong production at 4.75 and 4.70 kWh per day per kW respectively. This relatively small variation between seasons - only about 10% difference between the highest and lowest producing periods - makes San Rafael an ideal location for solar installations. The consistently high output means that solar panels will generate substantial electricity throughout the entire year, providing reliable renewable energy regardless of the season.

Optimal Panel Installation

For fixed panel installations at San Rafael, Cartago Province, the ideal angle to tilt solar panels is 10 degrees facing South to maximize total year-round production. This relatively shallow angle is typical for locations close to the equator, where the sun maintains a high position in the sky throughout the year.

Environmental and Weather Challenges

Several environmental factors in San Rafael could potentially impact solar energy production, though most can be effectively managed with proper installation practices:

• Heavy rainfall during wet season: Costa Rica's tropical climate brings intense rainfall periods that can reduce solar irradiance and create standing water issues
• High humidity levels: Persistent moisture in the air can lead to corrosion of electrical components and reduced panel efficiency
• Dust and debris accumulation: Tropical vegetation and weather patterns can deposit organic matter on panel surfaces
• Potential for severe weather: Tropical storms and high winds may pose structural risks to solar installations

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these environmental challenges, several installation strategies should be implemented: Proper drainage systems around solar installations are essential to prevent water accumulation during heavy rains. Panels should be mounted with adequate spacing to allow air circulation, which helps reduce moisture buildup and prevents overheating that can decrease efficiency. Regular cleaning schedules become particularly important in this tropical environment. Installing panels at the recommended 10-degree tilt naturally helps with self-cleaning during rainfall, but periodic manual cleaning may still be necessary to remove stubborn debris and organic matter. Using marine-grade or tropical-rated electrical components and wiring helps combat the corrosive effects of high humidity. All electrical connections should be properly sealed and protected from moisture infiltration. Structural considerations are crucial given the potential for severe weather. Solar mounting systems should be engineered to withstand high wind loads typical of tropical storm conditions, with proper anchoring and reinforcement of support structures. Despite these environmental considerations, San Rafael's consistently high solar energy output throughout all seasons makes it an exceptionally favorable location for solar PV installations, with the benefits far outweighing the manageable challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 27 locations across Costa Rica. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Costa Rica by location

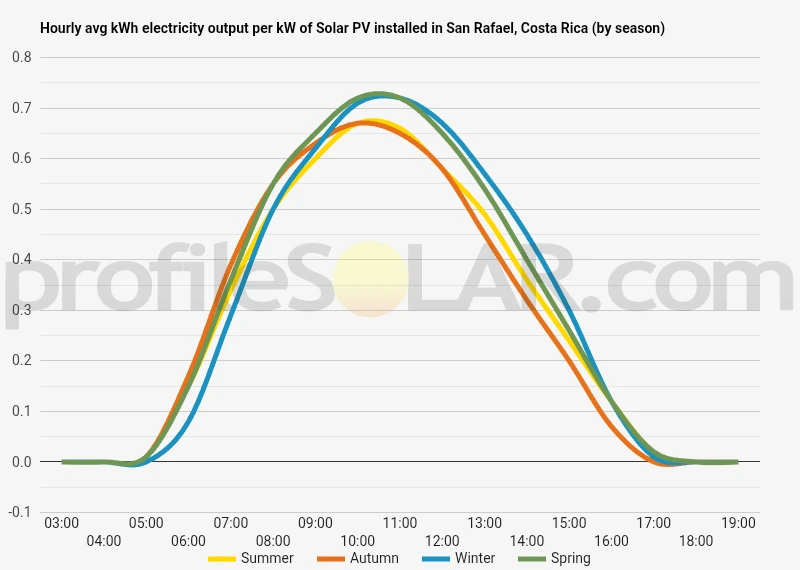

Solar output per kW of installed solar PV by season in San Rafael

Seasonal solar PV output for Latitude: 9.8703, Longitude: -83.9018 (San Rafael, Costa Rica), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in San Rafael, Costa Rica

To maximize your solar PV system's energy output in San Rafael, Costa Rica (Lat/Long 9.8703, -83.9018) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Rafael, Costa Rica

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Rafael, Costa Rica. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	25° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Rafael, Costa Rica

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Rafael, Costa Rica.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Rafael, Costa Rica

Topography Around San Rafael, Costa Rica

San Rafael is situated in the heart of Costa Rica's Central Valley, positioned within the province of Heredia at an elevation of approximately 1,200 meters above sea level. This location places it on the slopes of the Central Volcanic Mountain Range, creating a landscape characterized by rolling hills, gentle slopes, and volcanic terrain that has been shaped over millennia by geological activity. The immediate area around San Rafael features undulating topography with moderate gradients, typical of the Central Valley's transitional zone between the valley floor and the mountainous regions above. The terrain consists primarily of volcanic soils deposited from nearby volcanic peaks, creating fertile lands that have traditionally supported agriculture. These slopes generally face multiple directions, with many areas offering southern and western exposures that receive consistent solar radiation throughout the day. The region experiences a subtropical highland climate due to its elevation, with the topography contributing to relatively stable weather patterns. The rolling hills and moderate slopes provide natural drainage, reducing the likelihood of flooding while maintaining good soil stability. The landscape is interspersed with small valleys and ridgelines that create microclimates and varying exposure angles to the sun.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around San Rafael would be the gently sloping hillsides with southern and southwestern orientations. These areas offer the ideal combination of consistent solar exposure and manageable terrain for construction and maintenance activities. The moderate slopes, typically ranging from 5 to 15 degrees, provide excellent conditions for solar panel installation while allowing for proper drainage and accessibility. Agricultural areas on the broader, more level sections of the hillsides present particularly attractive opportunities for solar development. These locations often feature cleared land with established access roads and existing electrical infrastructure connections to nearby communities. The volcanic soils in these areas provide stable foundations for solar mounting systems while the gentle topography minimizes the need for extensive grading or earthwork. The ridgelines and elevated plateaus surrounding San Rafael offer another category of prime solar real estate. These locations benefit from minimal shading from surrounding terrain and typically experience consistent air circulation that helps maintain optimal panel temperatures. The elevated positions also often provide easier access to transmission infrastructure and reduce potential conflicts with agricultural or residential land uses. Areas with western-facing slopes deserve particular consideration for solar development, as they can capture afternoon solar radiation when electrical demand typically peaks. The rolling terrain in these locations often provides natural windbreaks while maintaining excellent solar access. Additionally, many of these western-facing areas have been previously cleared for agricultural purposes, reducing environmental impact and development costs. The transition zones between the steeper mountain slopes and the flatter valley areas offer an ideal compromise between solar access and development practicality. These locations typically feature stable geology, moderate slopes suitable for solar installations, and proximity to existing infrastructure while avoiding the more environmentally sensitive steep mountain terrain and the more densely populated valley floor areas.
