Santa Ana, Provincia de San José, Costa Rica represents an excellent location for year-round solar photovoltaic energy generation. This tropical location at coordinates 9.9323°N, -84.1815°W benefits from consistent sunlight throughout the year, with seasonal variations driven more by wet and dry periods than by the dramatic daylight changes seen in temperate regions.

Solar Energy Production Potential

The solar energy output at Santa Ana demonstrates remarkably consistent performance across all seasons. During summer months, solar panels can be expected to generate 5.32 kWh per day for each kilowatt of installed capacity. Autumn production drops slightly to 5.14 kWh per day per kW, making it the lowest production period of the year. Winter and spring emerge as the peak solar generation seasons at this location. Winter production increases to 5.98 kWh per day per kW, while spring delivers the highest output at 6.27 kWh per day per kW of installed solar capacity. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 10 degrees facing south. This angle maximizes total annual energy production by accounting for the sun's path throughout the year and the location's proximity to the equator.

Environmental and Weather Challenges

Several local factors can significantly impact solar energy production in Santa Ana and require careful consideration during installation planning. The tropical climate brings intense seasonal rainfall, particularly during the wet season from May through November. Heavy rains can reduce solar irradiance and create persistent cloud cover that diminishes energy output. Additionally, frequent rainfall can lead to rapid accumulation of dirt, dust, and organic debris on solar panels, further reducing their efficiency. Costa Rica's location near active volcanic regions means that volcanic ash can occasionally affect the area. When volcanic activity occurs, ash particles can settle on solar panels, creating a film that blocks sunlight and reduces energy generation. The high humidity and warm temperatures create ideal conditions for biological growth. Moss, algae, and other organic matter can develop on panel surfaces, especially in shaded areas or where moisture tends to accumulate.

Preventative Measures for Optimal Performance

Several installation strategies can help maintain high solar energy production despite these environmental challenges:

• Install panels with adequate tilt and spacing to promote natural cleaning from rainfall and prevent water pooling
• Implement regular cleaning schedules, particularly during dry periods when natural washing from rain is reduced
• Use anti-soiling coatings on panel surfaces to reduce dirt and organic matter adhesion
• Design mounting systems with proper drainage to prevent water accumulation around panel edges
• Plan for emergency cleaning protocols during volcanic ash events

Regular maintenance becomes particularly important in this tropical environment. Monthly visual inspections can identify developing issues before they significantly impact energy production. During the wet season, increased monitoring helps ensure that heavy rains are effectively cleaning panels rather than contributing to debris accumulation. The consistent solar resource and favorable tilt angle requirements make Santa Ana an attractive location for solar development, provided that proper attention is given to the unique maintenance requirements of tropical installations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 27 locations across Costa Rica. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Costa Rica by location

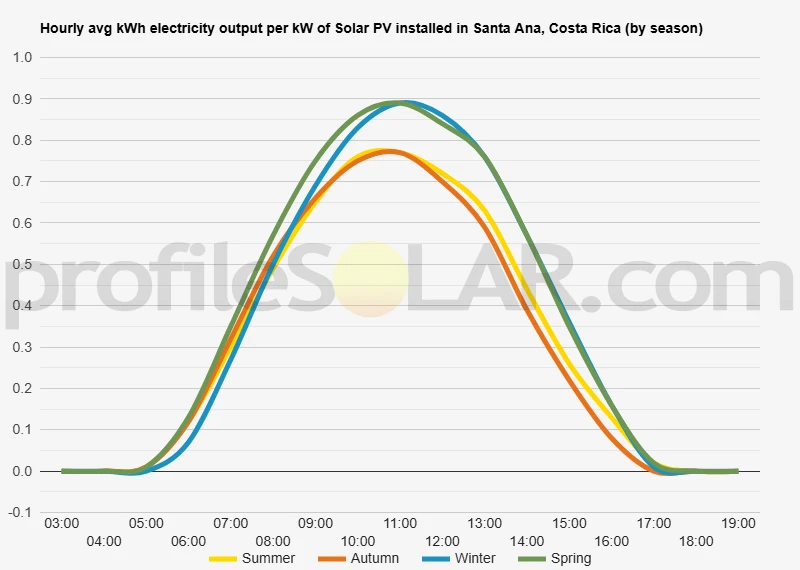

Solar output per kW of installed solar PV by season in Santa Ana

Seasonal solar PV output for Latitude: 9.9323, Longitude: -84.1815 (Santa Ana, Costa Rica), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Santa Ana, Costa Rica

To maximize your solar PV system's energy output in Santa Ana, Costa Rica (Lat/Long 9.9323, -84.1815) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santa Ana, Costa Rica

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santa Ana, Costa Rica. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	25° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santa Ana, Costa Rica

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santa Ana, Costa Rica.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santa Ana, Costa Rica

Topographical Features of Santa Ana

Santa Ana sits within the Central Valley of Costa Rica, positioned at an elevation of approximately 1,000 meters above sea level. This location places it in the heart of the country's mountainous central region, surrounded by volcanic peaks and rolling hills that define much of Costa Rica's interior landscape. The terrain around Santa Ana is characterized by gentle to moderate slopes, with the land gradually rising toward the surrounding mountain ranges. The area benefits from its position between two major mountain systems. To the north lies the Cordillera Central, which includes several prominent volcanoes, while to the south extends the Cordillera de Talamanca. This valley setting creates a natural basin that has been shaped by centuries of volcanic activity and erosion, resulting in relatively stable terrain with good drainage characteristics. The immediate vicinity of Santa Ana features undulating topography with numerous small hills and valleys. The landscape transitions from flatter areas near the valley floor to more pronounced slopes as elevation increases toward the mountain flanks. Much of the surrounding land has been historically used for agriculture, particularly coffee cultivation on the hillsides, which demonstrates the manageable nature of the terrain for development purposes.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Santa Ana would be found in the flatter portions of the Central Valley, particularly areas with gentle southern-facing slopes that maximize solar exposure throughout the day. These locations typically occur at slightly lower elevations than Santa Ana itself, where the valley floor opens up and provides larger continuous parcels of relatively level land. Areas to the west and southwest of Santa Ana present particularly favorable conditions, where the valley broadens and the topography becomes less pronounced. These zones offer the dual advantages of reduced grading requirements and lower installation costs while maintaining good accessibility for construction and maintenance activities. The terrain in these areas generally requires minimal earthwork to establish the level platforms necessary for optimal solar panel positioning. The eastern portions of the region, while still within the Central Valley, tend to feature more rolling hills that could accommodate solar installations but might require more careful site planning and potentially higher development costs. However, certain ridge lines and plateau areas in this direction could prove suitable for solar development, particularly where existing agricultural clearings have already established relatively flat surfaces. Agricultural areas that have been converted from steep coffee plantations to more level crop production represent another category of potentially suitable sites. These locations often feature improved access roads and existing infrastructure connections, which can significantly reduce the overall project development costs for large-scale solar installations. The key consideration for any large-scale solar development in this region involves balancing the topographical advantages of flatter terrain with factors such as land availability, grid connectivity, and environmental sensitivity. Areas closer to existing electrical infrastructure and transportation networks generally present the most viable options for substantial solar projects, even if minor topographical modifications are required to optimize the site conditions.
