Tilaran, Guanacaste Province, Costa Rica, located in the tropics at coordinates 10.4552°N, -84.9612°W, presents a very favorable location for year-round solar energy generation. The consistent tropical sunlight throughout most of the year makes this region well-suited for solar photovoltaic installations, with seasons characterized more by wet and dry periods rather than the dramatic temperature and daylight variations found in temperate climates.

Solar Energy Production Performance

The solar energy output at Tilaran demonstrates remarkably consistent performance across all seasons. During summer, solar panels can be expected to generate 4.74 kWh per day per kW of installed capacity. Autumn shows nearly identical performance at 4.73 kWh/day per kW, while winter increases slightly to 4.97 kWh/day per kW. Spring emerges as the most productive season, delivering 5.38 kWh per day per kW of installed solar capacity. This makes spring the ideal time for maximum solar generation at this location, though the relatively small variation between seasons means that solar panels will perform well throughout the entire year. For optimal year-round energy production, solar panels should be installed at a fixed tilt angle of 10 degrees facing south. This angle has been calculated to maximize total annual solar output by accounting for the sun's path throughout the year, daily solar elevation angles, and weighting these factors against actual solar irradiance data.

Environmental and Weather Challenges

Several significant factors could potentially impede solar production at Tilaran and require careful consideration during installation planning. The tropical climate brings intense rainfall during wet seasons, which can create multiple challenges for solar installations. Heavy rains may cause water accumulation on panels, reducing their efficiency, while the high humidity levels common in tropical regions can accelerate corrosion of metal components and electrical connections. Volcanic ash presents another notable concern in Costa Rica, as the country sits along the Pacific Ring of Fire with several active volcanoes. Ash deposits on solar panels can dramatically reduce their efficiency by blocking sunlight from reaching the photovoltaic cells. The region's lush tropical vegetation grows rapidly year-round due to consistent warmth and moisture. Trees, vines, and other plants can quickly create shading issues that significantly impact solar panel performance.

Preventative Measures and Solutions

Several effective strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate drainage systems and slight tilting to prevent water accumulation during heavy rains
• Use marine-grade or tropical-rated electrical components and connections designed to withstand high humidity and corrosive conditions
• Implement regular cleaning schedules to remove volcanic ash, dust, and organic debris from panel surfaces
• Establish comprehensive vegetation management programs including regular trimming and removal of fast-growing tropical plants
• Consider elevated mounting systems that raise panels above ground-level humidity and provide better air circulation for cooling

Regular maintenance becomes particularly crucial in this tropical environment. Monthly cleaning and quarterly professional inspections can help ensure that environmental factors don't significantly reduce the excellent solar potential that Tilaran's location offers throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 27 locations across Costa Rica. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Costa Rica by location

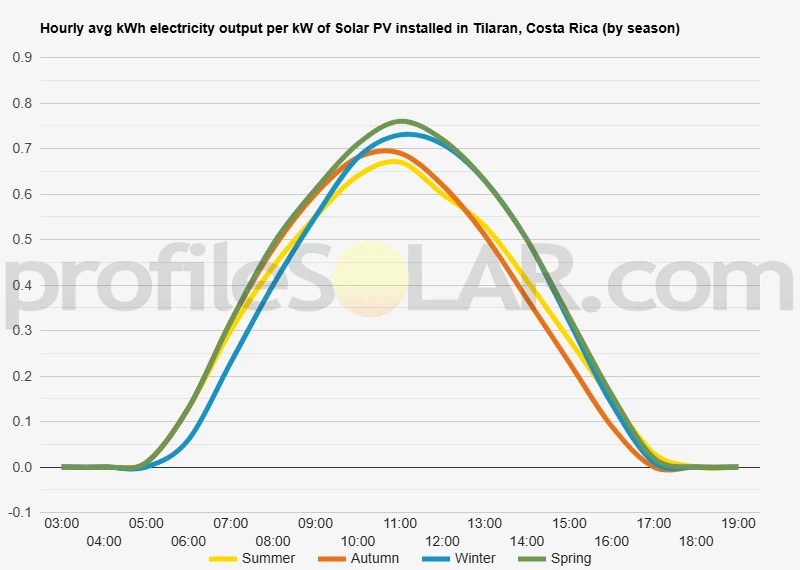

Solar output per kW of installed solar PV by season in Tilaran

Seasonal solar PV output for Latitude: 10.4552, Longitude: -84.9612 (Tilaran, Costa Rica), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Tilaran, Costa Rica

To maximize your solar PV system's energy output in Tilaran, Costa Rica (Lat/Long 10.4552, -84.9612) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tilaran, Costa Rica

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tilaran, Costa Rica. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	26° South in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tilaran, Costa Rica

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tilaran, Costa Rica.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tilaran, Costa Rica

Topographical Features of Tilaran

Tilaran sits in the Guanacaste Province of Costa Rica at an elevation of approximately 550 meters above sea level, positioned along the continental divide that separates the Pacific and Atlantic watersheds. The town is nestled within the Tilaran Mountain Range, which forms part of the larger Cordillera de Tilaran volcanic chain. This mountainous terrain creates a landscape characterized by rolling hills, steep valleys, and moderate elevation changes throughout the immediate vicinity. The region experiences a transitional climate zone where the dry Pacific lowlands meet the more humid Caribbean slopes. This positioning results in varied microclimates across relatively short distances, with the windward slopes receiving significantly more precipitation than the leeward sides. The continental divide creates distinct weather patterns, with the Pacific-facing slopes being considerably drier during certain seasons.

Terrain Characteristics and Land Use

The topography around Tilaran consists primarily of undulating hills and valleys carved by centuries of volcanic activity and erosion. The landscape features numerous ridgelines running roughly northwest to southeast, following the general orientation of the mountain range. These ridges are interspersed with valleys that often contain small streams and seasonal watercourses flowing toward either the Pacific or Atlantic drainage systems. Much of the surrounding terrain has been converted from original forest cover to agricultural uses, particularly cattle ranching and some crop cultivation. This land conversion has created extensive areas of relatively open grassland and pasture on both steep and moderate slopes. The existing land use patterns have already established access roads and infrastructure that could potentially support large-scale development projects.

Optimal Areas for Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Tilaran would be the Pacific-facing slopes and ridgetops that experience reduced cloud cover and precipitation compared to the Caribbean-facing slopes. These western and southwestern exposures benefit from clearer atmospheric conditions during the dry season and generally receive more direct solar radiation throughout the year. Particular attention should be given to the elevated plateaus and gentle slopes found at elevations between 400 and 700 meters above sea level. These areas offer several advantages including reduced atmospheric moisture, good drainage characteristics, and existing road access from agricultural activities. The moderate elevation provides a balance between accessibility for construction and maintenance while avoiding the increased cloud cover typically found at higher elevations in this mountain range. The ridgelines extending northwest and southeast of Tilaran present excellent opportunities for solar development, as these elevated positions experience enhanced wind flow that helps maintain optimal panel temperatures while avoiding the valley fog that can occur in lower-lying areas. These ridge locations also tend to have been cleared for ranching activities, reducing environmental impact concerns while providing relatively flat or gently sloping terrain suitable for large solar arrays. Areas with southern exposure on stable, well-drained slopes would be particularly advantageous, especially those with gradients between 5 and 15 degrees that can optimize solar panel positioning without requiring extensive grading or terracing. The existing network of ranch roads and agricultural infrastructure in these areas would facilitate construction access and ongoing maintenance operations for utility-scale solar installations.
