Solar PV Analysis of Kisangani, DR Congo
Kisangani, Tshopo, located in the Democratic Republic of Congo, offers a promising location for solar energy generation. Situated near the equator, this tropical city experiences consistent sunlight throughout the year, making it an attractive prospect for solar PV installations.
Year-round Solar Potential
The solar energy output at Kisangani remains relatively stable across all seasons, with only slight variations. Winter and spring show the highest production at 5.36 kWh per day for each kW of installed solar capacity. Autumn follows closely with 5.22 kWh/day, while summer sees a slight dip to 4.80 kWh/day. This consistency is advantageous for maintaining a steady energy supply throughout the year.
The minimal fluctuation in solar output between seasons is typical of equatorial regions, where the sun's path across the sky remains relatively constant. This stability allows for more predictable energy production and easier system design compared to locations with more pronounced seasonal variations.
Optimal Panel Placement
For fixed solar panel installations in Kisangani, Tshopo, the ideal tilt angle to maximize year-round production is just 1 degree South. This nearly flat orientation is due to the city's proximity to the equator, where the sun passes almost directly overhead throughout the year. This minimal tilt helps capture the most sunlight possible across all seasons.
Environmental Considerations
While Kisangani's location is generally favorable for solar energy production, there are some environmental factors to consider:
- High humidity and frequent rainfall, especially during the wet season, may lead to increased panel soiling and reduced efficiency.
- The region's tropical climate can accelerate the degradation of solar equipment, potentially shortening its lifespan.
To mitigate these challenges, installers should consider using corrosion-resistant materials, implementing regular cleaning schedules, and ensuring proper drainage systems are in place. Additionally, investing in high-quality, weather-resistant solar panels and components can help maintain optimal performance in the face of these environmental factors.
Overall, Kisangani's consistent year-round sunlight and minimal required panel tilt make it an excellent location for solar PV installations, provided that appropriate measures are taken to address the tropical climate's challenges.
Note: The Tropics are located between 23.5° North and -23.5° South of the equator.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 12 locations across DR Congo. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in DR Congo by location

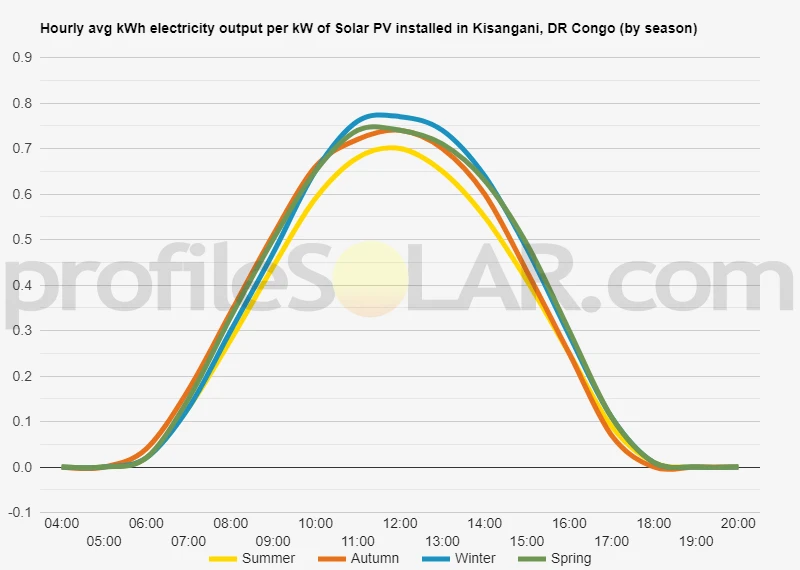

Solar output per kW of installed solar PV by season in Kisangani
Seasonal solar PV output for Latitude: 0.5053, Longitude: 25.1889 (Kisangani, DR Congo), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 1° South in Kisangani, DR Congo
To maximize your solar PV system's energy output in Kisangani, DR Congo (Lat/Long 0.5053, 25.1889) throughout the year, you should tilt your panels at an angle of 1° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Kisangani, DR Congo
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kisangani, DR Congo. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 15° North in Summer | 7° South in Autumn | 16° South in Winter | 6° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Kisangani, DR Congo
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kisangani, DR Congo.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Kisangani, DR Congo
The area around Kisangani, located in the Democratic Republic of Congo, is characterized by a diverse and lush tropical landscape. Situated near the equator, this region is part of the vast Congo Basin, which is home to one of the world's largest rainforests.
The topography of Kisangani and its surroundings is generally flat to gently rolling, with an average elevation of about 400 meters (1,300 feet) above sea level. The city itself sits on the banks of the Congo River, which is a dominant feature of the landscape. The river is wide and powerful at this point, with several islands dotting its course.
Moving away from the river, the terrain gradually rises into low hills covered in dense tropical vegetation. These hills are part of the Congo Basin's periphery and are not particularly steep or high. The area is crisscrossed by numerous smaller rivers and streams that feed into the Congo River, creating a network of waterways throughout the region.
When considering large-scale solar PV installations near Kisangani, there are several factors to take into account. The most suitable areas would likely be found in cleared spaces or natural clearings within a reasonable distance from the city. These areas should ideally be on slightly elevated ground to avoid potential flooding issues, given the region's high rainfall.
The best locations for solar PV would be open areas with minimal tree cover, as the dense rainforest that dominates much of the region would need to be cleared for such installations, which could have significant environmental impacts. Areas to the north and east of Kisangani, where the forest transitions into more open woodland or savanna, might offer more suitable conditions for large-scale solar projects.
However, it's important to note that while the region receives ample sunlight due to its equatorial location, the frequent cloud cover and high humidity typical of tropical rainforest climates could potentially reduce the efficiency of solar panels. Additionally, the remoteness of the area and the challenges in infrastructure development would need to be carefully considered when planning any large-scale solar PV projects in this region.
