Solar PV Analysis of Lodja, DR Congo
The location at Lodja, Sankuru, DR Congo is quite ideal for year-round energy generation using solar PV because it's located in the Tropics where sunlight is consistent throughout most of the year. The average daily electricity output per kW of installed solar varies slightly with seasons: 5.23kWh/day in Summer, 5.40kWh/day in Autumn, 4.87kWh/day in Winter, and 5.36kWh/day in Spring.
In terms of best times to generate solar power at this location, Autumn seems to be slightly more productive followed closely by Spring and then Summer while Winter produces a bit less comparatively due to lesser sunlight intensity.
For those installing fixed panel installations at this location, tilting panels at an angle of about 4 degrees towards North would maximise total yearly production from the solar PV system as it aligns better with the path of the sun across the sky.
However, there could be some local factors that may hinder optimal solar production here such as dust or dirt accumulation on panels which can reduce their efficiency significantly especially during dry seasons when dust levels are usually high. Also heavy rainfall during wet season might affect power generation temporarily but not significantly as sunlight is still abundant even during these periods.
To prevent these issues and ensure greater energy production from your solar installation; regular cleaning and maintenance should be carried out especially during dry season when dust accumulation could be high. Using sturdy materials that can withstand heavy rainfalls without damage would also help maintain performance during wet seasons.
It's also important to note that while we've considered average conditions here actual results might vary depending on specific local weather patterns so it’s always good idea to consult with a local expert before making any final decisions regarding your installation plans.
Note: The Tropics are located between 23.5° North and -23.5° South of the equator.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 12 locations across DR Congo. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in DR Congo by location

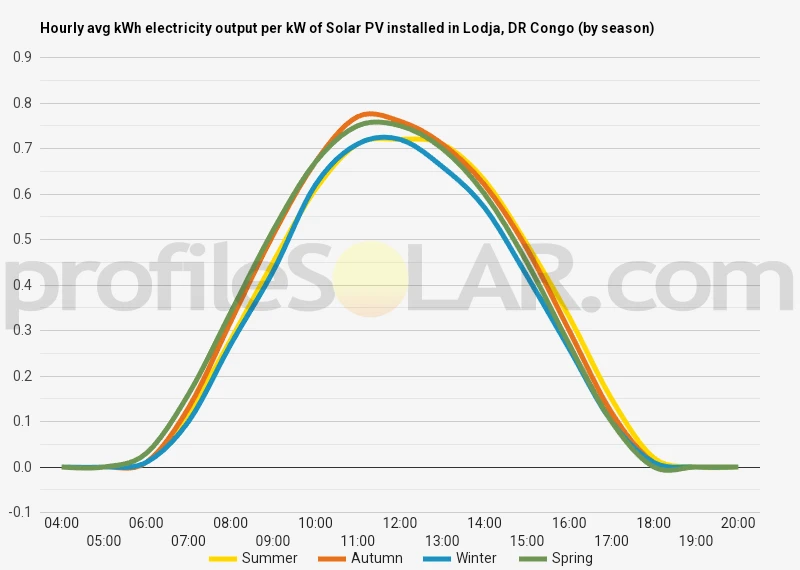

Solar output per kW of installed solar PV by season in Lodja
Seasonal solar PV output for Latitude: -3.513, Longitude: 23.6154 (Lodja, DR Congo), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 4° North in Lodja, DR Congo
To maximize your solar PV system's energy output in Lodja, DR Congo (Lat/Long -3.513, 23.6154) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Lodja, DR Congo
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lodja, DR Congo. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 12° South in Summer | 10° North in Autumn | 20° North in Winter | 3° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Lodja, DR Congo
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lodja, DR Congo.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Lodja, DR Congo
Lodja is located in the Sankuru province of the Democratic Republic of Congo. The region around Lodja is primarily composed of tropical rainforest and savannah, with a relatively flat topography interspersed with rivers and small hills.
For large-scale solar PV installations, areas that receive high levels of sunlight throughout the year are ideal. In addition, these areas should ideally have flat terrain for easier installation and maintenance, as well as proximity to power grids or population centers for efficient energy transmission.
Given these criteria, the savannah areas around Lodja could be suitable for solar PV due to their relatively flat terrain and ample sunlight. However, considerations such as land ownership rights, environmental impact (including potential deforestation), accessibility for construction materials and crews would also need to be taken into account before determining feasibility.
Furthermore, it's important to note that despite being near equator which generally receives high amounts of sunshine year-round; DR Congo experiences heavy cloud cover because it lies in a tropical rainforest zone. It will affect the effectiveness of solar panels so this factor needs consideration too.
A detailed site survey combined with local meteorological data would ultimately be necessary to identify specific locations best suited for large-scale solar PV installations in this area.
