Mbulungu, located in the Democratic Republic of Congo, presents a relatively favorable environment for solar energy production throughout the year. This tropical location experiences consistent sunlight, with seasons primarily distinguished by wet and dry periods rather than significant temperature variations.

Seasonal Solar Performance

The solar energy output at Mbulungu remains fairly stable across all seasons, with only minor fluctuations:

• Summer: 5.44 kWh/day
• Autumn: 5.68 kWh/day
• Winter: 5.26 kWh/day
• Spring: 5.59 kWh/day

These figures represent the expected daily electricity output per kilowatt of installed solar capacity.

Optimal Panel Positioning

For fixed solar panel installations in Mbulungu, the ideal tilt angle to maximize year-round energy production is 6 degrees facing North. This angle takes into account the location's proximity to the equator and the sun's path throughout the year.

Environmental Considerations

While Mbulungu's climate is generally conducive to solar energy production, there are some factors that could potentially impact efficiency: 1. Rainfall: The region experiences a wet season, which could lead to increased cloud cover and reduced sunlight. 2. Dust and particulate matter: The dry season may bring increased dust in the air, which can accumulate on solar panels and reduce their effectiveness.

Preventative Measures

To mitigate these environmental challenges and ensure optimal solar energy production, consider the following measures: 1. Regular cleaning: Implement a routine cleaning schedule for solar panels, especially during the dry season, to remove dust and debris. 2. Weather-resistant equipment: Use high-quality, weather-resistant solar panels and components that can withstand both heavy rainfall and intense sunlight. 3. Proper drainage: Ensure proper drainage systems are in place to prevent water accumulation on or around the solar installation during the wet season.

Overall, Mbulungu's location offers a promising environment for solar energy production, with consistent sunlight throughout the year and only minor seasonal variations in output. By addressing the potential challenges related to weather patterns, a solar installation in this area can be highly effective in generating clean, renewable energy.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 12 locations across DR Congo. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in DR Congo by location

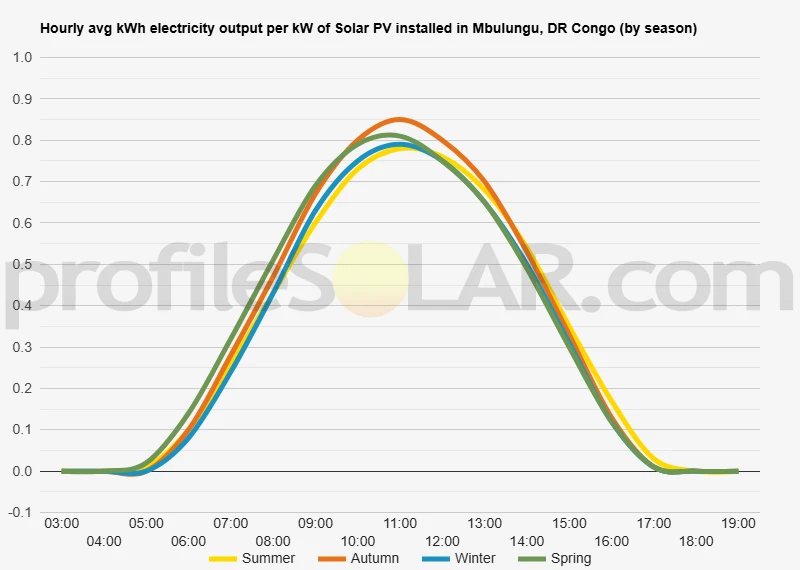

Solar output per kW of installed solar PV by season in Mbulungu

Seasonal solar PV output for Latitude: -6.05, Longitude: 21.9041 (Mbulungu, DR Congo), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° North in Mbulungu, DR Congo

To maximize your solar PV system's energy output in Mbulungu, DR Congo (Lat/Long -6.05, 21.9041) throughout the year, you should tilt your panels at an angle of 6° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mbulungu, DR Congo

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mbulungu, DR Congo. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	13° North in Autumn	22° North in Winter	0° in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mbulungu, DR Congo

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mbulungu, DR Congo.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mbulungu, DR Congo

The topography around Mbulungu, located in the Democratic Republic of Congo, is characterized by a diverse landscape typical of the region's tropical climate and geographical features. The area is situated in the southern part of the country, within the Congo Basin, which is known for its vast rainforests and intricate river systems. The terrain in this region is generally flat to gently rolling, with occasional hills and low-lying plateaus. The elevation gradually increases as you move away from the major rivers, creating a subtle variation in the landscape. The area is dotted with numerous small streams and tributaries that feed into larger rivers, contributing to the lush vegetation and humid environment. Dense tropical forests cover much of the surrounding area, interspersed with patches of savanna grasslands. These forests are home to a rich biodiversity and play a crucial role in the local ecosystem. The vegetation is typically thick and verdant, with towering trees forming a canopy that shades the forest floor.

Potential for Solar PV Development

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would be those with relatively flat terrain, minimal forest cover, and good access to existing infrastructure. Areas of savanna or cleared land near Mbulungu would be prime candidates for solar PV development. These open spaces receive ample sunlight throughout the year, which is essential for optimal solar energy production. Additionally, the flat or gently sloping terrain in these areas would simplify the installation process and reduce construction costs. It's important to note that while the region around Mbulungu has potential for solar energy development, careful consideration must be given to environmental impacts. Clearing large areas of forest for solar installations would be counterproductive from an ecological standpoint. Therefore, the focus should be on utilizing already open areas or degraded lands that are not crucial for biodiversity conservation. Proximity to existing power infrastructure and roads would also be a key factor in determining suitable locations for large-scale solar PV. Areas closer to major towns or settlements might offer better connectivity and easier integration into the existing power grid. In conclusion, while the topography around Mbulungu presents some challenges for large-scale solar PV development due to its forested nature, there are likely suitable areas in the vicinity where such projects could be implemented sustainably. Careful site selection and environmental impact assessments would be crucial to ensure that solar energy development in this region balances economic benefits with ecological preservation.
