Solar Energy Potential in Mwene-Ditu, Lomami, DR Congo

Mwene-Ditu, Lomami, located in the Democratic Republic of Congo, presents a highly favorable location for solar energy production throughout the year. Situated in the tropics, this location benefits from consistent sunlight patterns that make it an excellent candidate for solar photovoltaic (PV) installations. The solar energy generation potential remains remarkably stable across all seasons. For each kilowatt of installed solar capacity, the location produces 5.54 kWh per day during summer, 5.99 kWh per day in autumn, 5.57 kWh per day in winter, and 5.58 kWh per day in spring. This consistency is a significant advantage compared to locations with more dramatic seasonal variations. Autumn stands out as the peak production period, offering approximately 8% higher output than the other seasons. This slight increase makes autumn particularly valuable for energy planning, though the minimal variation overall means reliable power generation year-round.

Optimal Panel Installation

For fixed solar panel installations in Mwene-Ditu, Lomami, the ideal tilt angle is 7 degrees facing North. This specific angle has been calculated to maximize total year-round energy production, taking into account the location's position in the southern hemisphere and seasonal sun paths.

Environmental Challenges and Mitigation Strategies

Several environmental factors in Mwene-Ditu could potentially impact solar energy production:

• Heavy seasonal rainfall during the wet season can reduce solar efficiency through cloud cover and panel soiling. Installing panels at the optimal 7-degree angle helps with natural cleaning from rainwater, while scheduled maintenance should be increased during transitional periods.
• Dust accumulation during dry seasons can significantly reduce panel efficiency. Implementing regular cleaning protocols and potentially dust-repellent coatings can mitigate this issue.
• The lateritic soils in the region might create stability challenges for ground-mounted systems, particularly with the seasonal wet-dry cycle. Reinforced foundations and proper drainage systems around installation sites are recommended.
• Morning fog in valley areas could delay peak production hours. Positioning arrays on elevated areas where possible can help avoid this limitation.

Despite these challenges, the consistent solar radiation throughout the year makes Mwene-Ditu an excellent location for solar PV deployment. With proper installation techniques and maintenance protocols adapted to local conditions, solar installations here can provide reliable renewable energy with minimal seasonal fluctuations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 12 locations across DR Congo. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in DR Congo by location

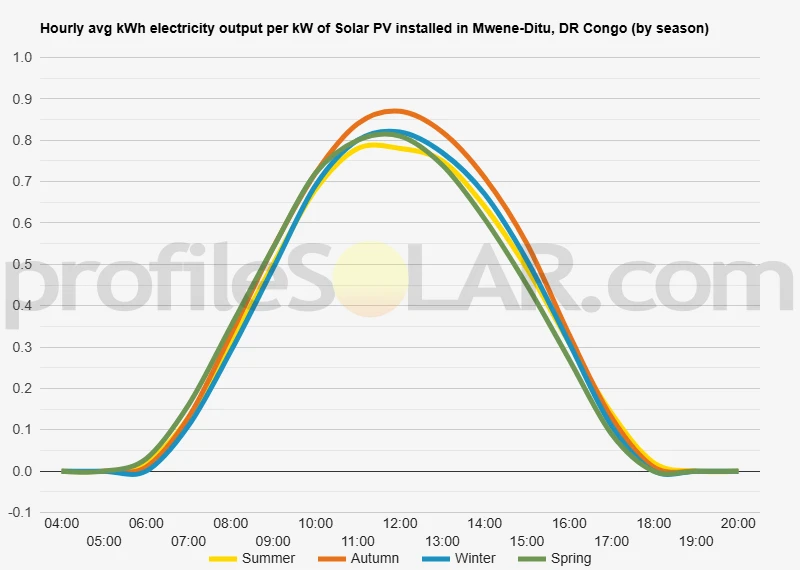

Solar output per kW of installed solar PV by season in Mwene-Ditu

Seasonal solar PV output for Latitude: -6.9963, Longitude: 23.4503 (Mwene-Ditu, DR Congo), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Mwene-Ditu, DR Congo

To maximize your solar PV system's energy output in Mwene-Ditu, DR Congo (Lat/Long -6.9963, 23.4503) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mwene-Ditu, DR Congo

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mwene-Ditu, DR Congo. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	14° North in Autumn	23° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mwene-Ditu, DR Congo

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mwene-Ditu, DR Congo.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mwene-Ditu, DR Congo

Mwene-Ditu is situated in the Kasai-Oriental province of the Democratic Republic of Congo, characterized by a diverse topographical landscape. The region presents a varied terrain that transitions between plateaus and valleys, with elevations generally ranging between 600 and 900 meters above sea level. The area forms part of the greater Congo Basin but sits on its southern periphery where the landscape begins to rise toward the Katanga Plateau. The immediate vicinity around Mwene-Ditu features gently rolling hills interspersed with shallow valleys. These undulations create a moderately varied landscape without extreme elevation changes. The region has numerous small streams and seasonal waterways that have carved subtle depressions throughout the terrain. These waterways generally flow northward, eventually contributing to the Kasai River system, a major tributary of the Congo River.

Vegetation and Land Cover

The natural vegetation around Mwene-Ditu consists primarily of miombo woodland and savanna grasslands. This vegetation has been significantly modified in many areas by human activities, particularly agriculture and settlement. Closer to the urban center of Mwene-Ditu, the landscape has been largely cleared, while more distant areas retain patches of woodland interspersed with cultivated fields. The soil composition tends toward lateritic types, which are rich in iron and aluminum oxides, giving the soil a characteristic reddish color. These soils develop through intensive weathering in tropical climates and can vary in fertility depending on local conditions and management practices.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, the most suitable areas near Mwene-Ditu would be the elevated plateaus and open grasslands that lie primarily to the south and southeast of the city. These areas offer several advantages for solar development: The relatively flat plateau terrain provides extensive open spaces with minimal need for land reshaping or extensive civil works. These plateaus typically have good drainage characteristics, reducing concerns about seasonal flooding that could affect infrastructure. Areas where the miombo woodland has naturally thinned or been previously cleared for agriculture present opportunities for solar development with minimal additional environmental disruption. The best locations would be those with southern exposure and minimal shading from any remaining tall vegetation or topographical features. The slightly elevated positions of these plateaus may also benefit from reduced morning fog and haze compared to lower-lying areas near water sources, potentially allowing for marginally earlier productive generation each day.

Topographical Considerations

When evaluating specific sites, several topographical factors merit consideration. Areas with gentle slopes facing north or northeast should be avoided where possible, as they receive less direct solar radiation in the southern hemisphere. Instead, south-facing gentle slopes would optimize solar exposure throughout the year. The region experiences distinct wet and dry seasons, which affects the stability of some terrain. Sites should be selected with attention to seasonal drainage patterns to avoid areas prone to erosion or seasonal flooding. The lateritic soils can become quite hard during dry periods but may soften considerably during rainy seasons, potentially affecting construction and maintenance activities. Some of the most promising areas for solar development lie approximately 10-15 kilometers south of Mwene-Ditu's center, where the landscape opens into more expansive plateau formations with reduced tree cover and minimal competing land uses. These areas also benefit from proximity to existing transportation infrastructure, potentially simplifying construction logistics and ongoing maintenance requirements.
