The location at Archidona, Napo, Ecuador is quite good for generating energy via solar PV throughout the year. This is because it's located in the Tropics where sunlight is consistently available most of the year. The amount of electricity that can be produced from each kW of installed solar varies slightly with the seasons but stays relatively high all year round. It produces 4.09kWh/day in Summer, 3.81kWh/day in Autumn, 3.92kWh/day in Winter and 4.69kWh/day in Spring.

The best time to generate solar at this location would be during spring when production reaches its peak at 4.69 kWh per day for each kW of installed solar power equipment.

For a fixed panel installation at this location, tilting panels by just one degree towards North would maximize total annual production from these solar PV systems.

However, there might be some local factors that could impede solar production here such as cloud cover or rain during wet seasons which could reduce sunlight availability and therefore lower energy output from your panels. To combat this issue and ensure greater energy production despite these weather conditions, you may want to consider installing more efficient panels or using tracking systems that follow the sun's path across the sky to collect maximum sunlight even on cloudy days.

Also note that regular cleaning and maintenance will also help keep your system running efficiently as dust or debris on your panels can block sunlight and reduce their effectiveness.

In conclusion, Archidona has great potential for producing substantial amounts of clean renewable energy through Solar PV systems all year round if managed properly considering both environmental factors and proper maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

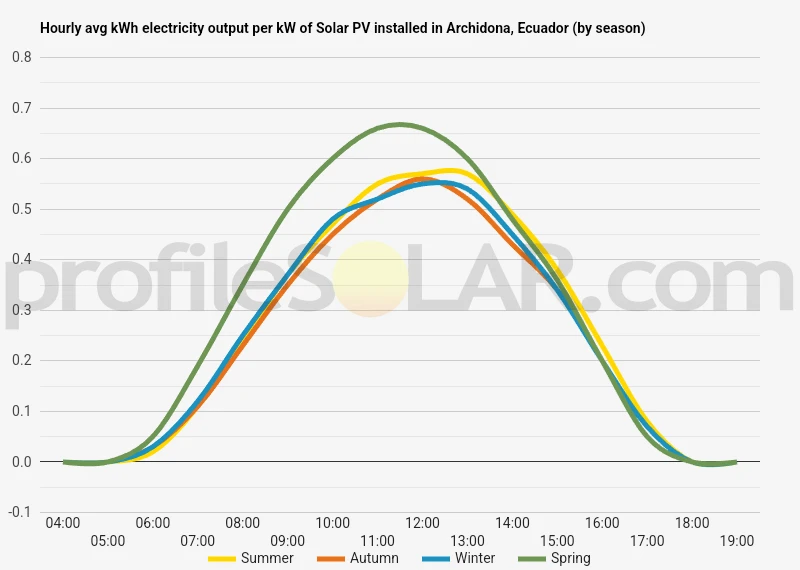

Solar output per kW of installed solar PV by season in Archidona

Seasonal solar PV output for Latitude: -0.9187, Longitude: -77.7977 (Archidona, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 4.09kWh/day in Summer.

Average 3.81kWh/day in Autumn.

Average 3.92kWh/day in Winter.

Average 4.69kWh/day in Spring.

Ideally tilt fixed solar panels 1° North in Archidona, Ecuador

To maximize your solar PV system's energy output in Archidona, Ecuador (Lat/Long -0.9187, -77.7977) throughout the year, you should tilt your panels at an angle of 1° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: -0.9187, Longitude: -77.7977, the ideal angle to tilt panels is 1° North

Seasonally adjusted solar panel tilt angles for Archidona, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Archidona, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° North tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Archidona, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Archidona, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Archidona, Ecuador

Archidona is located in the eastern part of Ecuador, in the province of Napo. The region is characterized by a mountainous landscape with valleys and rivers due to its location on the eastern slopes of the Andes. It's covered largely by tropical rainforest as it's part of the Amazon basin.

Given this topography and vegetation coverage, large scale solar PV installations may face challenges. However, there are still potential locations for such projects:

1. Flat Areas: Solar panels need to be installed on flat or gently sloping land for maximum efficiency. Therefore, any flat areas within or near Archidona could be suitable.

2. Deforested Areas: While deforestation is generally discouraged due to environmental concerns, if there are already deforested areas available that aren't being used for other purposes (like agriculture), these could potentially be utilized.

3. Rooftop Installations: In urbanized parts of Archidona itself or nearby towns/cities like Tena, rooftop solar installations can also be a viable option.

4. Near Infrastructure: Proximity to infrastructure like roads and power lines can reduce installation costs significantly so these areas would also be more suited.

However, it's important to note that while Ecuador receives ample sunlight throughout the year which is great for solar energy generation; local climate conditions including cloud cover and rainfall especially in an Amazonian context will impact efficiency levels too.

Finally considering biodiversity conservation priorities in this region alongside indigenous rights (as many lands here are ancestral territories) would also play a crucial role in determining feasibility of largescale solar PV projects.

For precise identification and assessment though detailed site surveys combined with GIS analysis would likely need to be carried out by professionals in renewable energy development sector.
