Arenillas, El Oro, Ecuador presents an excellent location for year-round solar energy generation, benefiting from its tropical position where consistent sunlight is available throughout most of the year rather than experiencing traditional seasonal variations.

Solar Energy Production Potential

The solar energy output at this location demonstrates strong consistency across all seasons. Summer delivers the highest production at 5.72 kWh per day per kW of installed solar capacity, followed closely by spring at 5.47 kWh per day. Autumn maintains robust output at 5.60 kWh per day, while winter shows the lowest but still substantial production at 4.79 kWh per day. This relatively small variation between seasons makes Arenillas particularly attractive for solar installations, as energy production remains reliable year-round. The optimal times for solar generation occur during summer and spring months, though the difference compared to other seasons is modest enough that solar systems remain economically viable throughout the entire year.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 3 degrees facing North. This shallow angle reflects the location's proximity to the equator and has been calculated by analyzing daily solar elevation angles, optimal panel positioning, and weighting these factors against actual solar irradiance data throughout the year.

Environmental and Weather Considerations

Several local factors could potentially impact solar production in Arenillas and require consideration during installation planning:

• Coastal salt exposure: The location's proximity to the Pacific coast means solar panels face potential corrosion from salt-laden air
• Dust accumulation: The arid climate typical of this region can lead to significant dust buildup on panel surfaces
• Tropical storms: Seasonal weather patterns may bring intense rainfall and strong winds
• High humidity: Tropical conditions can affect electrical components and connections

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these challenges, several installation strategies prove effective:

• Corrosion-resistant materials: Use marine-grade aluminum frames and stainless steel mounting hardware to withstand salt exposure
• Regular cleaning schedule: Implement monthly panel washing to remove dust and debris, particularly during dry seasons
• Enhanced drainage: Design mounting systems with proper water runoff to prevent standing water during heavy rains
• Sealed electrical components: Install weatherproof inverters and use moisture-resistant wiring connections
• Structural reinforcement: Ensure mounting systems can withstand high winds typical of tropical storm conditions

Despite these considerations, the consistent solar resource and favorable tilt angle requirements make Arenillas an highly suitable location for solar energy projects with proper planning and maintenance protocols.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

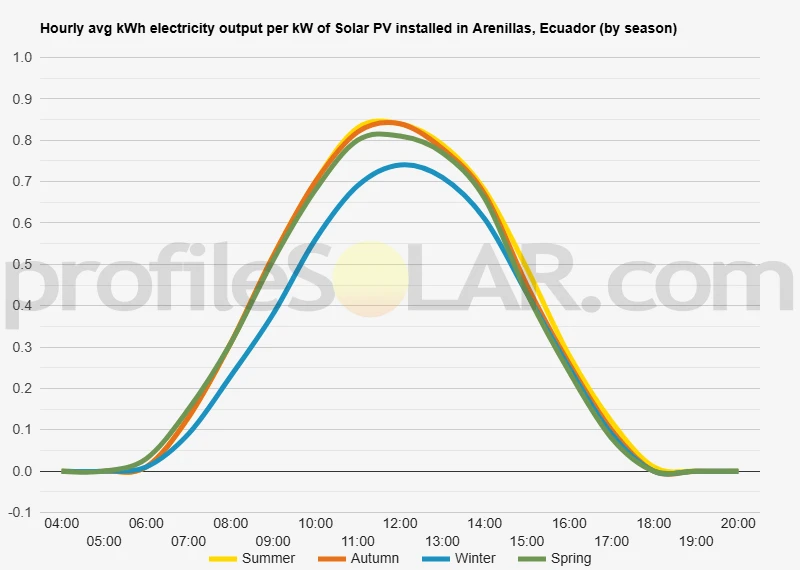

Solar output per kW of installed solar PV by season in Arenillas

Seasonal solar PV output for Latitude: -3.544, Longitude: -80.0626 (Arenillas, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 3° North in Arenillas, Ecuador

To maximize your solar PV system's energy output in Arenillas, Ecuador (Lat/Long -3.544, -80.0626) throughout the year, you should tilt your panels at an angle of 3° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Arenillas, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Arenillas, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	9° North in Autumn	19° North in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Arenillas, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Arenillas, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Arenillas, Ecuador

Topographical Features of the Arenillas Region

Arenillas sits in the coastal lowlands of southwestern Ecuador, positioned in El Oro Province near the border with Peru. The terrain around this area is characterized by relatively flat to gently undulating plains that extend inland from the Pacific coastline. The elevation remains consistently low, typically ranging from sea level to approximately 50 meters above sea level across most of the surrounding landscape.

The topography is dominated by alluvial plains formed by sediment deposits from nearby rivers and streams that drain westward toward the Pacific Ocean. These plains create expansive, relatively level surfaces with minimal steep gradients or significant elevation changes. The landscape is punctuated by occasional low hills and ridges, but these features are generally modest in height and do not create substantial topographical barriers.

The region experiences a semi-arid climate with distinct wet and dry seasons, which has shaped the local vegetation patterns and land use. Much of the area consists of dry forest and scrubland, interspersed with agricultural zones where irrigation is available. The flat nature of the terrain has made it suitable for various forms of agriculture, including rice cultivation in areas with adequate water supply and banana plantations in certain zones.

Optimal Areas for Large-Scale Solar Development

The extensive flat plains surrounding Arenillas present excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas lie to the east and northeast of the town, where the terrain remains consistently level with minimal vegetation cover. These zones offer the advantage of requiring minimal site preparation and grading work, which significantly reduces development costs for solar projects.

Areas located slightly inland from the immediate coastal zone would be preferable for solar development, as they experience less marine influence such as salt spray and coastal fog, which can affect solar panel efficiency and longevity. The terrain approximately 10 to 30 kilometers inland from the coast maintains the flat characteristics while avoiding some of the coastal environmental challenges.

The agricultural plains that are currently underutilized or experiencing water scarcity issues could be particularly well-suited for solar development. These areas already have established access routes and are typically free from dense vegetation or significant environmental constraints. The relatively sparse population density in the rural areas surrounding Arenillas also means that large tracts of land could potentially be assembled for utility-scale solar projects without significant displacement of communities.

Areas with existing electrical infrastructure or proximity to transmission lines would be especially advantageous, as they would reduce the costs associated with grid connection. The flat topography throughout the region means that solar installations could be developed with optimal panel orientation and spacing, maximizing energy capture potential while minimizing shading between panel arrays.
