Solar Energy Potential in Atuntaqui, Imbabura, Ecuador

Atuntaqui, Imbabura, Ecuador, situated at 0.3253, -78.2186, offers generally favorable conditions for solar energy production throughout the year. Being located almost directly on the equator in the tropics, this location benefits from consistent sunlight patterns that differ from the more dramatic seasonal variations seen in temperate regions. The solar electricity generation potential at Atuntaqui shows relatively steady performance across meteorological seasons. During autumn, the location achieves its peak production at 4.38 kWh per day for each kilowatt of installed solar capacity. Spring follows closely with 4.25 kWh/day, while summer produces 4.18 kWh/day. Winter represents the lowest production period with 3.97 kWh/day per installed kilowatt.

Optimal Panel Installation

For fixed solar panel installations in Atuntaqui, Imbabura, the ideal tilt angle to maximize year-round energy production is 0 degrees—essentially horizontal panels. This flat orientation is optimal due to the location's proximity to the equator, where the sun passes almost directly overhead throughout the year.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency in Atuntaqui:

• Cloud cover during the wet season can significantly reduce solar efficiency, particularly during the rainier months typically occurring from October to May
• Volcanic ash from nearby active volcanoes in the Ecuadorian Andes could occasionally settle on panels, reducing their effectiveness
• High altitude (Atuntaqui sits at approximately 2,400 meters above sea level) means stronger solar radiation but also potential temperature fluctuations

Recommended Preventative Measures

To maximize solar energy production despite these challenges, several preventative measures should be considered during installation:

• Implement automated cleaning systems or regular maintenance schedules to remove volcanic ash and dust
• Install micro-inverters or power optimizers to minimize production losses during partial shading from clouds
• Use high-quality panels with good performance in diffuse light conditions for better output during cloudy periods
• Consider slight adjustments to the 0-degree tilt during installation to facilitate natural cleaning by rainfall
• Select components rated for high-altitude conditions and temperature variations

Despite these considerations, Atuntaqui's consistent year-round solar radiation makes it a generally favorable location for solar PV installations, with only modest seasonal variations in expected energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

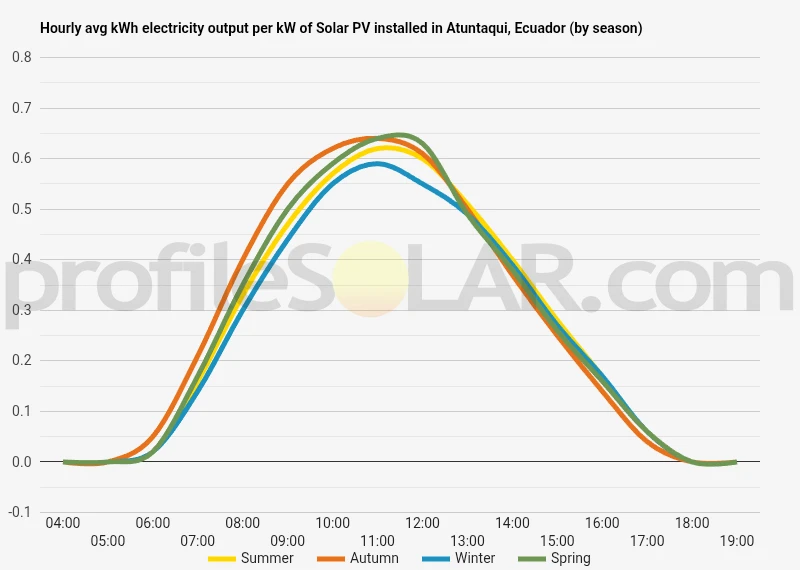

Solar output per kW of installed solar PV by season in Atuntaqui

Seasonal solar PV output for Latitude: 0.3253, Longitude: -78.2186 (Atuntaqui, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 0° in Atuntaqui, Ecuador

To maximize your solar PV system's energy output in Atuntaqui, Ecuador (Lat/Long 0.3253, -78.2186) throughout the year, you should tilt your panels at an angle of 0° for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Atuntaqui, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Atuntaqui, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 0° tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° North in Summer	6° South in Autumn	16° South in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Atuntaqui, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Atuntaqui, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Atuntaqui, Ecuador

Atuntaqui is nestled in the Andean highlands of Ecuador's Imbabura Province, sitting at an elevation of approximately 2,400 meters (7,874 feet) above sea level. The topography surrounding this textile-focused town is characterized by dramatic mountain landscapes, fertile valleys, and volcanic features that create a diverse terrain. The town itself is positioned in the Inter-Andean Valley, locally known as the "Valle del Amanecer" (Valley of Dawn), which runs between two major mountain ranges of the Andes - the Western and Eastern Cordilleras. This valley formation creates a relatively flat area where Atuntaqui and neighboring communities have developed.

Mountain Features

Dominating the eastern skyline is the majestic Imbabura Volcano, rising to about 4,630 meters (15,190 feet). This dormant stratovolcano has significant cultural importance to local indigenous communities and creates a dramatic backdrop for the region. Its slopes feature varying gradients, with gentler inclines near the base giving way to steeper terrain at higher elevations. To the west lies the Cotacachi Volcano, another prominent feature reaching approximately 4,944 meters (16,220 feet). Between these major volcanic formations, the landscape includes numerous hills, ridges, and smaller elevated features that create a rolling topography throughout the region.

Valley Systems

The valley where Atuntaqui is situated benefits from rich volcanic soils deposited over centuries, making it agriculturally productive. The terrain gradually slopes downward from the town toward the Ambi River, which flows through the western portion of the region. This river valley creates lower elevation corridors that cut through the otherwise mountainous landscape. The valley floor around Atuntaqui is relatively flat compared to the surrounding mountains, with gentle undulations and occasional terraced formations that have been adapted for agricultural use. Small ravines and seasonal water channels segment portions of the landscape, particularly during the wetter months.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several nearby areas offer promising conditions based on topographical considerations: The valley floor extending north and west of Atuntaqui presents the most immediately suitable terrain for large-scale solar development. These relatively flat areas avoid the shadowing effects that mountain slopes can create and offer easier construction conditions. Particularly promising is the stretch of land between Atuntaqui and the neighboring town of Ibarra, where gently sloping terrain provides good solar exposure. The lower elevation southern slopes of the region, particularly in areas facing north (which, being in the equatorial region, receive consistent solar exposure throughout the year) offer potential despite their gradient. These areas benefit from reduced cloud cover compared to higher elevations and maintain good solar incidence angles. The elevated plateaus found approximately 5-7 kilometers west of Atuntaqui, toward Cotacachi, provide flat expanses at higher elevations. These plateaus experience less atmospheric interference than valley locations and could support substantial installations where soil conditions permit.

Topographical Challenges

Despite these opportunities, several topographical factors present challenges for solar development in the region. The mountainous nature of much of the surrounding landscape limits the size of contiguous flat areas available for very large installations. Many potential sites would require terracing or other terrain adaptations. The volcanic origin of the region means that some areas have rocky substrates that could increase construction costs for mounting systems. Additionally, the numerous small ravines and water channels that cross the landscape would require careful site selection to avoid areas prone to seasonal water flow or erosion. The Imbabura and Cotacachi volcanoes cast morning and afternoon shadows respectively across portions of the valley during different seasons, requiring detailed shade analysis for any proposed installation sites to ensure optimal placement away from these shadow zones. In conclusion, while the topography around Atuntaqui presents certain challenges for large-scale solar development, the valley areas and plateaus offer viable options where the combination of relatively flat terrain and good solar exposure create favorable conditions for photovoltaic installations.
