Solar Energy Potential in Azogues, Cañar, Ecuador

Azogues, Cañar, Ecuador, located in the tropics at latitude -2.736 and longitude -78.8501, offers excellent conditions for solar photovoltaic (PV) energy generation throughout the year. This location benefits from its position near the equator, providing remarkably consistent solar energy potential across all seasons. The seasonal electricity output from solar PV systems in Azogues shows impressive consistency. During spring, the location reaches its peak performance with 4.68 kWh per day for each kilowatt of installed capacity. The other seasons maintain strong production levels: summer yields 4.19 kWh/day, winter produces 4.18 kWh/day, and autumn generates 4.14 kWh/day per kilowatt installed. Unlike regions farther from the equator, Azogues experiences minimal seasonal variation in solar production. The difference between the highest-producing season (spring) and the lowest (autumn) is only about 13%, making this location ideal for year-round solar energy generation with predictable output.

Optimal Panel Installation

For fixed solar panel installations in Azogues, Cañar, the ideal tilt angle to maximize year-round energy production is 3 degrees facing North. This slight tilt optimizes the panels' exposure to the sun throughout the year, accounting for the location's position just south of the equator. Spring represents the best time for solar energy production in Azogues, Cañar, with output approximately 12% higher than the annual average. This seasonal peak could be leveraged for activities requiring higher energy consumption during these months.

Environmental Considerations

Despite the favorable solar conditions, several environmental factors could affect solar production in Azogues:

• Cloud cover during the rainy season can temporarily reduce solar output, particularly in the afternoons when convective rainfall is common in tropical regions
• Dust accumulation, especially during dry periods, can gradually decrease panel efficiency if not regularly maintained
• The region's mountainous terrain may create localized shading depending on the specific installation site

To mitigate these challenges, solar installations in Azogues should incorporate several preventative measures. Regular panel cleaning schedules, particularly before and after the dry season, will maintain optimal efficiency. Installing microinverters or power optimizers can help minimize production losses from partial shading. Additionally, careful site selection that avoids terrain-based shadows during peak production hours will maximize energy capture. The minimal seasonal variation makes Azogues an excellent candidate for off-grid solar solutions, as battery storage requirements are less demanding than in locations with significant seasonal fluctuations in production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

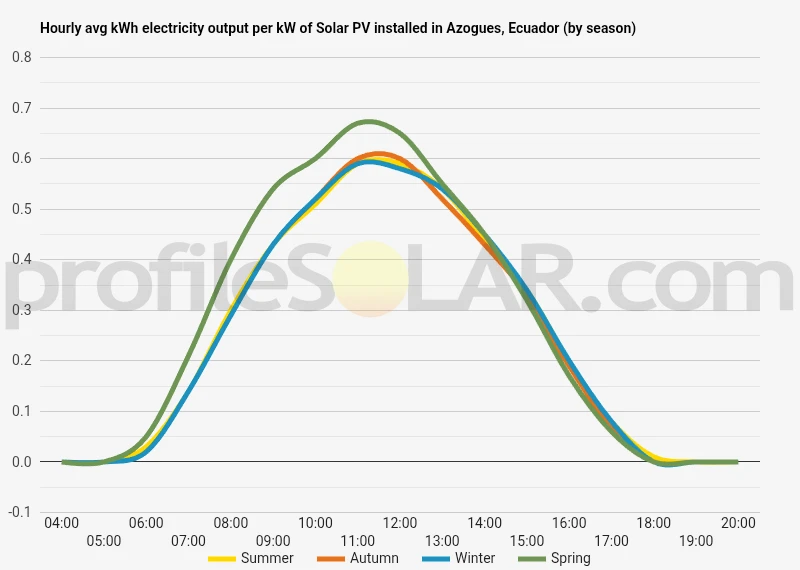

Solar output per kW of installed solar PV by season in Azogues

Seasonal solar PV output for Latitude: -2.736, Longitude: -78.8501 (Azogues, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 3° North in Azogues, Ecuador

To maximize your solar PV system's energy output in Azogues, Ecuador (Lat/Long -2.736, -78.8501) throughout the year, you should tilt your panels at an angle of 3° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Azogues, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Azogues, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	9° North in Autumn	19° North in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Azogues, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Azogues, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Azogues, Ecuador

The region surrounding Azogues, Ecuador is characterized by dramatic Andean topography, situated in the southern highlands of Ecuador in the Cañar Province. The landscape features steep mountain slopes, rolling hills, and river valleys creating a complex terrain at elevations generally between 2,400 and 3,000 meters above sea level. Azogues itself sits in a valley formed by the Burgay River, a tributary of the larger Paute River system. The topography around Azogues is defined by significant elevation changes within relatively short distances, with mountain ridges running predominantly north-south following the Andean cordillera orientation. These mountains create numerous slopes with varying aspects (directions they face), which has implications for solar exposure throughout the day. The eastern and western flanks of these mountains receive different sunlight patterns due to morning and afternoon shadowing effects.

Nearby Plains and Plateaus

While much of the surrounding area is mountainous, there are several relatively flat areas and plateaus within 30 kilometers of Azogues that present more favorable conditions for large-scale solar PV installations. The inter-Andean valley areas, particularly those extending toward Cuenca to the southwest and toward Biblián to the north, offer more level terrain that would minimize the costs associated with land preparation for solar arrays. The high plateaus (páramos) at higher elevations to the east and west of the city provide expansive areas with minimal obstruction from surrounding peaks, though access to these locations can be challenging due to their remoteness and the steep access routes.

Solar-Favorable Locations

The most suitable areas for large-scale solar PV development near Azogues would be: The plateau areas southwest toward Cuenca, where more extensive flat lands exist and where the elevation provides clear atmospheric conditions. These areas experience less cloud cover than the immediate surroundings of Azogues and have good exposure to the equatorial sun path. The elevated terraces to the northeast, heading toward Biblián, offer several locations with favorable topography for solar installations. These areas feature gentler slopes and wider valleys that could accommodate substantial solar arrays without excessive grading requirements. The eastern highlands, though more remote, provide excellent solar exposure conditions due to their elevation above the frequent cloud formations that develop in the valleys. These locations would require more substantial infrastructure development but offer superior insolation characteristics.

Topographical Challenges

The steep terrain throughout much of the region presents significant challenges for large-scale solar development. Many slopes exceed 15-20 degrees of inclination, making them technically difficult and economically unfeasible for traditional ground-mounted solar arrays. Additionally, the mountainous topography creates localized weather patterns with varying cloud cover and fog conditions that can affect solar resource consistency. The numerous river valleys, while providing access routes through the mountains, are often narrow with limited flat land and may be subject to morning fog or cloud formation that could reduce solar potential. The Paute River valley to the east experiences particular microclimatic conditions that would need careful assessment before solar development.

Optimal Development Zones

Considering both topographical and access factors, the most promising zones for large-scale solar PV development would be the transitional areas between the valley floors and the mountain slopes, particularly on south-facing terraces (in the Southern Hemisphere, north-facing slopes receive more direct sunlight, but the equatorial position of Ecuador minimizes this effect). These areas benefit from reasonable accessibility while avoiding the foggy conditions that can develop in the lowest parts of the valleys. The western approach to Azogues, where the terrain gradually rises toward the continental divide, offers several plateaus with minimal shadowing from adjacent peaks and good connection possibilities to existing transmission infrastructure serving the Cuenca-Azogues urban corridor.
