Calceta, Manabí, Ecuador presents a moderately favorable location for year-round solar photovoltaic energy generation. This tropical location experiences consistent sunlight throughout the year, with seasonal variations primarily driven by wet and dry periods rather than the dramatic temperature changes seen in temperate climates.

Solar Energy Production Potential

The solar energy output at Calceta varies seasonally, with autumn delivering the highest production at 5.07 kWh per day per installed kilowatt of solar capacity. Summer follows closely with 4.66 kWh/day per kW, while winter and spring show more modest output at 4.00 and 4.01 kWh/day per kW respectively. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 1 degree facing north. This nearly flat configuration maximizes total annual energy production by accounting for the location's proximity to the equator and seasonal variations in sun position.

Seasonal Performance Patterns

Autumn emerges as the peak solar generation season, making it an ideal time for maximum energy harvest. The relatively consistent performance across other seasons demonstrates the location's reliability for solar energy, though winter and spring show slightly reduced output compared to the warmer months.

Environmental and Weather Challenges

Being located in the tropics, Calceta faces several environmental factors that could impact solar production:

• High humidity levels can reduce panel efficiency and promote corrosion of electrical components
• Frequent rainfall during wet seasons can temporarily reduce solar output and create maintenance challenges
• Tropical storms and heavy precipitation events may damage installations if not properly secured
• Dust and organic matter accumulation during dry periods can significantly reduce panel efficiency
• Salt air from the nearby Pacific coast may accelerate corrosion of metal components

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove essential. Proper drainage systems around solar installations prevent water pooling and reduce humidity-related issues. Using marine-grade electrical components and corrosion-resistant mounting hardware helps combat the effects of high humidity and salt air exposure. Regular cleaning schedules become particularly important in this environment, as dust and organic debris can quickly accumulate on panel surfaces. Installing panels with adequate spacing allows for better air circulation, reducing moisture buildup and improving cooling efficiency. Robust mounting systems designed to withstand tropical weather conditions, including high winds and heavy rainfall, ensure long-term system reliability. Additionally, implementing proper grounding and surge protection helps protect against electrical damage from frequent thunderstorms common in tropical regions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

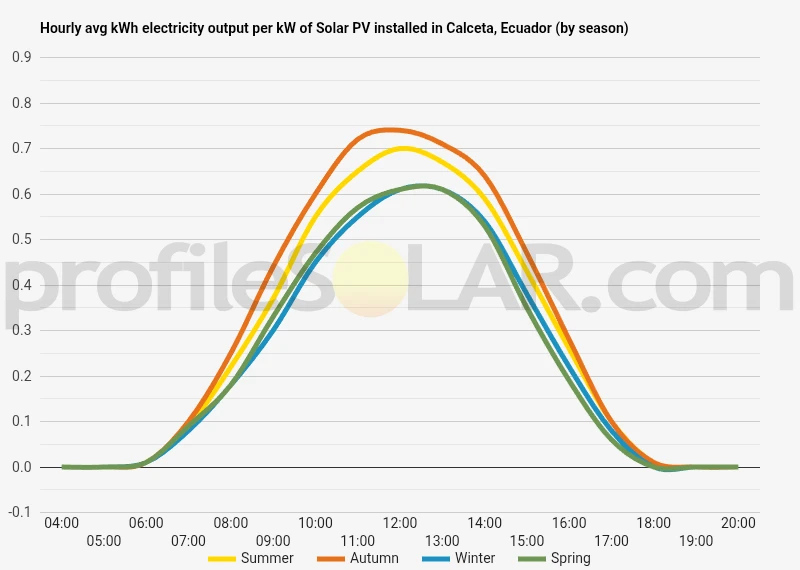

Solar output per kW of installed solar PV by season in Calceta

Seasonal solar PV output for Latitude: -0.8531, Longitude: -80.167 (Calceta, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° North in Calceta, Ecuador

To maximize your solar PV system's energy output in Calceta, Ecuador (Lat/Long -0.8531, -80.167) throughout the year, you should tilt your panels at an angle of 1° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Calceta, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Calceta, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° South in Summer	7° North in Autumn	17° North in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Calceta, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Calceta, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Calceta, Ecuador

Topographical Features of the Calceta Region

Calceta sits in the heart of Ecuador's Manabí Province, positioned within the coastal lowlands that characterize much of western Ecuador. The terrain around this agricultural town is predominantly flat to gently rolling, with elevations typically ranging from 50 to 200 meters above sea level. This relatively low-lying landscape forms part of the broader Guayas River basin system, where centuries of sediment deposition have created fertile plains ideal for farming.

The topography gradually transitions from the flatter coastal plains to the west toward more undulating hills as one moves inland to the east. These gentle slopes and ridges rarely exceed 300 meters in elevation, creating a landscape that appears almost table-like when viewed from elevated positions. The area lacks significant mountain ranges or steep terrain, instead featuring a series of low hills separated by broad valleys and drainage channels.

Water features play an important role in shaping the local topography. Several small rivers and seasonal streams meander through the region, creating narrow floodplains and slightly more varied terrain along their courses. These waterways have carved shallow valleys that provide natural drainage for the surrounding agricultural lands, though they do not significantly alter the overall gentle character of the landscape.

Optimal Areas for Large-Scale Solar Development

The relatively flat terrain surrounding Calceta presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas lie to the north and northwest of the town, where extensive flat plains stretch for several kilometers with minimal topographical variation. These areas offer the advantage of consistent ground conditions that would minimize the need for extensive site preparation and grading work.

The gently sloping hillsides to the east and southeast of Calceta also present favorable conditions for solar development. These areas provide natural drainage while maintaining slopes gentle enough to accommodate large solar arrays without requiring significant earthwork. The slight elevation changes in these areas could actually benefit solar installations by providing natural wind flow that helps keep panels cool and operating efficiently.

Areas along the broader valley floors, particularly those between the low ridges that run roughly north-south through the region, offer substantial contiguous spaces suitable for utility-scale solar farms. These locations benefit from being relatively sheltered from strong winds while maintaining the flat terrain necessary for efficient panel installation and maintenance access.

The agricultural lands that dominate the landscape around Calceta, while currently productive, represent potential sites for solar development due to their cleared, level nature and existing road access. Many of these areas have already been modified for farming, meaning soil conditions and drainage patterns are well-understood, which could simplify the development process for solar installations.
