Cayambe, Pichincha, Ecuador, situated near the equator, presents a promising location for solar energy generation. The consistent sunlight throughout the year, typical of tropical regions, contributes to a relatively stable solar power output across seasons.

Seasonal Solar Performance

The solar energy production in Cayambe shows minimal fluctuation across meteorological seasons:

• Summer: 4.19 kWh/day
• Autumn: 4.38 kWh/day
• Winter: 3.97 kWh/day
• Spring: 4.22 kWh/day

These figures represent the expected daily electricity output per kilowatt of installed solar capacity. The consistency in these values underscores the location's suitability for year-round solar energy generation.

Optimal Panel Tilt

For fixed panel installations in Cayambe, Pichincha, the ideal tilt angle to maximize year-round production is 0 degrees. This flat orientation is due to the location's proximity to the equator, where the sun's path remains relatively overhead throughout the year.

Environmental Considerations

While Cayambe's location is generally favorable for solar energy production, there are some environmental factors to consider:

1. Cloud Cover: The region experiences a wet season, typically from October to May, which may lead to increased cloud cover and potentially reduced solar output.
2. Altitude: Cayambe's high elevation (approximately 2,830 meters above sea level) can lead to rapid weather changes and occasional hail storms.

To mitigate these factors, installers should consider using high-quality, durable panels resistant to hail damage. Additionally, implementing a robust cleaning schedule during the wet season can help maintain optimal panel performance by removing any accumulated dirt or debris.

Despite these minor challenges, Cayambe's location remains highly suitable for solar PV installations, offering consistent energy production throughout the year with minimal seasonal variations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

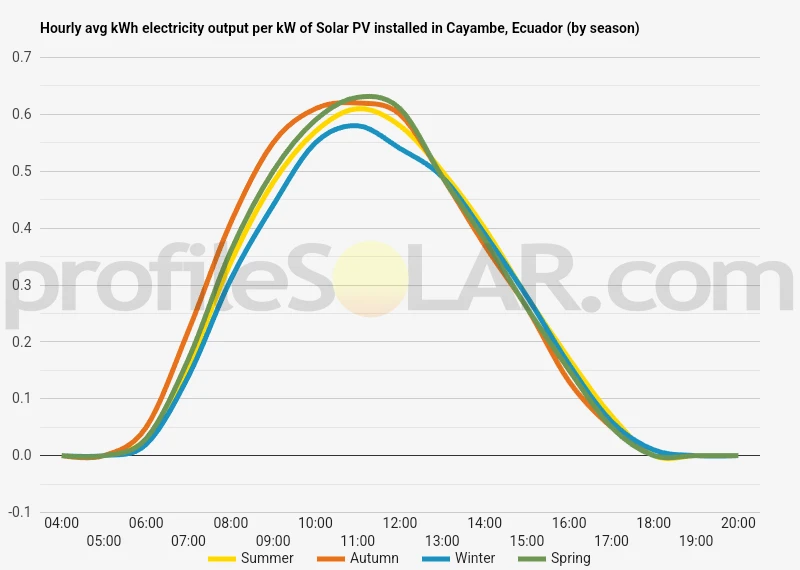

Solar output per kW of installed solar PV by season in Cayambe

Seasonal solar PV output for Latitude: 0.0298, Longitude: -78.1487 (Cayambe, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 0° in Cayambe, Ecuador

To maximize your solar PV system's energy output in Cayambe, Ecuador (Lat/Long 0.0298, -78.1487) throughout the year, you should tilt your panels at an angle of 0° for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cayambe, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cayambe, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 0° tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° North in Summer	6° South in Autumn	15° South in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cayambe, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cayambe, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cayambe, Ecuador

The topography around Cayambe, Ecuador, is characterized by dramatic and varied terrain, typical of the Andean region. Situated near the equator, Cayambe is dominated by the presence of the Cayambe volcano, a massive snow-capped peak that rises to an elevation of approximately 5,790 meters (19,000 feet) above sea level. This imposing mountain is part of the Cordillera Central, a range of the Andes that runs through Ecuador. The landscape surrounding Cayambe features a mix of steep slopes, high-altitude plateaus, and deeply carved valleys. As you move away from the volcano, the terrain gradually descends into rolling hills and more gently sloping areas. These lower elevations are home to a patchwork of agricultural fields, grasslands, and pockets of native forest. Numerous rivers and streams originate from the glaciers and snowfields of Cayambe volcano, carving their way through the landscape and creating a network of water channels that feed into larger river systems. This hydrological feature contributes to the region's fertility but also shapes the topography with ravines and gorges.

Potential Areas for Large-Scale Solar PV

When considering areas suitable for large-scale solar photovoltaic (PV) installations near Cayambe, several factors come into play. The most suitable locations would generally be found in the lower-lying areas to the east and northeast of Cayambe, where the terrain becomes less rugged and more open. These areas, part of the inter-Andean valley, offer more consistent sunlight exposure and gentler slopes, which are crucial for efficient solar panel placement. The high-altitude plateaus, known locally as "páramos," could also be potential sites for solar farms, as they receive abundant sunlight and have relatively flat terrain. However, it's important to note that any large-scale solar project would need to carefully balance energy production potential with environmental and agricultural considerations. The region's rich biodiversity and the importance of agriculture to local communities would necessitate thorough impact assessments before implementing such projects. Additionally, areas to the west of Cayambe, as the terrain descends towards the Pacific coast, might offer suitable locations for solar PV installations. These lower-elevation zones typically experience less cloud cover and fog compared to the higher mountain areas, potentially providing more consistent solar radiation throughout the year. In conclusion, while the immediate vicinity of Cayambe is characterized by challenging mountainous terrain, the surrounding lower-elevation areas offer promising potential for large-scale solar PV development, subject to careful planning and environmental considerations.
