Chillanes, Bolívar, Ecuador presents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropical zone at coordinates -1.9323, -79.0705, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Potential

The solar energy output data for Chillanes demonstrates excellent year-round performance. Spring emerges as the most productive season, generating 4.39 kWh per day per kW of installed solar capacity. Autumn follows closely with 4.37 kWh per day per kW, while summer produces 4.03 kWh per day per kW. Winter shows the lowest output at 3.78 kWh per day per kW, though this still represents strong production levels. The ideal times for solar generation at this location are during spring and autumn months, when atmospheric conditions and sun positioning combine to maximize energy capture. Even during the less productive winter period, the output remains substantial compared to many temperate climate locations.

Optimal Panel Configuration

For fixed panel installations in Chillanes, Bolívar, the ideal tilt angle to maximize total year-round solar production is 2 degrees North. This shallow angle reflects the location's proximity to the equator, where the sun maintains a relatively high position throughout the year.

Environmental and Weather Considerations

Several local factors in Chillanes could potentially impact solar energy production and require careful consideration during installation planning. Tropical Weather Patterns: The region experiences distinct wet and dry seasons typical of tropical climates. During wet seasons, increased cloud cover and frequent rainfall can reduce solar irradiance and temporarily decrease energy output. Heavy tropical downpours may also create challenges for equipment protection and maintenance access. High Humidity Levels: Tropical environments typically maintain high humidity year-round, which can lead to moisture-related issues with solar equipment. Humidity can cause corrosion of metal components, degradation of electrical connections, and potential problems with inverters and other electronic components. Altitude Considerations: Chillanes sits at a significant elevation in Ecuador's Andean foothills. While higher altitude can actually improve solar panel efficiency due to cooler temperatures and thinner atmosphere, it can also bring challenges such as increased UV exposure that may accelerate equipment degradation, and potential for more dramatic weather changes.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production while mitigating local environmental challenges:

• Install high-quality weatherproof mounting systems with excellent drainage to handle heavy tropical rainfall
• Use marine-grade or specially treated components resistant to humidity and corrosion
• Implement proper ventilation systems behind panels to reduce heat buildup and moisture accumulation
• Select solar panels with robust anti-reflective coatings and UV-resistant materials suitable for high-altitude tropical conditions
• Design electrical systems with enhanced protection against moisture ingress, including sealed junction boxes and waterproof connectors

Maintenance Considerations: Regular cleaning schedules become particularly important in tropical environments where dust, pollen, and organic matter can accumulate on panel surfaces. Installing panels at the optimal 2-degree tilt will help with natural rain cleaning, but manual maintenance may still be necessary during drier periods. Equipment Selection: Choosing inverters and electrical components specifically rated for tropical conditions, with appropriate temperature and humidity tolerances, will ensure long-term reliability and maintain energy production efficiency throughout varying seasonal conditions. Despite these considerations, Chillanes represents an excellent location for solar energy generation, with the potential challenges being manageable through proper planning and installation techniques.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

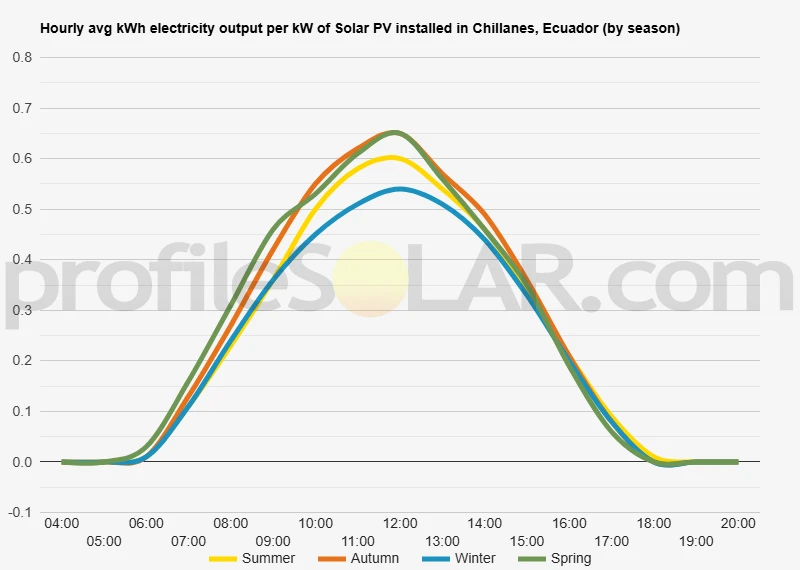

Solar output per kW of installed solar PV by season in Chillanes

Seasonal solar PV output for Latitude: -1.9323, Longitude: -79.0705 (Chillanes, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 2° North in Chillanes, Ecuador

To maximize your solar PV system's energy output in Chillanes, Ecuador (Lat/Long -1.9323, -79.0705) throughout the year, you should tilt your panels at an angle of 2° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chillanes, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chillanes, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 2° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	8° North in Autumn	18° North in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chillanes, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chillanes, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chillanes, Ecuador

Topographical Features Around Chillanes

Chillanes sits in the mountainous region of central Ecuador, positioned along the western slopes of the Andes Mountains in Bolívar Province. The terrain around this small town is characterized by dramatic elevation changes, with steep hillsides and deep valleys creating a complex landscape typical of the Andean foothills. The area experiences significant topographical variation within relatively short distances, with elevations ranging from approximately 1,800 to over 3,000 meters above sea level in the immediate vicinity.

The landscape is dominated by rolling hills and ridgelines that run generally north to south, following the broader Andean structure. These hills are interspersed with narrow valleys and ravines carved by seasonal streams and small rivers that flow westward toward the coastal plains. The terrain becomes progressively steeper as one moves eastward toward the main Andean spine, while the western approaches toward the coast feature more gradual slopes and broader valleys.

Much of the surrounding countryside consists of agricultural terraces and pasturelands that have been carved into the hillsides over generations. The natural vegetation includes patches of cloud forest at higher elevations, transitioning to more open grasslands and cultivated areas on the lower slopes. The soil composition varies considerably with elevation and slope aspect, ranging from volcanic-derived soils on the higher ridges to alluvial deposits in the valley bottoms.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Chillanes would be found on the broader ridge tops and gentle upper slopes that face southward or have minimal shading from adjacent peaks. These elevated positions typically receive more consistent solar exposure throughout the day and are less affected by the morning and evening shadows cast by the surrounding mountains.

The western-facing slopes at moderate elevations present particularly attractive opportunities, as they avoid the more extreme weather conditions found at the highest elevations while still maintaining good solar access. These areas often feature more stable ground conditions compared to the steeper eastern faces and are generally more accessible for construction and maintenance activities.

Valley floors and lower slopes, while more accessible, tend to experience significant shading during morning and evening periods due to the surrounding hills. However, some of the broader valley areas that run east-west could still be viable for solar development, particularly where the valley walls are not excessively steep and where the terrain allows for optimal panel orientation.

The areas immediately to the west and southwest of Chillanes appear most suitable for large-scale installations, where the terrain begins to flatten somewhat as it transitions toward the coastal region. These locations combine reasonable accessibility with good solar exposure while avoiding the most challenging topographical constraints found in the steeper mountain areas to the east.
