Cotacachi, Imbabura, Ecuador, situated at latitude 0.3 and longitude -78.2643, offers a promising location for solar energy generation throughout the year. This tropical setting benefits from consistent sunlight, with seasons primarily characterized by wet and dry periods rather than traditional temperature-based seasons.

Year-round Solar Potential

The solar energy output in Cotacachi remains relatively stable across all meteorological seasons. Autumn sees the highest production at 4.38 kWh per day for each kilowatt of installed solar capacity. This is closely followed by spring (4.22 kWh/day), summer (4.19 kWh/day), and winter (3.97 kWh/day). These figures indicate a reliable and consistent solar energy potential throughout the year. The minimal variation between seasons suggests that Cotacachi is an excellent location for solar PV installations, as energy production remains steady regardless of the time of year. This consistency allows for more accurate energy planning and reduces the need for supplementary power sources during specific seasons.

Optimal Panel Tilt

For fixed solar panel installations in Cotacachi, Imbabura, the ideal tilt angle to maximize year-round production is 0 degrees. This flat orientation is due to the location's proximity to the equator, where the sun's path remains relatively overhead throughout the year. This simplifies installation and maintenance processes, as there's no need for complex tilting mechanisms or seasonal adjustments.

Environmental Considerations

While Cotacachi's location is generally favorable for solar energy production, there are a few environmental factors to consider: 1. Cloud cover: The region experiences a rainy season, typically from October to May, which may temporarily reduce solar efficiency. 2. Volcanic ash: Given Ecuador's location in the "Ring of Fire," occasional volcanic activity could lead to ash fall, potentially affecting panel performance. To mitigate these challenges, consider the following preventative measures:

• Install high-quality, weather-resistant panels designed to perform well in various conditions.
• Implement a regular cleaning schedule to remove any accumulated dust or ash.
• Use micro-inverters or power optimizers to minimize the impact of partial shading on overall system performance.
• Consider incorporating energy storage solutions to balance out production during cloudier periods.

By addressing these factors, solar installations in Cotacachi can take full advantage of the location's excellent year-round solar potential, ensuring optimal energy production and system longevity.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

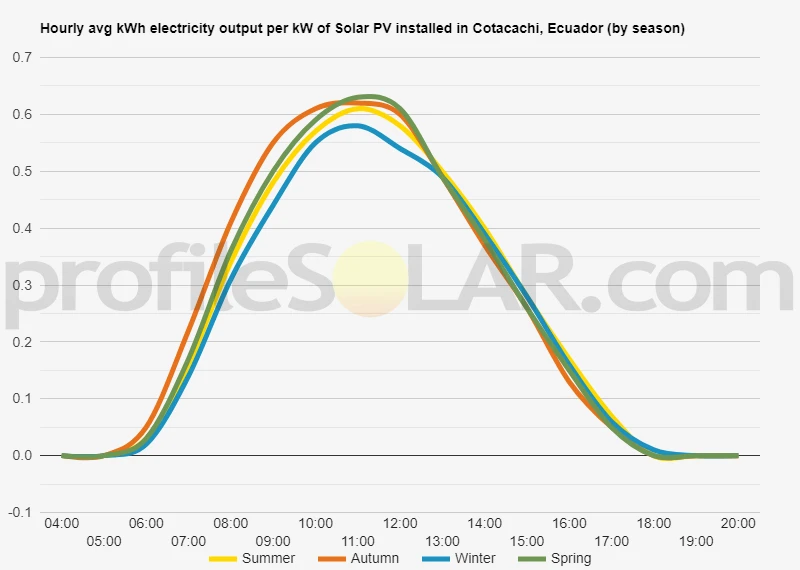

Solar output per kW of installed solar PV by season in Cotacachi

Seasonal solar PV output for Latitude: 0.3, Longitude: -78.2643 (Cotacachi, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 0° in Cotacachi, Ecuador

To maximize your solar PV system's energy output in Cotacachi, Ecuador (Lat/Long 0.3, -78.2643) throughout the year, you should tilt your panels at an angle of 0° for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cotacachi, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cotacachi, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 0° tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° North in Summer	6° South in Autumn	16° South in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cotacachi, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cotacachi, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cotacachi, Ecuador

The topography around Cotacachi, Ecuador is diverse and dramatic. Cotacachi is situated in the Andean highlands, nestled between towering mountains and lush valleys. The town itself sits at an elevation of approximately 2,400 meters (7,874 feet) above sea level, providing a cool climate year-round.

To the west of Cotacachi looms the impressive Cotacachi Volcano, which stands at 4,944 meters (16,220 feet) tall. This dormant volcano is a dominant feature of the landscape, with its snow-capped peak often visible on clear days. The eastern slopes of the volcano gradually descend into rolling hills and farmland that surround the town.

To the east of Cotacachi, the terrain becomes more varied. There are steep hillsides, deep ravines, and fertile valleys. The nearby Intag Valley is known for its lush, subtropical environment, which contrasts sharply with the higher altitude areas around Cotacachi. This region is characterized by dense forests, winding rivers, and scattered agricultural plots.

For large-scale solar PV installations, the areas most suited would likely be the relatively flat or gently sloping lands to the south and southeast of Cotacachi. These areas receive ample sunlight throughout the year due to Ecuador's position on the equator. The elevated plateaus in this region, known locally as "altiplanos," offer expansive open spaces that could accommodate large solar arrays.

However, it's important to note that much of the land around Cotacachi is used for agriculture or is part of protected ecological reserves. Any large-scale solar development would need to carefully consider environmental impacts and land use regulations. The areas between Cotacachi and the nearby city of Ibarra might offer a good balance of suitable terrain and proximity to existing infrastructure.

While the immediate vicinity of Cotacachi might be challenging for very large installations due to its mountainous nature, the broader region of Imbabura Province has potential. The flatter areas around Lake San Pablo, about 30 kilometers to the southeast, could also be considered for solar development, as they offer a combination of favorable topography and good solar exposure.
