El Guabo, El Oro, Ecuador represents an excellent location for year-round solar photovoltaic energy generation. Positioned in the tropical zone at coordinates -3.2435, -79.8293, this area benefits from consistent sunlight throughout most of the year, with seasonal variations typically defined by wet and dry periods rather than the temperature-based seasons found in temperate regions.

Solar Energy Production Potential

The solar energy output data for El Guabo demonstrates remarkably consistent performance across all seasons. During summer months, solar panels can be expected to generate 4.26 kWh per day for each kilowatt of installed capacity. Autumn shows a slight improvement at 4.34 kWh/day per kW, while winter maintains strong performance at 4.30 kWh/day per kW. Spring emerges as the most productive season for solar generation in El Guabo, El Oro, delivering 4.66 kWh per day per kW of installed solar capacity. This makes spring the ideal time of year for maximum solar energy production at this location, though the relatively small variation between seasons means the location provides reliable solar generation year-round. For optimal performance, solar panels should be installed at a fixed tilt angle of 3 degrees facing North. This angle has been calculated to maximize total year-round solar production by accounting for the sun's elevation angles throughout the year, weighted by solar irradiance data and considering Earth's elliptical orbit.

Environmental and Weather Challenges

Several environmental factors in El Guabo could potentially impact solar energy production and require careful consideration during installation planning. The tropical climate brings significant rainfall during wet seasons, which can reduce solar irradiance and create challenges for solar panel performance. Heavy cloud cover during these periods can substantially decrease energy output, making it important to size solar installations appropriately to account for these seasonal variations. High humidity levels typical of tropical regions can accelerate corrosion of metal components and electrical connections. This environmental factor can reduce system lifespan and efficiency if not properly addressed during installation and maintenance planning. Dust and debris accumulation on solar panels can be problematic, particularly during dry seasons when rainfall is insufficient to naturally clean panel surfaces. Volcanic ash from Ecuador's active volcanoes could also pose periodic challenges for maintaining clean panel surfaces.

Preventative Measures for Optimal Performance

To maximize solar energy production in El Guabo's tropical environment, several preventative measures should be implemented:

• Install panels with corrosion-resistant mounting systems using marine-grade aluminum or stainless steel components
• Ensure proper drainage around solar installations to prevent water accumulation
• Design electrical systems with enhanced weatherproofing and use moisture-resistant junction boxes
• Implement regular cleaning schedules, particularly during dry seasons when natural rainfall is insufficient
• Consider installing panels at slightly steeper angles than the optimal 3 degrees to promote self-cleaning during rainfall

The consistent solar output throughout the year, combined with proper installation techniques and maintenance practices, makes El Guabo an attractive location for solar energy projects. While tropical environmental factors require attention, they can be effectively managed through appropriate design and maintenance strategies.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

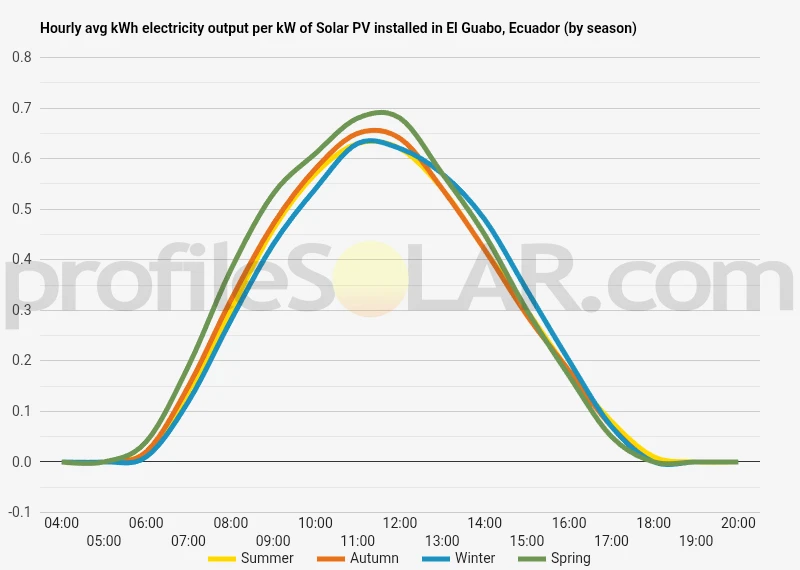

Solar output per kW of installed solar PV by season in El Guabo

Seasonal solar PV output for Latitude: -3.2435, Longitude: -79.8293 (El Guabo, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 3° North in El Guabo, Ecuador

To maximize your solar PV system's energy output in El Guabo, Ecuador (Lat/Long -3.2435, -79.8293) throughout the year, you should tilt your panels at an angle of 3° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for El Guabo, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in El Guabo, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	10° North in Autumn	19° North in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in El Guabo, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in El Guabo, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around El Guabo, Ecuador

Topographical Features of El Guabo

El Guabo is located in the coastal lowlands of southern Ecuador, within the El Oro Province. The terrain around this agricultural town is characterized by relatively flat to gently rolling plains that extend inland from the Pacific coastal region. The elevation in the immediate vicinity sits at approximately 40-60 meters above sea level, creating a predominantly level landscape that gradually rises as it moves eastward toward the foothills of the Andes Mountains. The area features expansive alluvial plains formed by sediment deposits from nearby rivers, particularly the Jubones River system which flows through the region. These fertile lowlands are interspersed with small hills and gentle undulations, but the overall topography remains fairly uniform without significant elevation changes or steep gradients. The landscape is primarily agricultural, with extensive banana plantations, shrimp farms, and other tropical crops dominating the visual character of the region.

Drainage and Water Features

The Jubones River and its tributaries create a network of waterways that flow generally westward toward the Pacific Ocean. These rivers have carved shallow valleys through the coastal plain, but the relief remains modest. Seasonal flooding can occur during the wet season, creating temporary wetlands and affecting drainage patterns across the flatter areas. Small creeks and irrigation channels crisscross the agricultural zones, supporting the intensive farming activities that define much of the local economy.

Optimal Areas for Large-Scale Solar Development

The gently sloping terrain to the east and northeast of El Guabo presents excellent opportunities for large-scale solar photovoltaic installations. These areas offer several advantages including stable ground conditions, minimal grading requirements, and good drainage characteristics. The slightly elevated positions provide natural protection from seasonal flooding while maintaining easy access for construction and maintenance activities. Areas located 5-15 kilometers inland from the immediate coastal zone would be particularly well-suited for solar development. These locations benefit from the stable geological conditions of the alluvial plains while avoiding the more flood-prone areas closer to the river systems. The gentle eastward-facing slopes in this zone would provide optimal orientation for solar panel arrays while requiring minimal earthwork for site preparation. The agricultural lands surrounding El Guabo, while currently productive, represent potential sites for agrivoltaic systems or solar installations on less fertile soils. Areas with slightly higher elevation and better drainage, particularly those on the consolidated alluvial terraces, would offer the most stable foundations for large solar arrays. The relatively uniform topography means that extensive grading and site preparation would be minimal, reducing overall project costs and environmental impact. Transportation infrastructure in the region, including proximity to the Pan-American Highway and local road networks, would facilitate construction and ongoing maintenance of solar installations. The flat to gently rolling terrain also supports easy access for heavy equipment and materials transport, making project logistics more straightforward than in mountainous regions.
