Solar Energy Potential in Esmeraldas, Ecuador

Esmeraldas, Ecuador, situated near the equator at coordinates 0.9591, -79.6506, offers generally favorable conditions for solar energy production throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with weather variations primarily defined by wet and dry seasons rather than traditional temperature-based seasons. The solar energy production potential shows interesting seasonal variations. Spring stands out as the most productive period with an impressive 4.38 kWh per day for each kilowatt of installed solar capacity. Winter follows as the second most productive season with 3.94 kWh/day, while summer yields 3.80 kWh/day and autumn produces the least at 3.57 kWh/day per installed kilowatt.

Optimal Panel Installation

For fixed solar panel installations in Esmeraldas, the ideal tilt angle to maximize year-round energy production is 0 degrees. This flat orientation takes advantage of the location's proximity to the equator, where the sun passes nearly directly overhead throughout the year. This simplified installation approach eliminates the need for complex tilting structures that would be necessary at locations farther from the equator.

Environmental and Weather Considerations

Several environmental factors in Esmeraldas may affect solar energy production:

• High humidity and frequent rainfall, especially during the wet season, can reduce solar efficiency through cloud cover and panel soiling
• Coastal salt spray may accelerate corrosion of solar equipment
• Potential for tropical storms and flooding in certain areas

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended:

• Install corrosion-resistant mounting hardware and marine-grade components
• Implement regular cleaning schedules, particularly after heavy rain events
• Consider slightly elevated installations to prevent flooding damage
• Use high-quality panels with anti-reflective coatings that perform better in diffuse light conditions
• Install robust lightning protection systems due to the region's thunderstorm activity

Overall, Esmeraldas offers good year-round solar potential with spring being the optimal production period. With proper system design and maintenance practices that address the tropical coastal conditions, solar PV systems can provide reliable renewable energy throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

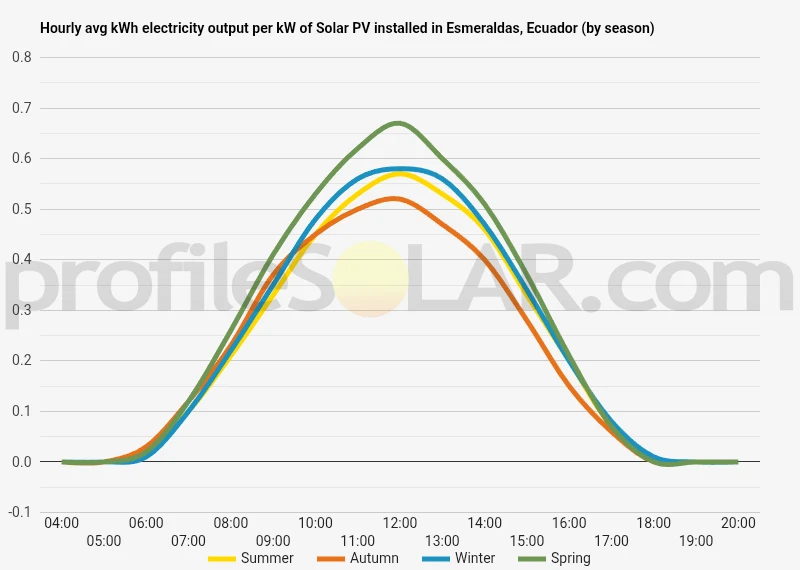

Solar output per kW of installed solar PV by season in Esmeraldas

Seasonal solar PV output for Latitude: 0.9591, Longitude: -79.6506 (Esmeraldas, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 0° in Esmeraldas, Ecuador

To maximize your solar PV system's energy output in Esmeraldas, Ecuador (Lat/Long 0.9591, -79.6506) throughout the year, you should tilt your panels at an angle of 0° for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Esmeraldas, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Esmeraldas, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 0° tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° North in Summer	7° South in Autumn	16° South in Winter	5° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Esmeraldas, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Esmeraldas, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Esmeraldas, Ecuador

The city of Esmeraldas is situated in the northwestern coastal region of Ecuador, near the mouth of the Esmeraldas River where it meets the Pacific Ocean. The topography around Esmeraldas presents a diverse landscape characterized by coastal plains that gradually rise into rolling hills and eventually into the western foothills of the Andes Mountains as one moves inland.

Coastal Plains and River Valley

The immediate area surrounding Esmeraldas consists primarily of low-lying coastal plains. These flat to gently undulating terrains extend several kilometers inland from the shoreline. The Esmeraldas River has formed a broad alluvial valley that cuts through these plains, creating fertile soils but also areas prone to seasonal flooding. The elevation in these coastal areas typically ranges from sea level to about 100 meters above sea level.

Transitional Hilly Terrain

Moving eastward from the coast, the landscape transitions into more pronounced hills with moderate slopes. These hills generally range from 100 to 400 meters in elevation and feature a mix of forested areas and cleared land used for agriculture. This undulating terrain creates a patchwork of microclimates and varying soil conditions. The hills become progressively higher and steeper as one moves further inland toward the Andean foothills.

Vegetation and Land Cover

The region around Esmeraldas features tropical vegetation, with areas of rainforest, especially in the eastern portions where precipitation increases with elevation. Closer to the coast, the natural vegetation has been significantly modified by human activities, including agriculture, urban development, and resource extraction. Mangrove ecosystems can be found along the coast and river estuaries.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic development, several areas around Esmeraldas present favorable conditions: The coastal plains to the south and southeast of Esmeraldas city offer extensive flat terrain that would minimize grading and site preparation costs for solar installations. These areas have already seen some level of clearing for agricultural use, potentially reducing environmental impact concerns related to forest clearing. The moderately elevated hills (100-300m) that begin approximately 15-25 kilometers inland from Esmeraldas provide another promising option. These locations offer improved exposure with minimal shading concerns, while still being accessible for infrastructure development. The southwestern approach to the city, where the terrain rises gradually, presents particularly suitable conditions. Areas to avoid would include the steeper slopes of the eastern hills, where installation would be technically challenging and potentially environmentally disruptive. Similarly, the immediate riverine areas along the Esmeraldas River should be avoided due to flooding risks and the ecological importance of these riparian zones.

Infrastructure Considerations

The existing road network radiating from Esmeraldas provides access to many of the potentially suitable areas for solar development. The presence of transmission infrastructure connecting Esmeraldas to the national grid is another advantage for areas closer to these existing power corridors. The port facilities at Esmeraldas could potentially facilitate the import of solar equipment. The combination of available flat to gently sloping terrain, relatively sparse population in certain areas outside the urban center, and existing infrastructure makes the broader Esmeraldas region worthy of consideration for large-scale solar PV development, particularly in the southern and southeastern plains and the moderately elevated hills beyond the immediate coastal zone.
