Imbabura, Ecuador presents an excellent location for year-round solar energy generation through photovoltaic (PV) systems. Located in the tropics where sunlight remains consistent throughout most of the year, this region experiences seasons characterized more by wet and dry periods rather than the traditional temperature-based seasons found in other climates.

Solar Energy Production Potential

The solar energy output at this location demonstrates strong and consistent performance across all seasons. The data shows that solar panels can generate substantial electricity throughout the year:

• Summer: 4.18 kWh per day per kW of installed solar capacity
• Autumn: 4.38 kWh per day per kW of installed solar capacity
• Winter: 3.97 kWh per day per kW of installed solar capacity
• Spring: 4.25 kWh per day per kW of installed solar capacity

Autumn emerges as the most productive season for solar generation, followed closely by spring and summer. Even during winter, the lowest-producing season, the output remains robust at nearly 4 kWh per day per kW installed. This consistency makes Imbabura an attractive location for solar investments, as energy production doesn't experience the dramatic seasonal variations seen in higher latitude locations.

Optimal Panel Installation

For fixed panel installations at this location, the ideal angle to tilt solar panels for maximum year-round production is 0 degrees. This means panels should be installed completely flat or horizontal to the ground. This optimal angle is calculated by analyzing daily solar elevation angles, determining optimal panel tilt for each day, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several significant environmental and weather factors could potentially impede solar production in Imbabura and require careful consideration during installation planning. Cloud Cover and Wet Season Impacts The tropical climate brings distinct wet and dry seasons, with the wet season potentially creating extended periods of cloud cover that can reduce solar irradiance. Dense cloud formations common during rainy periods can significantly decrease energy output even during daylight hours. High Altitude Considerations Imbabura's mountainous terrain and high altitude present unique challenges. While higher altitudes can actually improve solar panel efficiency due to cooler temperatures and thinner atmosphere, they also bring increased exposure to intense UV radiation and more extreme weather conditions including hail, strong winds, and rapid temperature fluctuations. Volcanic Activity The region's proximity to volcanic activity poses a notable risk. Volcanic ash can accumulate on solar panels, creating a film that blocks sunlight and dramatically reduces energy production. Even light ash deposits can cause significant efficiency losses.

Preventative Measures for Enhanced Performance

Several strategies can help maximize solar energy production despite these environmental challenges. Robust Cleaning and Maintenance Systems Installing automated cleaning systems or scheduling regular manual cleaning becomes crucial, particularly during and after volcanic ash events or dusty dry seasons. Easy access pathways should be incorporated into the installation design to facilitate regular maintenance. Enhanced Structural Design Solar mounting systems should be engineered to withstand high winds, hail, and seismic activity common in mountainous volcanic regions. Using reinforced mounting structures and selecting panels with higher impact resistance ratings helps ensure long-term durability. Strategic Panel Positioning While the optimal tilt angle is 0 degrees for maximum energy production, slight tilting (5-10 degrees) might be considered in areas prone to ash accumulation, as this can help with natural cleaning during rainfall while minimally impacting overall energy output. Advanced Monitoring Systems Implementing comprehensive monitoring systems allows for quick identification of performance issues related to weather events or ash accumulation. This enables prompt maintenance responses to restore optimal energy production quickly. The combination of consistent tropical sunlight and proper installation techniques makes Imbabura a highly viable location for solar energy generation, provided that installations account for the specific environmental challenges present in this unique Ecuadorian setting.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

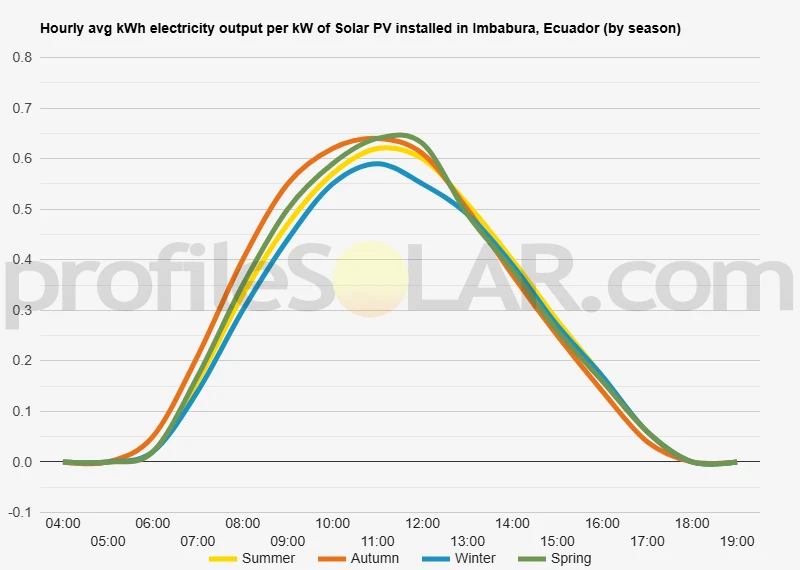

Solar output per kW of installed solar PV by season in Imbabura

Seasonal solar PV output for Latitude: 0.377, Longitude: -78.3276 (Imbabura, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 0° in Imbabura, Ecuador

To maximize your solar PV system's energy output in Imbabura, Ecuador (Lat/Long 0.377, -78.3276) throughout the year, you should tilt your panels at an angle of 0° for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Imbabura, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Imbabura, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 0° tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° North in Summer	6° South in Autumn	16° South in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Imbabura, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Imbabura, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Imbabura, Ecuador

Topographical Features Around Imbabura

The region around Imbabura in northern Ecuador presents a dramatic and varied landscape dominated by volcanic peaks and high-altitude plateaus. The area sits within the Andean highlands, where the imposing Imbabura volcano rises to over 4,600 meters above sea level, creating a prominent landmark that influences the entire surrounding terrain. This stratovolcano, along with nearby peaks like Cotacachi, forms part of the volcanic arc that characterizes Ecuador's mountainous backbone.

The topography features steep-sided volcanic slopes that descend into relatively flat intermontane valleys and basins. These valleys, carved by ancient glacial activity and ongoing erosion, create pockets of gentler terrain between the towering peaks. The landscape transitions from rugged mountainous terrain to more moderate rolling hills as one moves away from the immediate vicinity of the major volcanic centers.

Lake San Pablo, situated at the base of Imbabura volcano, represents one of the most significant geographical features in the region. This glacial lake occupies a natural depression and is surrounded by relatively level terrain that contrasts sharply with the steep volcanic slopes rising dramatically behind it. The lake's presence creates a unique microclimate and influences local weather patterns.

Elevation and Terrain Characteristics

The elevation around Imbabura varies considerably, ranging from approximately 2,200 meters in the lower valleys to over 4,600 meters at the volcanic peaks. This significant elevation change occurs over relatively short horizontal distances, creating steep gradients and challenging terrain for development. The volcanic nature of the landscape has produced soils derived from weathered lava and ash deposits, which vary in stability depending on their age and composition.

Numerous quebradas (ravines) and small river valleys cut through the terrain, draining rainfall and snowmelt from the higher elevations toward larger river systems. These drainage patterns create a complex network of ridges and valleys that can present both opportunities and challenges for large-scale infrastructure development.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found in the broader valley floors and plateau areas that extend northeast and southeast of the main volcanic peaks. These areas offer several advantages including more stable geological conditions, gentler slopes that facilitate construction and maintenance access, and reduced exposure to the extreme weather conditions that can occur at higher elevations.

The Otavalo Valley, which stretches northward from Lake San Pablo, presents particularly favorable conditions with its relatively flat terrain and established infrastructure connections. This valley floor provides extensive areas of suitable land that could accommodate large solar arrays while remaining at manageable elevations that avoid the harsh conditions found on the upper volcanic slopes.

Areas to the east of Imbabura volcano, where the terrain transitions toward the Amazon basin, offer another promising zone. Here, the landscape becomes less dominated by steep volcanic slopes and features more rolling hills and broader valleys. The gradual elevation changes in this direction create stable platforms suitable for solar installations while maintaining good accessibility for construction and ongoing operations.

The southern approaches toward Quito also present viable options, particularly where the inter-Andean valley system provides flatter terrain between the major volcanic peaks. These areas benefit from existing transportation infrastructure and electrical grid connections that would support large-scale solar development while avoiding the most challenging topographical obstacles presented by the immediate volcanic slopes.
