Jipijapa, Manabí, Ecuador presents a moderately favorable location for year-round solar PV energy generation. Located in the tropics at coordinates -1.3485, -80.5796, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than traditional temperature variations.

Solar Energy Production Potential

The solar energy output at Jipijapa varies seasonally, with autumn providing the highest production at 4.63 kWh per day per kW of installed solar capacity. Summer follows closely with 4.38 kWh/day, while spring generates 4.10 kWh/day. Winter shows the lowest output at 3.57 kWh/day per kW installed. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 1 degree North. This minimal tilt angle is calculated to maximize total annual solar production by accounting for the location's proximity to the equator and seasonal sun path variations.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Jipijapa:

• High humidity and moisture: The tropical climate creates conditions that can lead to corrosion of electrical components and reduced panel efficiency
• Heavy rainfall during wet seasons: Intense precipitation can temporarily reduce solar output and may cause water infiltration issues
• Salt air exposure: Being relatively close to the Pacific coast, salt-laden air can accelerate corrosion of metal components
• Dust and particulate accumulation: Dry periods may lead to dust buildup on panels, reducing light transmission

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Use marine-grade components: Install corrosion-resistant mounting systems, wiring, and electrical enclosures rated for high-humidity coastal environments
• Implement proper drainage: Design mounting systems with adequate water runoff to prevent pooling and ensure quick drying after rainfall
• Regular maintenance scheduling: Establish routine cleaning protocols to remove dust, debris, and any organic growth that may accumulate on panel surfaces
• Enhanced sealing: Use high-quality weatherproof seals and gaskets for all electrical connections and junction boxes

With proper installation techniques and regular maintenance, Jipijapa can provide reliable solar energy generation throughout the year, with autumn and summer months offering the most productive periods for solar PV systems.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

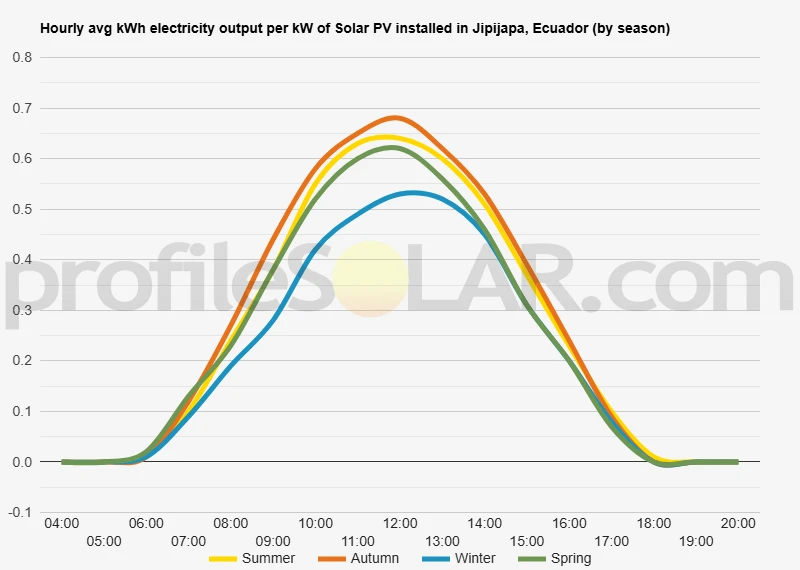

Solar output per kW of installed solar PV by season in Jipijapa

Seasonal solar PV output for Latitude: -1.3485, Longitude: -80.5796 (Jipijapa, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° North in Jipijapa, Ecuador

To maximize your solar PV system's energy output in Jipijapa, Ecuador (Lat/Long -1.3485, -80.5796) throughout the year, you should tilt your panels at an angle of 1° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jipijapa, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jipijapa, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	7° North in Autumn	17° North in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jipijapa, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jipijapa, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jipijapa, Ecuador

Topographical Features Around Jipijapa

Jipijapa sits in the coastal province of Manabí in western Ecuador, positioned within a region characterized by rolling hills and undulating terrain that transitions between the Pacific coastal lowlands and the foothills of the western Cordillera. The landscape around this area features a series of moderate elevations, with the town itself perched at approximately 400 meters above sea level on terrain that gently rises from the coastal plains to the east.

The topography consists primarily of sedimentary hills and valleys that have been shaped by centuries of erosion from seasonal rainfall patterns. These formations create a patchwork of rounded ridges separated by shallow valleys, with slopes that are generally moderate rather than steep. The terrain becomes progressively more elevated as one moves inland toward the east, while descending toward the Pacific coastal plain to the west and southwest.

The geological foundation of the region consists mainly of marine sedimentary rocks from the Tertiary period, which have weathered to create relatively stable soil conditions. This underlying geology contributes to the area's characteristic rolling topography, with few dramatic elevation changes or steep escarpments that would complicate large-scale development projects.

Climate Influence on Terrain

The region experiences a tropical dry climate that significantly influences both the natural vegetation patterns and the overall landscape character. During the wet season, the hills support deciduous dry forest vegetation, while the dry season reveals more sparse vegetation cover. This seasonal variation in plant cover affects soil stability and erosion patterns, creating terrain that is generally well-drained with moderate slopes.

The prevailing weather patterns have created a landscape where water drainage follows predictable valley systems, leaving the higher elevations relatively dry for much of the year. This climate-terrain interaction results in areas of exposed or lightly vegetated hillsides that could be suitable for development purposes.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations around Jipijapa would be the broad, gently sloping plateaus and ridge tops that extend to the north and east of the town. These elevated areas offer several advantages including consistent exposure to solar radiation, good natural drainage, and slopes that are gentle enough to accommodate large arrays without excessive grading requirements.

The rolling hills immediately northeast of Jipijapa present particularly favorable conditions, with their south-facing slopes providing optimal solar exposure while maintaining grades that are manageable for construction and maintenance access. These areas typically feature stable soils derived from the underlying sedimentary bedrock, reducing concerns about ground stability for heavy installations.

Areas to the southeast also show promise, particularly the broader valley floors and gentle hillsides that offer substantial flat or near-flat terrain. These locations benefit from being somewhat sheltered from coastal weather patterns while still maintaining the clear atmospheric conditions favorable for solar energy generation.

The western approaches toward the coast, while offering some suitable terrain, may be less ideal due to the potential for increased atmospheric moisture and the presence of more variable microclimates influenced by proximity to the Pacific Ocean. However, some elevated areas in this direction could still provide viable development sites, particularly those with good drainage and stable soil conditions.

Infrastructure considerations also favor the areas north and east of Jipijapa, where existing road networks provide better access for construction and maintenance activities. The terrain in these directions generally requires less modification to accommodate the access roads and transmission infrastructure necessary for large-scale solar installations.
