La Joya de Los Sachas, Ecuador presents a generally favorable location for year-round solar PV energy generation, with consistent performance across all seasons due to its tropical positioning near the equator.

Solar Energy Performance

The location demonstrates reliable solar energy output throughout the year, with daily electricity generation ranging from 4.24 kWh to 5.21 kWh per kilowatt of installed solar capacity. Spring emerges as the most productive season at 5.21 kWh/day per kW, followed by summer at 4.79 kWh/day per kW. Winter and autumn show slightly lower but still substantial output at 4.27 kWh/day and 4.24 kWh/day per kW respectively. For fixed panel installations at this location, the ideal angle to tilt panels to maximize total year-round production is 0 degrees, meaning panels should be installed completely flat. This horizontal positioning optimizes solar collection given the location's proximity to the equator.

Environmental and Weather Challenges

Several significant factors could impede solar production at La Joya de Los Sachas:

• Heavy rainfall during wet seasons can reduce solar irradiance and create persistent cloud cover
• High humidity levels typical of tropical climates may cause condensation on panels
• Dense vegetation growth in the tropical environment can create shading issues
• Volcanic ash from nearby Andean volcanoes may settle on panels, reducing efficiency
• Frequent thunderstorms during wet periods can pose equipment risks

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow for natural cleaning from rainfall
• Use high-quality weatherproof mounting systems designed for tropical climates
• Implement regular cleaning schedules during dry periods to remove accumulated dust, ash, or organic debris
• Ensure proper vegetation management around the installation site to prevent shading
• Install surge protection and grounding systems to protect against lightning strikes during thunderstorms
• Consider anti-reflective coatings on panels to improve performance during partially cloudy conditions

Despite these challenges, the consistent solar output throughout the year makes La Joya de Los Sachas a viable location for solar energy projects, with spring and summer offering the highest generation potential.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

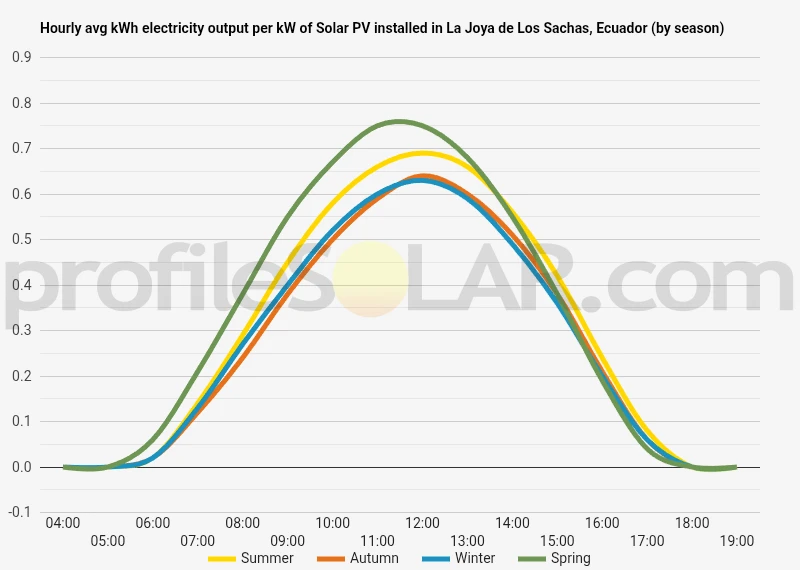

Solar output per kW of installed solar PV by season in La Joya De Los Sachas

Seasonal solar PV output for Latitude: -0.297, Longitude: -76.8596 (La Joya De Los Sachas, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 0° in La Joya De Los Sachas, Ecuador

To maximize your solar PV system's energy output in La Joya De Los Sachas, Ecuador (Lat/Long -0.297, -76.8596) throughout the year, you should tilt your panels at an angle of 0° for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for La Joya De Los Sachas, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in La Joya De Los Sachas, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 0° tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	7° North in Autumn	16° North in Winter	6° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in La Joya De Los Sachas, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in La Joya De Los Sachas, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around La Joya De Los Sachas, Ecuador

Topographical Characteristics of La Joya de Los Sachas

La Joya de Los Sachas sits in the heart of Ecuador's Amazon basin, positioned in the Orellana Province at an elevation of approximately 250 meters above sea level. This region forms part of the vast Amazonian lowlands that stretch eastward from the Andean foothills. The terrain here is characteristically flat to gently undulating, with minimal elevation changes across the landscape. The area represents typical rainforest topography, featuring low-lying plains interrupted by meandering rivers, oxbow lakes, and scattered wetlands. The landscape around La Joya de Los Sachas is dominated by dense tropical rainforest canopy, with the terrain shaped by numerous waterways that drain toward the Amazon River system. The Napo River flows to the north of the settlement, while various smaller tributaries and streams create a network of waterways throughout the region. These water features contribute to the generally humid microclimate and create areas of seasonal flooding in lower-lying sections.

Soil and Ground Conditions

The underlying geology consists primarily of sedimentary deposits from centuries of river activity and organic matter accumulation. Soils in this region tend to be deep but relatively poor in nutrients, as is typical of tropical rainforest environments where most nutrients remain locked in the living biomass rather than the soil itself. The ground conditions are generally stable, though areas closer to rivers and wetlands may experience seasonal saturation and occasional flooding during peak rainfall periods.

Optimal Areas for Large-Scale Solar Development

When considering locations suitable for large-scale solar photovoltaic installations near La Joya de Los Sachas, several topographical factors become crucial. The most promising areas would be those elevated sections that remain above seasonal flood levels while still maintaining relatively flat terrain for efficient panel installation and maintenance access. Areas located on slightly higher ground, particularly those positioned 2-3 kilometers away from major waterways, would offer the best combination of stability and accessibility. These locations typically sit 10-20 meters higher than the immediate river valleys and provide better drainage during the intensive rainfall periods common to this region. The terrain immediately south and southwest of La Joya de Los Sachas presents some of the most suitable topographical conditions. This area features gentle slopes that provide natural drainage while remaining sufficiently flat for large-scale solar array installation. The elevation here rises gradually away from the main river systems, reducing flood risk while maintaining reasonable access for construction and maintenance vehicles.

Infrastructure and Access Considerations

The topography around La Joya de Los Sachas generally supports infrastructure development, with the relatively flat terrain making road construction and utility line installation more straightforward than in mountainous regions. Areas that already have some level of human modification or clearing would be preferable for solar development, as they would require less environmental disruption. Locations within 5-10 kilometers of existing road networks would be most practical for large-scale solar installations. The terrain in these areas typically consists of former agricultural land or areas with secondary forest growth, where the ground has already been cleared and modified. These sites often feature more compact soils and established drainage patterns that would support the infrastructure requirements of major solar installations. The eastern approaches to the settlement, where the land gradually rises toward slightly higher elevations, present particularly favorable conditions. This area combines the benefits of stable, well-drained terrain with proximity to existing infrastructure, making it ideal for large-scale renewable energy development while minimizing environmental impact on pristine rainforest areas.
