Solar Energy Potential in La Troncal, Cañar, Ecuador

La Troncal, Cañar, Ecuador, located at latitude -2.4155 and longitude -79.3363, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns across seasons, with weather patterns more defined by wet and dry periods rather than traditional seasons. The solar production data shows a fairly balanced output across meteorological seasons. Spring yields the highest energy production at 4.48 kWh per day for each kilowatt of installed capacity. This is followed by autumn with 4.32 kWh/day, summer with 4.20 kWh/day, and winter showing the lowest output at 3.82 kWh/day per kilowatt installed. For fixed solar panel installations in La Troncal, Cañar, the ideal tilt angle to maximize year-round energy production is just 2 degrees facing North. This nearly flat orientation reflects the location's proximity to the equator, where the sun passes almost directly overhead throughout the year.

Seasonal Considerations

The relatively small variation between seasonal outputs (with only a 0.66 kWh/day difference between the highest and lowest producing seasons) indicates that La Troncal is a suitable location for consistent year-round solar energy generation. Spring emerges as the optimal season for solar production, while winter months see a slight decrease in generation potential. This consistency is advantageous for energy planning and reduces the need for significant seasonal adjustments or supplementary power sources during particular times of the year.

Potential Challenges and Mitigation Strategies

Despite favorable conditions, several environmental factors could impact solar production in La Troncal:

• Heavy rainfall during the wet season (typically December to May) can reduce solar efficiency by blocking direct sunlight and creating cloud cover. Installing panels with good drainage systems and water-resistant components is essential.
• High humidity levels common in tropical regions can accelerate corrosion of solar equipment and electrical connections. Using marine-grade materials and corrosion-resistant mounting hardware can extend system lifespan.
• Dust accumulation, particularly during the dry season, can gradually reduce panel efficiency. Implementing regular cleaning schedules and possibly automated cleaning systems would help maintain optimal performance.
• Potential for tropical storms, though not as severe as in Caribbean regions, still necessitates robust mounting systems designed to withstand strong winds.

Agricultural activities in the region, particularly sugar cane processing (a major industry in La Troncal), can create airborne particulates that settle on panels. Installing panels at sufficient height and incorporating appropriate cleaning protocols can mitigate this issue. With proper system design addressing these environmental factors, La Troncal presents an excellent opportunity for solar energy development with remarkably consistent year-round production potential.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

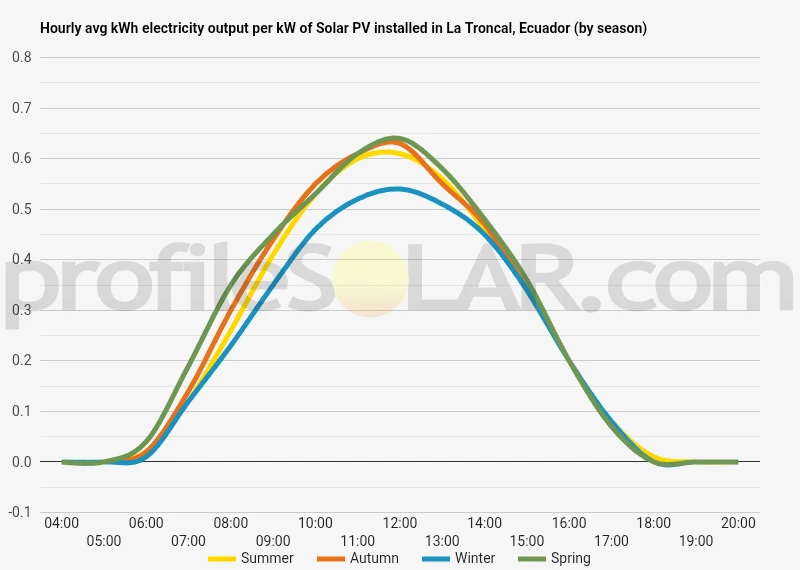

Solar output per kW of installed solar PV by season in La Troncal

Seasonal solar PV output for Latitude: -2.4155, Longitude: -79.3363 (La Troncal, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 2° North in La Troncal, Ecuador

To maximize your solar PV system's energy output in La Troncal, Ecuador (Lat/Long -2.4155, -79.3363) throughout the year, you should tilt your panels at an angle of 2° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for La Troncal, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in La Troncal, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 2° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	8° North in Autumn	18° North in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in La Troncal, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in La Troncal, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around La Troncal, Ecuador

La Troncal, Ecuador sits in a fascinating geographical transition zone between the western lowlands and the Andean foothills in the Cañar Province. The terrain around La Troncal is predominantly characterized by gently rolling plains that gradually rise toward the east, where the impressive Andean mountains begin their dramatic ascent. This transitional landscape creates a varied topography with elevations ranging from approximately 75 to 200 meters above sea level in the immediate vicinity of the town. The western and southwestern areas surrounding La Troncal feature relatively flat agricultural lands, dominated by sugar cane plantations that benefit from the rich alluvial soils deposited by the regional river systems. These flat expanses stretch toward the Guayas River basin, eventually reaching the coastal plains of Ecuador. The terrain here is minimally interrupted by significant hills or depressions, creating large continuous areas of level ground.

River Valleys and Water Features

Several rivers traverse the region, including the Bulubulu River and its tributaries, which have carved shallow valleys through the landscape. These waterways have created natural divisions in the topography, with some areas featuring riverine terraces and gently sloping banks. During rainy seasons, some low-lying areas may experience temporary flooding, particularly in the western sections where drainage can be slower due to the flatter terrain. Moving eastward from La Troncal, the landscape becomes increasingly undulated, with more pronounced hills and small valleys as the terrain begins its transition toward the Andean highlands. These foothills represent the beginning of Ecuador's mountainous spine and rise more steeply, with some hills reaching several hundred meters above the town's elevation.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic development, the western and southwestern plains surrounding La Troncal present the most favorable conditions. These areas offer several advantages that make them particularly suitable for solar energy infrastructure: The flat or gently sloping terrain minimizes the need for extensive grading and earthwork during construction, significantly reducing development costs. These open agricultural areas also provide large, contiguous spaces that could accommodate substantial solar arrays without requiring fragmented installations across multiple separated parcels. The existing road network that services the agricultural industry in these western plains would facilitate both construction access and ongoing maintenance operations for solar facilities. Additionally, these areas generally have fewer natural obstacles like steep slopes or dense vegetation that would complicate development. The slightly elevated plateaus to the west of town, which rise just enough to avoid any potential flooding concerns, represent particularly prime locations. These areas combine the advantages of flat terrain with improved drainage characteristics and minimal shading from distant topographical features. Areas to avoid would include the river valleys themselves, particularly those sections prone to seasonal flooding, and the more pronounced hills to the east where increased slope angles would complicate construction and potentially create mutual shading among solar panels. The steeper eastern foothills, while scenic, would present significant engineering challenges and increased development costs for large-scale solar projects. The northwestern sector extending from La Troncal toward the neighboring municipality of La Puntilla offers perhaps the optimal balance of favorable topography, existing infrastructure access, and suitable land area for substantial solar development. This region features some of the most consistently level terrain in the vicinity while maintaining sufficient elevation to avoid hydrological concerns.
