Location estimate

Machala

El Oro · Ecuador

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

4.24

kWh/day

Autumn

4.34

kWh/day

Winter

4.34

kWh/day

Spring

4.67

kWh/day

Shared scale: 0–5.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Machala, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 4.24 4.24 × 1 kWp = 4.24 kWh/day
Autumn 4.34 4.34 × 1 kWp = 4.34 kWh/day
Winter 4.34 4.34 × 1 kWp = 4.34 kWh/day
Spring 4.67 4.67 × 1 kWp = 4.67 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
4.24
Autumn · kWh/day
4.34
Winter · kWh/day
4.34
Spring · kWh/day
4.67

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 3 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
3°
Facing direction
North

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Dec, Jan, Feb
12°South
Autumn
Mar, Apr, May
10°North
Winter
Jun, Jul, Aug
19°North
Spring
Sep, Oct, Nov
3°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Machala, El Oro, Ecuador.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 12 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

12° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 10 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

10° tilt · North

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 19 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

19° tilt · North

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 3 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

3° tilt · South

Illustrative direction; exact azimuth not recorded.

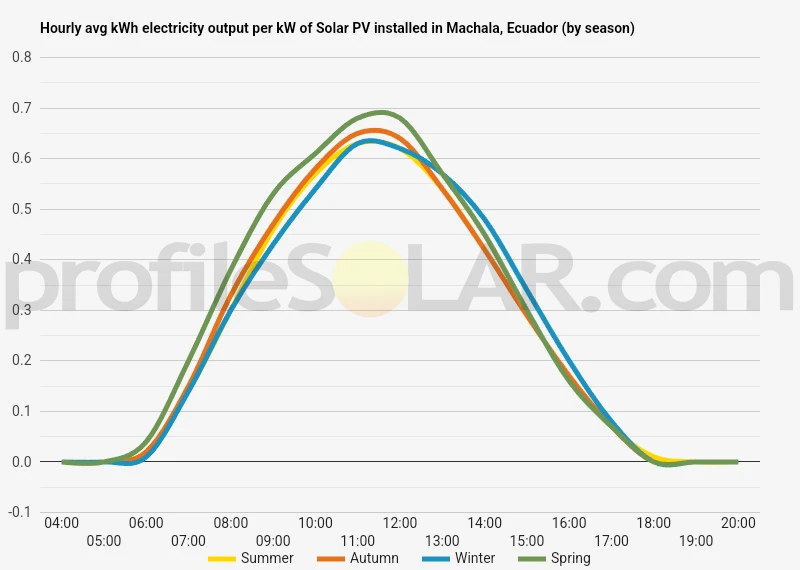

Historical hourly-by-season solar output chart for Machala, Ecuador. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Machala, Ecuador

Hourly profiles by season — Machala, Ecuador · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Machala, Ecuador · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Machala

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 2.05 m

Proportional side viewDesign sun: ≈ 63.28° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 0.05 m
Added margin
≈ 0 m
Gap including margin
≈ 0.05 m
Panel horizontal footprint
≈ 2 m
Panel vertical rise
≈ 0.1 m
Pitch before margin
≈ 2.05 m

Simplified level ground, equator-facing cross-section. Approximate Southern Hemisphere winter solstice at solar noon (day 172). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
3°
Added margin
0 m
Latitude from the catalogue
-3.265600000000000000° (Southern Hemisphere)
Panel horizontal footprint
1.9972590695091477 m
Panel vertical rise
0.10467191248588766 m
Calculated clear gap
0.05267970341995375 m
Pitch before margin
2.049938772929101 m
Gap including margin
0.05267970341995375 m
Row pitch including margin
2.049938772929101 m
Design solar elevation
63.28461715318636°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Machala

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Machala’s recorded solar profile is relatively even through the year. Estimated average daily electricity yields are 4.67 kWh/day per kW of rated capacity in spring, 4.34 in both autumn and winter, and 4.24 in summer. Spring is the highest of these averages, with a modest difference between the seasonal means.

Read the full article

The figures describe electrical energy per unit of installed capacity. They do not imply constant sunshine or identical daily production. Near the equator, the recorded summer and winter labels should not be read as a large temperate-style swing in day length. Comparing the estimates with a building’s consumption still matters, especially where demand continues after daylight generation ends. The fixed-panel reference is a 3-degree tilt facing North. This nearly horizontal setting is a broad output-weighted reference based on simplified solar geometry. The actual mounting arrangement, surface drainage and row spacing influence a working installation. The seasonal figures do not quantify an adjustment gain or establish a different south-facing preference for nearby slopes. Machala’s coastal plain is a landscape of developed land, banana cultivation, aquaculture, mangroves and estuarine channels. The local planning account connects its low relief and fine, readily saturated ground with inundation concerns. For ground-mounted PV, equipment position and access relative to water are therefore practical questions alongside sunlight. A broad open view does not establish that a site just inland is flood-safe. Similarly, proximity to the coast does not supply a uniform salt-exposure level for every roof. Components and maintenance should respond to actual exposure and equipment guidance. Cleaning addresses deposits on the surface; it cannot remove cloud or prevent changes in the light available during a wet period. At an urban property, adjoining buildings and trees may be the immediate source of shadows. A cloud’s effect on an array is different from a fixed roof obstruction, so microinverters or optimisers cannot be assigned a general cloud-mitigation gain. The useful energy expectation remains the relatively even seasonal profile, applied to a specific layout with a clear understanding of its water and sunlight setting.

Topography around Machala

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Machala occupies a coastal depositional plain in southwestern Ecuador. The municipal territorial plan describes alluvial material transported from higher country towards the ocean, producing a low-gradient landscape with fine-textured ground in many areas. The same account notes that clay-rich material can saturate readily during wet conditions. Flatness is therefore an important description of the setting, rather than a guarantee of easy construction.

Read the full topography description

The plain contains a closely connected water and production landscape. Banana agriculture and shrimp ponds occur alongside surviving mangroves and estuarine channels. These uses create quite different surfaces: a cultivated field, a pond embankment and a developed urban plot cannot be treated as interchangeable open ground. The municipal environmental account names El Macho, Cazacamarones, Nuevo Pilo and Huaylá among local esteros and channels. It also describes the loss of mangrove through aquaculture expansion and the importance of remaining coastal vegetation. The estuarine network and its habitat functions are consequently central to the terrain account, rather than empty space around the city. For solar, the relevant physical distinction is between the exact roof or ground surface and its surrounding drainage. Modest variations in level may change where runoff gathers, but being slightly higher cannot be used alone to declare a parcel safe from inundation. An existing roof has a separate sunlight horizon determined by neighbouring structures and vegetation. The more distant rise towards the Andean foothills provides regional context, but it cannot select east or northeast of Machala as a preferred development sector. Nor does the coastal plain justify extending a site recommendation towards another town. A meaningful layout would fit the actual ground, preserve water routes and recognise the existing agricultural, aquaculture and mangrove landscape.

Technical location reference

Approximate map point used for Machala, Ecuador

This coordinate is the calculation reference for Machala, Ecuador. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
-3.265600000000000000, -79.964400000000000000
Originally displayed coordinate
lat-3.2656 / long-79.9644

How the estimate works

How this Machala estimate was calculated

Here is how I calculated the location estimate for Machala, Ecuador.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Machala Location estimate includes and leaves out

Use the Machala figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
