Naranjal, Guayas, Ecuador presents a highly favorable location for year-round solar PV energy generation. Located in the tropics at coordinates -2.6654, -79.6204, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than the traditional temperature variations found in temperate regions.

Solar Energy Production Performance

The solar energy output at Naranjal demonstrates excellent consistency across all seasons. Spring emerges as the most productive period, generating 4.46 kWh per day per kW of installed solar capacity. Autumn follows closely with 4.32 kWh/day, while summer produces 4.22 kWh/day. Even during the least productive season of winter, the location still generates a respectable 3.79 kWh/day per kW installed. This seasonal variation of less than 18% between the best and worst performing periods indicates remarkable stability for solar energy production. The relatively small fluctuation means that solar installations can provide reliable, predictable energy output throughout the entire year.

Optimal Panel Configuration

For maximum year-round solar production at Naranjal, Guayas, fixed solar panels should be tilted at just 2 degrees toward the North. This minimal tilt angle reflects the location's proximity to the equator, where the sun travels nearly overhead throughout the year. This shallow angle maximizes total annual energy capture by optimally positioning panels to receive sunlight across all seasons.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this tropical location:

• High humidity and moisture: The tropical climate brings elevated humidity levels year-round, which can lead to moisture accumulation on panels and potentially reduce efficiency
• Intense rainfall during wet seasons: Heavy tropical downpours can temporarily reduce solar output and may cause water-related issues if drainage is inadequate
• Dust and organic debris: The combination of agricultural activity and tropical vegetation can lead to faster accumulation of dirt, pollen, and organic matter on panel surfaces
• Extreme heat: Intense tropical sun can cause panels to operate at higher temperatures, potentially reducing efficiency

Preventative Measures for Optimal Performance

To maximize solar energy production despite these environmental challenges, several installation strategies prove effective:

• Enhanced drainage systems: Install proper guttering and drainage around panel arrays to prevent water pooling and ensure quick runoff during heavy rains
• Regular cleaning schedules: Implement frequent panel cleaning routines to remove dust, organic debris, and moisture spots that can block sunlight
• Improved ventilation: Design installations with adequate airflow beneath panels to reduce operating temperatures and improve efficiency
• Quality mounting systems: Use corrosion-resistant materials designed for tropical climates to withstand high humidity and prevent structural degradation
• Protective coatings: Apply anti-reflective and hydrophobic coatings to panel surfaces to reduce soiling and improve water shedding

Despite these environmental considerations, Naranjal's consistent solar resource and minimal seasonal variation make it an excellent location for solar PV installations. With proper planning and maintenance protocols, solar systems at this location can achieve highly reliable energy production throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

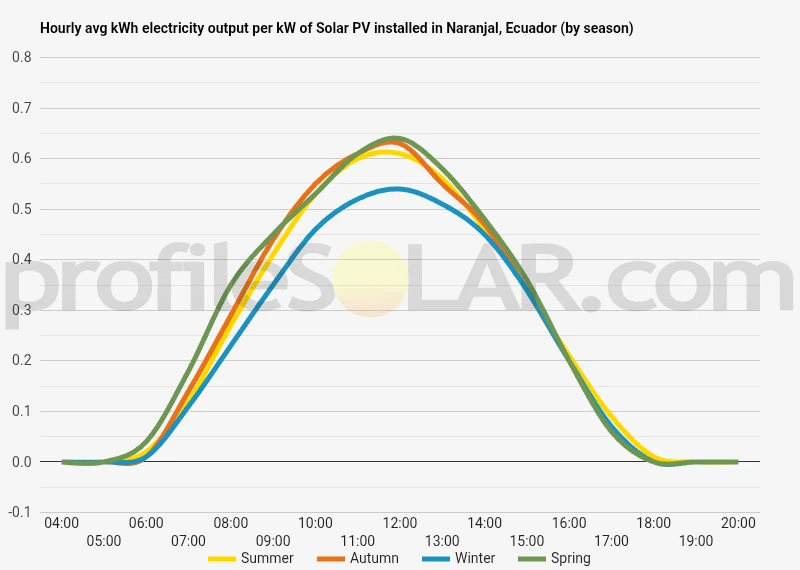

Solar output per kW of installed solar PV by season in Naranjal

Seasonal solar PV output for Latitude: -2.6654, Longitude: -79.6204 (Naranjal, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 2° North in Naranjal, Ecuador

To maximize your solar PV system's energy output in Naranjal, Ecuador (Lat/Long -2.6654, -79.6204) throughout the year, you should tilt your panels at an angle of 2° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Naranjal, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Naranjal, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 2° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	9° North in Autumn	18° North in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Naranjal, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Naranjal, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Naranjal, Ecuador

Topographical Features Around Naranjal

Naranjal sits in the coastal lowlands of Ecuador's Guayas Province, positioned within the broad alluvial plains that characterize much of the country's western coastal region. The terrain around this area is predominantly flat to gently rolling, with elevations typically ranging from sea level to approximately 200 meters above sea level. This relatively low-lying landscape was formed by centuries of sediment deposits from rivers flowing down from the Andes Mountains toward the Pacific Ocean.

The topography transitions gradually from the flat coastal plains in the west toward slightly more undulating terrain as one moves inland toward the east. Small hills and ridges occasionally break up the otherwise gentle landscape, but these elevations rarely exceed 300 meters in height. The region benefits from well-drained soils in many areas, though some zones closer to river systems may experience seasonal flooding during the wet season.

River valleys and waterways create natural corridors through the landscape, with the terrain sloping gently toward these drainage channels. Agricultural lands dominate much of the surrounding area, taking advantage of the fertile soils and relatively flat topography that makes cultivation practical and economically viable.

Optimal Areas for Large-Scale Solar Development

The flat to gently sloping terrain surrounding Naranjal presents excellent opportunities for large-scale solar photovoltaic installations. Areas with slopes of less than 5 degrees are particularly well-suited for solar development, as they minimize the need for extensive grading and earthwork while allowing for optimal panel positioning. The coastal plains extending westward from Naranjal offer some of the most favorable conditions, with vast expanses of relatively level ground that could accommodate substantial solar arrays.

Elevated plateaus and gentle ridges in the area also present attractive options for solar development. These slightly higher elevations often provide better drainage characteristics and may experience improved air circulation, which can help maintain optimal operating temperatures for photovoltaic panels. The gradual slopes found on many of these elevated areas are still gentle enough to allow for straightforward installation procedures.

Areas with good road access and proximity to existing electrical infrastructure would be particularly advantageous for large-scale solar projects. The relatively flat terrain makes construction of access roads and transmission lines more straightforward and cost-effective compared to mountainous regions. Agricultural lands that are less intensively cultivated or areas designated for mixed-use development could provide suitable sites without competing directly with prime farming operations.

When selecting specific locations, developers should prioritize areas with stable soils, good drainage, and minimal risk of seasonal flooding. The slightly elevated areas east of Naranjal, while still maintaining gentle slopes, may offer better long-term stability for solar installations compared to the lowest-lying areas near major waterways.
