Location estimate

Naranjito

Guayas · Ecuador

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

4.22

kWh/day

Autumn

4.32

kWh/day

Winter

3.79

kWh/day

Spring

4.46

kWh/day

Shared scale: 0–5.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Naranjito, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 4.22 4.22 × 1 kWp = 4.22 kWh/day
Autumn 4.32 4.32 × 1 kWp = 4.32 kWh/day
Winter 3.79 3.79 × 1 kWp = 3.79 kWh/day
Spring 4.46 4.46 × 1 kWp = 4.46 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
4.22
Autumn · kWh/day
4.32
Winter · kWh/day
3.79
Spring · kWh/day
4.46

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 2 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
2°
Facing direction
North

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Dec, Jan, Feb
13°South
Autumn
Mar, Apr, May
8°North
Winter
Jun, Jul, Aug
18°North
Spring
Sep, Oct, Nov
4°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Naranjito, Guayas, Ecuador.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 13 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

13° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 8 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

8° tilt · North

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 18 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

18° tilt · North

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 4 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

4° tilt · South

Illustrative direction; exact azimuth not recorded.

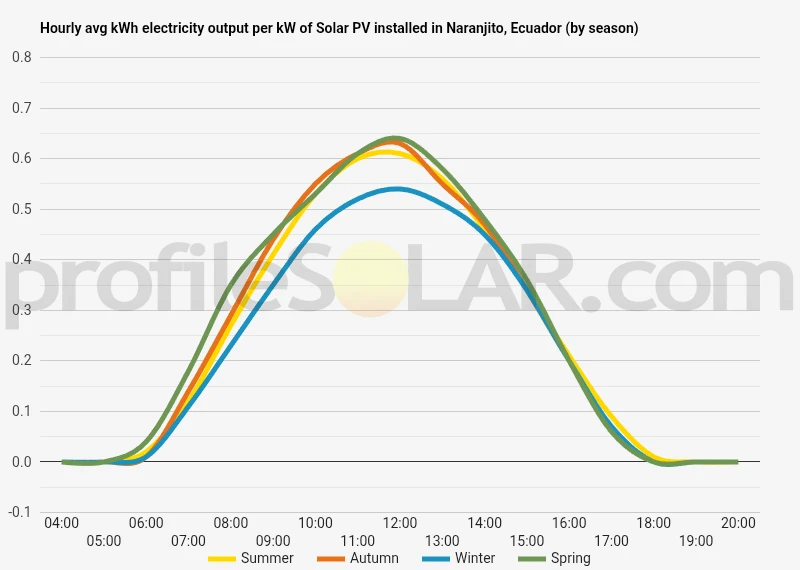

Historical hourly-by-season solar output chart for Naranjito, Ecuador. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Naranjito, Ecuador

Hourly profiles by season — Naranjito, Ecuador · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Naranjito, Ecuador · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Naranjito

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 2.03 m

Proportional side viewDesign sun: ≈ 64.39° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 0.03 m
Added margin
≈ 0 m
Gap including margin
≈ 0.03 m
Panel horizontal footprint
≈ 2 m
Panel vertical rise
≈ 0.07 m
Pitch before margin
≈ 2.03 m

Simplified level ground, equator-facing cross-section. Approximate Southern Hemisphere winter solstice at solar noon (day 172). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
2°
Added margin
0 m
Latitude from the catalogue
-2.165100000000000000° (Southern Hemisphere)
Panel horizontal footprint
1.9987816540381915 m
Panel vertical rise
0.06979899340500194 m
Calculated clear gap
0.033464369650852435 m
Pitch before margin
2.032246023689044 m
Gap including margin
0.033464369650852435 m
Row pitch including margin
2.032246023689044 m
Design solar elevation
64.38511715318634°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Naranjito

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Naranjito sits in Guayas' cultivated lowland and Andean piedmont landscape, where river deposits, terraces and broad spreading surfaces underpin a patchwork of crops. Its near-equatorial solar comparison has a smaller seasonal spread than the dramatic contrasts seen at higher latitudes.

Read the full article

For each 1 kW of rated panel capacity, estimated average daily electricity is 4.22 kWh/day in summer, 4.32 kWh/day in autumn, 3.79 kWh/day in winter and 4.46 kWh/day in spring. Spring is largest, followed by autumn. The four catalogue labels help compare the figures across locations without implying four distinct temperate weather seasons in Naranjito. Our year-round fixed reference is 2° from horizontal, facing North. It is derived through output weighting and simplified solar geometry. That very shallow reference is distinct from the construction of a particular roof, including its pitch and the way water leaves the surface. The official land survey identifies both recent alluvial plain and Andean piedmont within the canton. The Chagüe and Chimbo are important named drainage routes, while sugar cane, banana and cacao appear in the cultivated landscape. Broad, gently varying surfaces can therefore have an active productive use and a specific water history rather than being spare open ground. For a local solar proposal, an existing roof provides a clear surface to compare with the immediate tree and building skyline. A terrace or slight rise does not establish clearer weather or safer ground than the river-side land below it. Keeping those claims separate allows the seasonal figures to remain useful without inventing a preferred elevation band.

Topography around Naranjito

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Naranjito's wider landscape is predominantly depositional: recent alluvial plain and the lower Andean piedmont rather than a sequence of steep hills around the town. Broad surfaces, terraces and river channels create changes within otherwise gentle relief.

Read the full topography description

The official canton survey identifies a smaller area of recent alluvial plain in the northwest, associated with the Milagro and Apoyando rivers. Across much of the piedmont, spreading deposits contain pebbles and cobbles. The Chagüe and Chimbo are important drainage routes in this setting. Cultivation is a strong part of the landscape, including cane and tropical crops such as banana and cacao. Along the Chimbo, present channels, abandoned courses and terraces preserve the river's changing pattern. These forms can be subtle in a broad view while remaining important to drainage and land use. For solar, the gentle regional relief may leave a broad distant horizon, but local trees, crop cover and buildings still affect an actual roof. River terraces should be understood as landscape features rather than automatically better sites: a higher-looking surface does not itself establish flood behaviour, foundation conditions or fewer clouds. The useful starting point is the intended building and its immediate surroundings.

Technical location reference

Approximate map point used for Naranjito, Ecuador

This coordinate is the calculation reference for Naranjito, Ecuador. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
-2.165100000000000000, -79.466600000000000000
Originally displayed coordinate
lat-2.1651 / long-79.4666

How the estimate works

How this Naranjito estimate was calculated

Here is how I calculated the location estimate for Naranjito, Ecuador.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Naranjito Location estimate includes and leaves out

Use the Naranjito figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
