Solar Energy Potential in Nueva Loja, Sucumbíos, Ecuador

Nueva Loja, Sucumbíos, Ecuador, situated almost directly on the equator at coordinates 0.085, -76.8834, offers promising conditions for solar photovoltaic (PV) energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns across seasons. The solar energy production potential varies slightly throughout the year. During autumn, the location experiences its peak production with an average of 5.18 kWh per day for each kilowatt of installed solar capacity. Winter follows closely with 4.92 kWh/day per installed kilowatt. Spring and summer show slightly lower but still substantial production at 4.30 kWh/day and 4.23 kWh/day respectively per kilowatt installed.

Optimal Panel Positioning

For fixed solar panel installations in Nueva Loja, Sucumbíos, the ideal tilt angle to maximize year-round energy production is just 1 degree South. This nearly flat orientation reflects the location's proximity to the equator, where the sun passes almost directly overhead throughout the year.

Environmental and Weather Considerations

Despite the favorable solar conditions, Nueva Loja faces several environmental challenges that could affect solar production:

• Heavy rainfall and high humidity typical of the Amazon rainforest region can reduce panel efficiency and potentially damage equipment if not properly waterproofed
• Frequent cloud cover during the wet season can temporarily reduce solar output
• Dust and pollen accumulation from the surrounding rainforest may coat panels and decrease efficiency
• Potential for flooding in this lowland area could threaten ground-mounted installations

Preventative Measures

To maximize solar energy production in Nueva Loja, Sucumbíos, several preventative measures are recommended:

• Install panels with high-quality waterproof sealing and corrosion-resistant framing to withstand tropical moisture
• Implement regular cleaning schedules to remove accumulated dust, pollen, and organic matter
• Consider elevated mounting structures to protect against potential flooding
• Use micro-inverters or power optimizers to minimize the impact of partial shading from clouds
• Select panels with good performance in diffuse light conditions to maintain production during cloudy periods

With these considerations addressed, Nueva Loja's consistent year-round solar radiation makes it a viable location for solar PV installations, particularly during the autumn and winter periods when production peaks.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

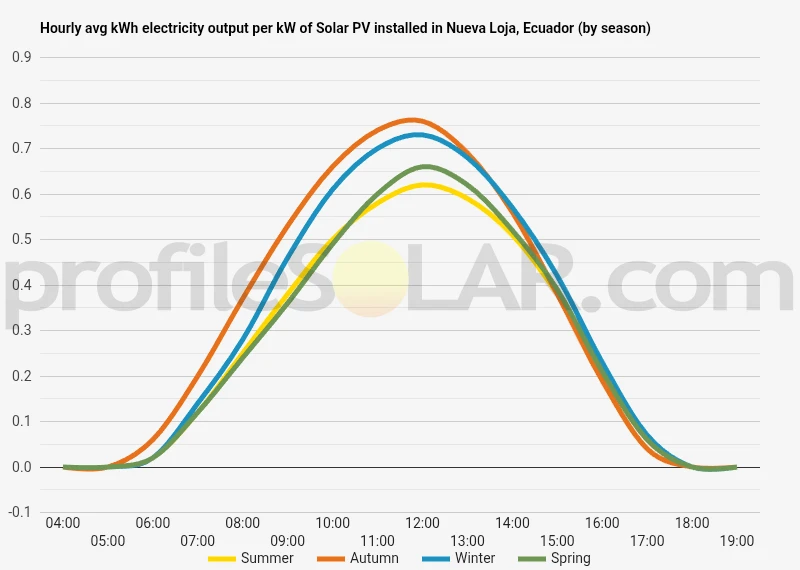

Solar output per kW of installed solar PV by season in Nueva Loja

Seasonal solar PV output for Latitude: 0.085, Longitude: -76.8834 (Nueva Loja, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° South in Nueva Loja, Ecuador

To maximize your solar PV system's energy output in Nueva Loja, Ecuador (Lat/Long 0.085, -76.8834) throughout the year, you should tilt your panels at an angle of 1° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nueva Loja, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nueva Loja, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° North in Summer	6° South in Autumn	16° South in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nueva Loja, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nueva Loja, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nueva Loja, Ecuador

Nueva Loja, also known as Lago Agrio, is situated in the northeastern part of Ecuador in the Sucumbíos Province. The city lies at the edge of the Amazon Basin, nestled in a transitional zone where the eastern foothills of the Andes begin to give way to the vast Amazonian lowlands. This geographical positioning creates a diverse topographical landscape around the city. The terrain surrounding Nueva Loja is predominantly characterized by gently rolling hills and lowland plains. To the west, the landscape gradually rises as it approaches the Andean foothills, with elevations increasing more noticeably as one moves further westward. These hills are typically covered with dense tropical vegetation, a testament to the region's abundant rainfall and humid climate.

Amazon Basin Features

To the east and north of Nueva Loja, the topography flattens considerably as it extends into the heart of the Amazon Basin. This area is marked by extensive lowland plains interspersed with numerous rivers, streams, and seasonal wetlands. The Aguarico River, a significant tributary of the Napo River which eventually flows into the Amazon, runs near the city and has played an important role in the region's development and transportation networks. The landscape is crisscrossed by a complex network of waterways that form part of the upper Amazon drainage system. These waterways have carved shallow valleys throughout the region, creating a gently undulating terrain rather than a completely flat plain.

Vegetation and Soil Conditions

The entire region around Nueva Loja is characterized by lush tropical rainforest vegetation, though significant portions have been cleared for agriculture, oil extraction activities, and urban development. The native forest that remains consists of tall canopy trees with dense undergrowth, creating a multi-layered ecosystem typical of Amazonian rainforests. The soils in this region are generally acidic and relatively poor in nutrients despite the abundant vegetation. This is because most nutrients in rainforest ecosystems are held within the living biomass rather than in the soil itself. When areas are cleared, the thin layer of fertile topsoil can quickly become depleted or eroded by the heavy rainfall.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, the most suitable areas near Nueva Loja would be locations that combine several favorable characteristics: The cleared agricultural lands to the north and northeast of the city offer potential sites for solar development. These areas have already been deforested for farming and ranching, meaning that additional forest clearance would not be necessary. The relatively flat terrain in these areas would minimize the costs associated with land preparation and construction. Some of the higher ground on the western approaches to the city, where hills provide slightly elevated positions, might offer advantages for solar placement. These locations could potentially receive more consistent sunlight exposure throughout the day, particularly if they rise above morning mist or low cloud formations that sometimes develop in the river valleys. Areas along established transportation routes, particularly the E45 highway corridor, might present practical advantages for solar development due to existing infrastructure access. The proximity to roads would facilitate both construction and maintenance of solar installations.

Topographical Challenges

Despite these potential areas, the region does present several topographical challenges for solar PV development. The abundant rainfall and high humidity can affect solar panel efficiency and longevity. Careful site selection would need to consider drainage patterns to avoid areas prone to flooding or waterlogging during the rainy season. Additionally, while some deforested areas exist, large-scale solar developments would need to carefully balance land use considerations in a region that is ecologically sensitive and where forest conservation and restoration are increasingly prioritized. The optimal approach would likely involve utilizing already disturbed lands rather than clearing additional forest areas. The irregular terrain in some areas would require careful site engineering to maximize solar exposure while minimizing earthworks. Ideally, solar installations would be placed on gently sloping land with a northward or southward aspect (given the equatorial location, both orientations can work effectively) to maximize sun exposure throughout the year.
