Solar Energy Potential in Pedernales, Manabí, Ecuador

Pedernales, Manabí, Ecuador, located at the coordinates 0.0717, -80.0522, presents a promising location for solar PV energy generation throughout the year. Situated almost directly on the equator in the tropics, this coastal town benefits from relatively consistent sunlight patterns, with seasonal variations defined more by wet and dry periods rather than significant changes in daylight duration. The solar energy production potential in Pedernales shows interesting seasonal variations. Spring emerges as the most productive season with an impressive 5.19 kWh per day for each kilowatt of installed solar capacity. Winter follows with 4.60 kWh/day, while summer yields 4.24 kWh/day. Autumn represents the least productive season, though still offering a substantial 3.89 kWh/day.

Optimal Panel Installation

For fixed solar panel installations in Pedernales, Manabí, the ideal tilt angle to maximize year-round energy production is 0 degrees. This flat orientation makes perfect sense given the location's proximity to the equator, allowing panels to capture the maximum amount of solar radiation throughout the year without needing seasonal adjustments. The spring months (March through May) represent the prime period for solar generation in this location, making it an excellent time for maintenance-free operation. Winter months also perform quite well, contrary to what might be expected in non-tropical regions.

Environmental Considerations

Several environmental factors could potentially impact solar production in Pedernales:

• Coastal humidity and salt spray can accelerate corrosion of solar equipment and reduce panel efficiency over time
• The region experiences a rainy season (typically January to April) that may temporarily reduce solar output
• Occasional cloud cover during the wet season can create intermittent production
• The area is prone to earthquakes and tsunamis, which pose physical risks to installations

Preventative Measures

To mitigate these challenges, solar installations in Pedernales should incorporate several protective measures. Marine-grade components and corrosion-resistant mounting hardware are essential given the coastal location. Regular cleaning schedules should be implemented to remove salt deposits from panel surfaces, particularly during drier months when salt accumulation may be higher. Sturdy mounting systems designed to withstand seismic activity are crucial given Ecuador's location in a tectonically active region. Additionally, elevating equipment above potential flood levels provides protection against both tsunamis and seasonal flooding during heavy rainfall periods. Despite these considerations, the consistent year-round solar radiation makes Pedernales an excellent candidate for solar PV installations, with proper design accommodations for local conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

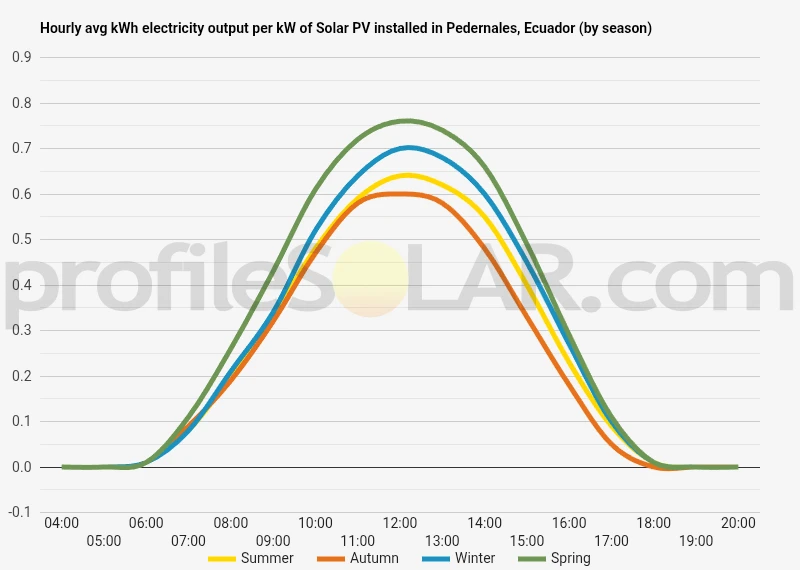

Solar output per kW of installed solar PV by season in Pedernales

Seasonal solar PV output for Latitude: 0.0717, Longitude: -80.0522 (Pedernales, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 0° in Pedernales, Ecuador

To maximize your solar PV system's energy output in Pedernales, Ecuador (Lat/Long 0.0717, -80.0522) throughout the year, you should tilt your panels at an angle of 0° for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pedernales, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pedernales, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 0° tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° North in Summer	6° South in Autumn	16° South in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pedernales, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pedernales, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pedernales, Ecuador

The terrain around Pedernales, Ecuador presents a varied topography that transitions from coastal plains to rolling hills and eventually into more elevated regions. Situated on Ecuador's northern coast in Manabí Province, Pedernales sits where the Pacific Ocean meets the land, creating a diverse landscape that includes beaches, coastal lowlands, and gradually rising inland terrain. Near the coast, the topography is characterized by relatively flat plains with some gentle undulations. These coastal areas have sandy soils and are generally at low elevations above sea level. As one moves inland from Pedernales, the landscape begins to rise more distinctly, developing into a series of hills and small valleys. These hills become progressively higher and more pronounced toward the east, eventually connecting with the foothills of the Andes Mountains further inland.

Coastal Plains and Immediate Surroundings

The immediate vicinity of Pedernales features coastal plains that extend several kilometers inland. These areas have minimal slope and good exposure to the sun throughout the day. The terrain is relatively unobstructed, with natural vegetation consisting primarily of tropical dry forest and scrubland. Some portions of these plains have been cleared for agriculture or urban development, creating open spaces with minimal shading.

Transitional Hills

Beyond the coastal plains, the landscape transitions into a series of rolling hills with moderate elevations. These hills typically range from 100 to 300 meters above sea level and feature varying slope aspects. The hillsides often have southern, eastern, or western exposures that receive substantial direct sunlight. The terrain in these areas is more irregular, with some steeper sections interspersed with gentler slopes and small plateaus.

Inland Elevated Regions

Further inland, approximately 15-20 kilometers from the coast, the topography becomes more pronounced with higher hills and deeper valleys. These areas can reach elevations of 400-600 meters above sea level. The terrain here features a complex pattern of ridgelines and valleys, creating a mixture of favorable and unfavorable conditions for solar exposure depending on specific location and orientation.

Areas Most Suitable for Large-Scale Solar PV

For large-scale solar photovoltaic installations, the most suitable areas near Pedernales would be the coastal plains and gently sloping hills located within approximately 10-15 kilometers of the coastline. These areas offer several advantages: The coastal plains provide large, contiguous tracts of relatively flat land that would minimize site preparation costs and complexity. These areas typically have slopes of less than 5 degrees, ideal for standard solar array configurations. The minimal topographic variation reduces concerns about inter-row shading and allows for optimal spacing of solar panels. The gently sloping hills with southern exposures (in the Northern Hemisphere, even though Pedernales is very close to the equator) offer good potential for solar development. These locations benefit from consistent sun exposure throughout the day and often feature well-drained soils that help prevent flooding issues during the rainy season. Areas with eastern and western exposures on moderate slopes can also be suitable, though they may receive somewhat less total solar radiation compared to south-facing locations. However, given Pedernales' proximity to the equator, the difference in solar radiation between various slope aspects is less pronounced than it would be at higher latitudes. The transitional zone between the coastal plains and the more elevated inland regions offers a good compromise between favorable topography and land availability. These areas often have sufficient elevation to avoid coastal fog that can occasionally affect the immediate shoreline, while still maintaining relatively gentle terrain that is conducive to solar installation. Areas to avoid would include the steeper hillsides found in the more elevated inland regions, ravines and valleys that may experience significant shading during portions of the day, and low-lying areas near streams or rivers that may be subject to flooding during heavy rainfall events.
