Pedro Carbo, Guayas, Ecuador presents a highly favorable location for year-round solar energy generation, benefiting from its tropical position where consistent sunlight is available throughout most of the year, with seasonal variations typically defined by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Output Performance

The solar energy production data for Pedro Carbo demonstrates strong and consistent performance across all seasons. Autumn emerges as the peak production period, generating 4.63 kWh per day per kW of installed solar capacity. Summer follows closely with 4.38 kWh/day per kW, while spring produces 4.10 kWh/day per kW. Winter shows the lowest output at 3.57 kWh/day per kW, though this still represents a respectable energy yield. The relatively small variation between seasons—with only about a 30% difference between the highest and lowest producing periods—indicates excellent year-round solar potential. This consistency makes Pedro Carbo an ideal location for solar installations, as energy production remains reliable throughout the year without dramatic seasonal dips that might affect system economics.

Optimal Panel Configuration

For maximum year-round energy production at Pedro Carbo, Guayas, solar panels should be installed at a fixed tilt angle of 1 degree facing north. This nearly flat configuration reflects the location's proximity to the equator, where the sun travels high overhead throughout the year. This optimal angle is calculated by analyzing daily solar elevation angles, determining daily optimal panel tilts, and weighting these angles according to solar irradiance data to maximize annual energy output.

Environmental and Weather Challenges

Several environmental factors at Pedro Carbo could potentially impact solar energy production and require careful consideration during installation:

• High humidity and moisture: The tropical climate brings elevated humidity levels that can lead to corrosion of metal components, degradation of electrical connections, and potential moisture infiltration into panel frames and junction boxes.
• Intense rainfall during wet seasons: Heavy tropical downpours can cause water accumulation, flooding risks, and increased wear on mounting systems and electrical components.
• Salt air exposure: Being relatively close to the Pacific coast, salt-laden air can accelerate corrosion of metal components and reduce the lifespan of electrical equipment.
• High temperatures: Consistent tropical heat can reduce panel efficiency and stress electrical components over time.

Preventative Installation Measures

To maximize energy production and system longevity in Pedro Carbo's tropical environment, several protective measures should be implemented during solar installation:

• Enhanced drainage systems: Install robust drainage around ground-mounted systems and ensure proper water runoff from roof installations to prevent water accumulation and flooding damage.
• Corrosion-resistant materials: Use marine-grade aluminum mounting systems, stainless steel hardware, and components specifically rated for high-humidity coastal environments to combat salt air and moisture.
• Improved ventilation: Design installations with adequate airflow beneath panels to reduce operating temperatures and improve efficiency, while ensuring proper ventilation of electrical enclosures.
• Waterproof electrical systems: Install all electrical components in weatherproof enclosures with appropriate IP ratings, use marine-grade wiring, and apply additional sealants to all electrical connections.
• Regular maintenance protocols: Establish frequent cleaning schedules to remove accumulated debris, salt deposits, and biological growth that could reduce panel efficiency in the humid tropical environment.

Despite these environmental challenges, Pedro Carbo's excellent solar resource and consistent year-round production make it a highly suitable location for solar energy generation, provided that appropriate protective measures are implemented during installation and maintained throughout the system's operational life.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

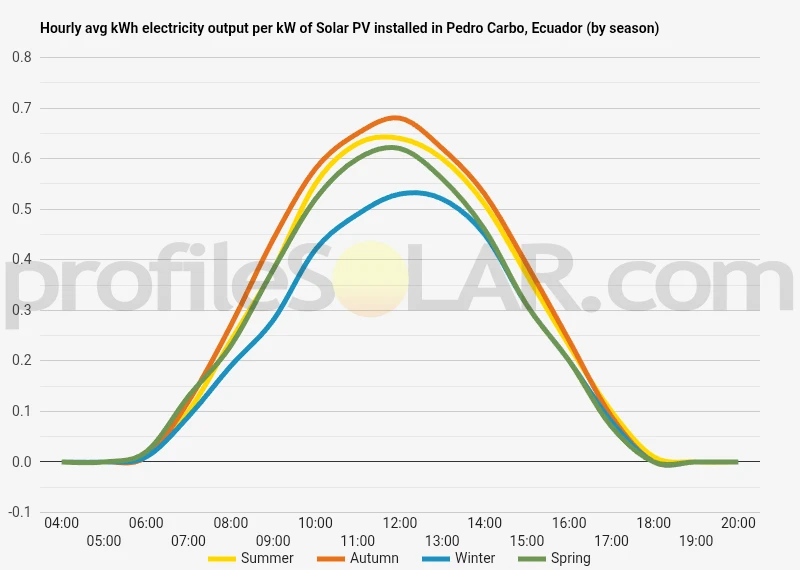

Solar output per kW of installed solar PV by season in Pedro Carbo

Seasonal solar PV output for Latitude: -1.8191, Longitude: -80.2272 (Pedro Carbo, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° North in Pedro Carbo, Ecuador

To maximize your solar PV system's energy output in Pedro Carbo, Ecuador (Lat/Long -1.8191, -80.2272) throughout the year, you should tilt your panels at an angle of 1° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pedro Carbo, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pedro Carbo, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	8° North in Autumn	18° North in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pedro Carbo, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pedro Carbo, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pedro Carbo, Ecuador

Topographical Features of Pedro Carbo Region

Pedro Carbo sits within the coastal lowlands of western Ecuador, positioned in Guayas Province approximately 80 kilometers northeast of Guayaquil. The surrounding landscape is characterized by gently rolling hills and expansive flat plains that form part of the broader Guayas River basin system. This region represents a transitional zone between the Pacific coastal plain and the foothills of the western Cordillera, creating a diverse topographical environment with elevations ranging from near sea level to modest hills reaching several hundred meters. The immediate vicinity of Pedro Carbo features predominantly flat to gently undulating terrain, with the town itself positioned on relatively level ground that facilitates agricultural activities and urban development. The landscape is interspersed with small streams and seasonal waterways that drain toward the larger Daule River system, creating subtle variations in elevation and occasional wetland areas during the rainy season.

Regional Elevation Patterns

Moving eastward from Pedro Carbo, the terrain gradually rises as it approaches the western slopes of the Andes Mountains. These foothills create a series of low ridges and valleys that run roughly north to south, offering varied topographical conditions within a relatively compact area. The western approaches toward the coast maintain their flat character, with extensive plains that stretch toward the Pacific Ocean approximately 100 kilometers away. The drainage patterns in this region have carved gentle valleys between low hills, creating a landscape that alternates between flat agricultural areas and modest elevated zones. These elevation changes are typically gradual rather than steep, with few dramatic topographical features that would present significant obstacles to large-scale development projects.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the expansive flat plains that extend westward and southward from Pedro Carbo. These areas offer minimal topographical constraints, reducing construction and maintenance costs while providing ample space for large arrays. The level terrain minimizes the need for extensive grading or specialized mounting systems that would be required on sloped surfaces. The gently rolling hills to the north and east of Pedro Carbo present secondary opportunities for solar development. While these areas require more careful site planning to optimize panel orientation and minimize shading effects, the gradual slopes could actually provide advantages for proper drainage and panel positioning. South-facing slopes in particular would offer excellent exposure conditions throughout the day. Areas closest to existing infrastructure, including the roads connecting Pedro Carbo to Guayaquil and other regional centers, would be most practical for large-scale solar installations. The flat agricultural plains along these transportation corridors provide ideal conditions combining suitable topography with accessibility for construction equipment and ongoing maintenance operations. The seasonal wetland areas and locations near active waterways should be avoided for solar development, as these zones may experience flooding during heavy rainfall periods and could present environmental sensitivity concerns. Instead, the slightly elevated flat areas that remain well-drained year-round offer the most reliable foundation for long-term solar installations.
