Pichincha, Manabí, Ecuador presents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical zone where sunlight remains relatively consistent throughout the year, this region experiences seasonal variations based more on wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Output Performance

The solar energy production data for this location shows strong and consistent performance across all seasons. Spring delivers the highest output at 4.39 kWh per day per kW of installed solar capacity, closely followed by autumn at 4.37 kWh per day. Summer provides 4.03 kWh per day, while winter shows the lowest but still substantial output of 3.78 kWh per day. This relatively small variation between seasons - only about 16% difference between the highest and lowest performing periods - demonstrates the location's reliability for solar energy generation. The spring and autumn months represent the ideal times for maximum solar production at this site.

Optimal Panel Installation

For fixed panel installations at Pichincha, Manabí, the ideal tilt angle to maximize total year-round solar production is just 1 degree North. This nearly flat positioning takes advantage of the location's proximity to the equator, where the sun passes almost directly overhead throughout much of the year.

Environmental and Weather Challenges

Several significant factors could impact solar production at this tropical location and require careful consideration during installation:

• Heavy rainfall during wet seasons - Can reduce solar irradiance and create soiling issues on panels
• High humidity levels - May cause condensation and potential electrical issues
• Volcanic ash exposure - Pichincha's proximity to volcanic activity poses a unique regional challenge
• Tropical vegetation growth - Fast-growing plants can quickly create shading problems

Preventative Measures for Enhanced Performance

To maximize energy production despite these challenges, several installation strategies prove essential. Installing panels with adequate drainage systems and slight tilting helps prevent water accumulation during heavy rains. Using corrosion-resistant materials and proper sealing protects against humidity-related damage. Regular cleaning schedules become particularly important in this environment to remove volcanic ash, dust, and organic debris that can significantly reduce panel efficiency. Implementing automated cleaning systems or ensuring easy access for manual cleaning helps maintain optimal performance. Careful site selection and vegetation management around solar installations prevents shading issues from rapidly growing tropical plants. Installing monitoring systems allows for quick identification of performance drops that might indicate soiling or other environmental impacts requiring attention. Despite these considerations, Pichincha's consistent tropical sunlight and relatively stable seasonal output make it a highly favorable location for solar PV installations when proper environmental precautions are implemented.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

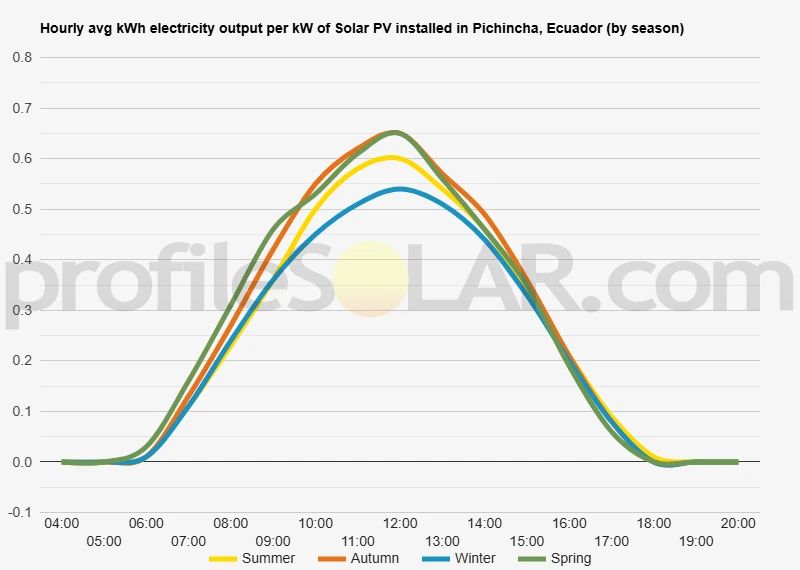

Solar output per kW of installed solar PV by season in Pichincha

Seasonal solar PV output for Latitude: -1.0504, Longitude: -79.8219 (Pichincha, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° North in Pichincha, Ecuador

To maximize your solar PV system's energy output in Pichincha, Ecuador (Lat/Long -1.0504, -79.8219) throughout the year, you should tilt your panels at an angle of 1° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pichincha, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pichincha, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	7° North in Autumn	17° North in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pichincha, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pichincha, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pichincha, Ecuador

Topographical Features Around Pichincha

The area surrounding Pichincha in Ecuador presents a dramatic and varied landscape dominated by the towering presence of Volcán Pichincha, which rises to over 4,700 meters above sea level. This massive stratovolcano sits within the broader context of the Andean mountain range, creating a region characterized by steep slopes, deep valleys, and significant elevation changes over relatively short distances. The immediate vicinity of Pichincha encompasses the western outskirts of Quito, Ecuador's capital city, which itself sits at approximately 2,850 meters elevation on a high plateau. The terrain transitions from the urban areas of Quito eastward toward the volcanic slopes, with the landscape becoming increasingly rugged and mountainous. The western flanks of Pichincha descend toward the coastal lowlands, creating a series of ridges, valleys, and intermediate elevations that form part of the complex topography of Ecuador's western Andean slopes.

Elevation Variations and Terrain Challenges

The topography in this region is notably challenging for large-scale development projects due to the extreme elevation variations and steep gradients. The volcanic nature of the terrain has created numerous ridges, ravines, and uneven surfaces that would require significant grading and preparation for any substantial construction activities. Many areas feature slopes that exceed practical limits for conventional solar installations without extensive terracing or specialized mounting systems. The higher elevations around Pichincha are often shrouded in cloud cover, particularly on the eastern slopes that face the Amazon basin. This creates a complex microclimate pattern where certain areas may experience frequent cloud cover while others remain relatively clear. The volcanic soils, while fertile for agriculture, can present engineering challenges due to their composition and drainage characteristics.

Optimal Areas for Solar Development

Despite the challenging terrain, several areas within the broader Pichincha region show promise for large-scale solar photovoltaic installations. The most suitable locations would likely be found on the intermediate elevation plateaus and gentle slopes that exist between the steep volcanic terrain and the urban areas. These areas typically range from 2,000 to 3,500 meters in elevation and offer more manageable gradients for solar array installation. The western approaches to Pichincha, where the terrain begins to level out toward the coastal plain, present some of the most favorable topographical conditions. These areas feature broader valleys and more gradual slopes that could accommodate extensive solar installations without requiring excessive site preparation. The relatively stable geological conditions in these zones, combined with good accessibility from existing road networks, make them particularly attractive for development. Areas to the southwest and northwest of the main volcanic peak offer additional opportunities, particularly where agricultural lands on gentler slopes could potentially be converted to solar use. These locations benefit from being far enough from the steepest volcanic slopes to avoid major topographical constraints while still maintaining good elevation for optimal solar exposure above the cloud layer that often affects lower elevations.

Infrastructure and Access Considerations

The proximity to Quito provides significant advantages in terms of electrical grid connectivity and transportation infrastructure. Areas within reasonable distance of existing transmission lines and major roadways would be most practical for large-scale solar development. The existing infrastructure supporting the populated areas around Pichincha creates corridors of opportunity where solar installations could be developed with relatively straightforward connections to the electrical grid. The mountainous terrain does present challenges for equipment transportation and maintenance access, making areas with existing road networks or the potential for road development particularly valuable. Locations that balance favorable topography with practical access considerations would represent the optimal sites for significant solar photovoltaic projects in the Pichincha region.
