Portovelo, El Oro, Ecuador presents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical zone at coordinates -3.718, -79.616, this area benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods rather than significant temperature variations.

Solar Energy Production Throughout the Year

The solar energy output at Portovelo remains remarkably consistent across all seasons. Summer produces 4.26 kWh per day per kW of installed solar capacity, while autumn generates slightly more at 4.34 kWh/day. Winter maintains strong production at 4.30 kWh/day, and spring delivers the highest output at 4.66 kWh/day per kW installed. Spring emerges as the optimal season for solar generation at this location, producing roughly 9% more energy than the lowest-producing season. This relatively small seasonal variation makes Portovelo an ideal location for consistent solar energy production throughout the entire year. For maximum energy capture, solar panels should be installed at a fixed tilt angle of 4 degrees facing North. This optimal angle accounts for the location's proximity to the equator and maximizes total annual solar production.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar energy production in Portovelo:

• Heavy rainfall during wet seasons - Can reduce solar irradiance and create cloud cover
• High humidity levels - May cause condensation on panels and reduce efficiency
• Dust and particulate matter - Can accumulate on panel surfaces, blocking sunlight
• Tropical vegetation growth - Fast-growing plants may create shading issues

Preventative Measures for Optimal Performance

To maintain high energy production levels despite these challenges, several installation and maintenance strategies should be implemented. Regular panel cleaning schedules become crucial in this tropical environment, with monthly or bi-monthly cleaning recommended during dry seasons and more frequent cleaning during dusty periods. Proper drainage systems around solar installations help prevent water accumulation that could damage equipment or create breeding grounds for vegetation. Installing panels with adequate spacing allows for better air circulation, reducing humidity-related efficiency losses and preventing moisture buildup. Vegetation management around the solar installation site requires ongoing attention. Regular trimming of fast-growing tropical plants prevents shading issues that could significantly impact energy production. Additionally, selecting panel mounting systems with appropriate ventilation helps combat the effects of high humidity and temperature fluctuations. Despite these environmental considerations, Portovelo's consistent solar output throughout all seasons makes it a highly favorable location for solar PV installations, provided proper maintenance and installation practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

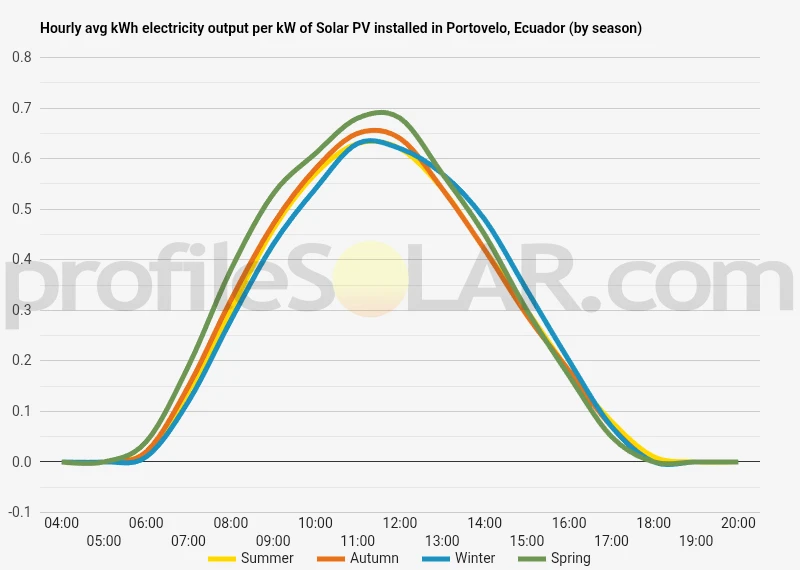

Solar output per kW of installed solar PV by season in Portovelo

Seasonal solar PV output for Latitude: -3.718, Longitude: -79.616 (Portovelo, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Portovelo, Ecuador

To maximize your solar PV system's energy output in Portovelo, Ecuador (Lat/Long -3.718, -79.616) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Portovelo, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Portovelo, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	10° North in Autumn	19° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Portovelo, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Portovelo, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Portovelo, Ecuador

Topographical Features of the Portovelo Region

Portovelo sits in the southern highlands of Ecuador, nestled within the rugged terrain of El Oro Province near the border with Peru. The town is positioned at approximately 1,000 meters above sea level in a mountainous region characterized by steep valleys and dramatic elevation changes. The landscape around Portovelo is dominated by the foothills and lower slopes of the Andes Mountains, creating a complex topography of ridges, valleys, and undulating terrain.

The immediate area features a mix of steep hillsides covered with tropical vegetation and narrow valley floors where small rivers and streams flow toward the Pacific coastal plain to the west. The terrain becomes increasingly mountainous as one moves eastward toward the main Andean range, while westward the land gradually descends toward the coastal lowlands. This positioning creates a transitional zone between the high Andes and the Pacific coastal region, resulting in varied microclimates and diverse topographical features within relatively short distances.

The region's geology reflects its location in an active mining area, with exposed rock formations and areas where historical gold mining activities have modified the natural landscape. Numerous small tributaries and seasonal watercourses cut through the terrain, creating additional topographical complexity with erosion patterns that have carved distinctive features into the mountainous landscape over time.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations near Portovelo would be found on the broader valley floors and gentler slopes that extend westward from the town toward the coastal plain. These areas offer more level terrain that would minimize the engineering challenges and costs associated with mounting solar panels on steep slopes. The valley bottoms, while limited in extent, provide some of the most accessible flat land in this otherwise mountainous region.

South and southwest of Portovelo, the topography becomes somewhat less severe as the land transitions toward the broader Puyango River valley system. This area presents opportunities for solar development on relatively stable, gently sloping terrain that would be more suitable for large arrays than the steep hillsides immediately surrounding the town. The reduced slope angles in these areas would also help optimize solar panel positioning for maximum energy capture throughout the day.

The elevated plateaus and ridge tops in the region, while offering excellent exposure to solar radiation due to their height and lack of shading from surrounding terrain, present significant challenges for large-scale development due to access difficulties and the engineering complexities of building on steep, rocky terrain. However, some of the broader ridgeline areas with gentler gradients could potentially accommodate smaller-scale installations if access roads could be economically constructed.

Areas closer to existing infrastructure, particularly near the road networks that connect Portovelo to larger regional centers, would be most practical for solar development. These locations offer the dual advantages of easier construction access and proximity to electrical transmission infrastructure, which is crucial for connecting large solar installations to the regional power grid. The western approaches to Portovelo, where the terrain begins to level out toward the coastal plain, represent the best combination of suitable topography and infrastructure access for significant solar photovoltaic projects.
