Rocafuerte, Manabí, Ecuador presents a moderately favorable location for year-round solar energy generation, though it's not among the most ideal solar locations globally. Located in the tropics where sunlight remains relatively consistent throughout the year, this area experiences seasonal variations that are more influenced by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Production Throughout the Year

The solar energy output at Rocafuerte varies across the seasons, with autumn being the most productive period at 5.07 kWh per day per kW of installed solar capacity. Summer follows as the second-best season with 4.66 kWh per day per kW. Both winter and spring show similar, lower production levels at 4.00 and 4.01 kWh per day per kW respectively. This seasonal pattern suggests that the period from summer through autumn (roughly June through November) represents the optimal time for solar energy generation at this location. The relatively modest variation between seasons - ranging from 4.00 to 5.07 kWh per day per kW - indicates reasonably consistent solar potential year-round.

Optimal Panel Installation

For fixed solar panel installations at Rocafuerte, Manabí, the ideal tilt angle to maximize total year-round production is just 1 degree North. This nearly flat installation angle reflects the location's proximity to the equator, where the sun's path overhead requires minimal panel tilting to capture optimal sunlight throughout the year.

Environmental and Weather Challenges

Several environmental factors in Rocafuerte could potentially impact solar energy production:

• High humidity and moisture: The tropical climate brings elevated humidity levels that can cause corrosion of electrical components and reduce panel efficiency over time
• Heavy rainfall during wet seasons: Intense tropical downpours can temporarily reduce solar output and may cause water damage if systems aren't properly sealed
• Salt air exposure: Being relatively close to the Pacific coast, salt-laden air can accelerate corrosion of metal components and frames
• Dust and debris accumulation: During dry periods, dust buildup on panels can significantly reduce their efficiency

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several protective measures should be implemented:

• Use marine-grade materials: Install panels with aluminum frames and stainless steel mounting hardware specifically designed to resist salt corrosion
• Ensure proper sealing: All electrical connections and junction boxes should have IP65 or higher weatherproof ratings to prevent moisture infiltration
• Install adequate drainage: Design mounting systems with proper water runoff to prevent pooling around electrical components
• Plan regular cleaning schedule: Establish routine panel cleaning, particularly during dry seasons, to remove dust and debris that reduces efficiency
• Apply protective coatings: Consider anti-corrosive treatments on all metal components and regular inspection of these protective layers

With proper installation techniques and regular maintenance addressing these environmental factors, solar installations in Rocafuerte can achieve reliable energy production throughout the year, taking advantage of the consistent tropical sunlight while mitigating the challenges posed by the coastal tropical climate.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

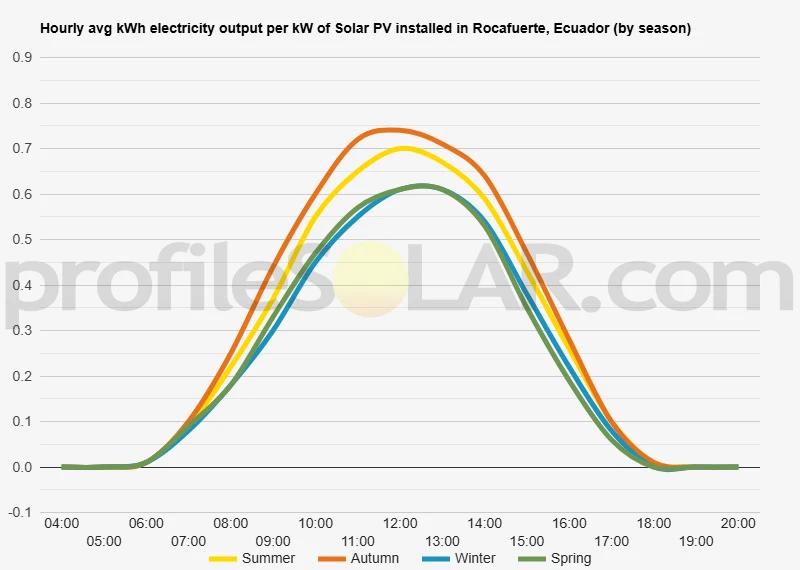

Solar output per kW of installed solar PV by season in Rocafuerte

Seasonal solar PV output for Latitude: -0.9246, Longitude: -80.4456 (Rocafuerte, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° North in Rocafuerte, Ecuador

To maximize your solar PV system's energy output in Rocafuerte, Ecuador (Lat/Long -0.9246, -80.4456) throughout the year, you should tilt your panels at an angle of 1° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rocafuerte, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rocafuerte, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	7° North in Autumn	17° North in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rocafuerte, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rocafuerte, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rocafuerte, Ecuador

Topographical Features of Rocafuerte

Rocafuerte sits in the coastal lowlands of western Ecuador, positioned within Manabí Province approximately 30 kilometers inland from the Pacific Ocean. The terrain around this small city is characterized by gently rolling hills and relatively flat agricultural plains that extend across much of the region. The elevation remains modest, typically ranging between 50 to 200 meters above sea level, creating a landscape that undulates softly rather than presenting dramatic elevation changes. The surrounding countryside features a mix of cultivated farmland and patches of dry tropical forest vegetation. The topography has been shaped by centuries of agricultural use, with many areas cleared and leveled for crop production, particularly for corn, rice, and various tropical fruits. Small streams and seasonal waterways meander through the landscape, creating subtle valleys and drainage patterns that add gentle variation to the otherwise relatively uniform terrain.

Climate and Environmental Conditions

The region experiences a tropical savanna climate with distinct wet and dry seasons. During the dry season, which typically extends from May through December, the landscape takes on a more arid appearance as vegetation browns and water sources diminish. This seasonal pattern significantly influences the local topography, as erosion during wet periods and drought conditions during dry months create characteristic soil and vegetation patterns across the rolling terrain. The coastal influence moderates temperature extremes, while the inland position provides some protection from direct oceanic weather patterns. Prevailing winds from the Pacific Ocean help circulate air across the region, contributing to generally clear skies during much of the year, particularly during the extended dry season.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie in the flatter agricultural areas to the north and east of Rocafuerte. These zones offer several advantages, including relatively level ground that would minimize grading and site preparation costs, while still providing adequate drainage to prevent water accumulation during the rainy season. The elevated plateaus and gentle ridgelines scattered throughout the region present excellent opportunities for solar development. These slightly higher elevations typically receive consistent air circulation, which helps maintain optimal operating temperatures for solar panels while avoiding the lowest-lying areas where fog or moisture might occasionally accumulate. Areas of former agricultural land that have been left fallow or converted from intensive farming would be particularly well-suited for solar installations. These locations often retain level or gently sloping characteristics from previous agricultural use, while offering good access to existing rural road networks that could facilitate construction and maintenance activities. The terrain southeast of Rocafuerte, extending toward the foothills of the coastal mountain range, provides another promising zone for solar development. This area features broad, gently sloping surfaces with good southern exposure and natural drainage patterns that would complement large-scale solar arrays. The slightly higher elevation in this direction also tends to provide clearer atmospheric conditions and reduced humidity compared to areas closer to the coast.
