San Miguel de Salcedo, Ecuador represents an excellent location for year-round solar photovoltaic energy generation. This tropical location benefits from consistent sunlight throughout the year, with seasonal variations characterized more by wet and dry periods rather than the dramatic light changes seen in temperate regions.

Solar Energy Production Potential

The solar energy output data for San Miguel de Salcedo shows remarkably consistent performance across all seasons. Winter produces 4.09 kWh per day per kW of installed solar capacity, while summer generates 4.16 kWh per day per kW. Autumn shows slightly lower output at 3.98 kWh per day per kW, but spring delivers the highest performance at 4.65 kWh per day per kW of installed capacity. This seasonal consistency makes the location particularly attractive for solar installations, as energy production remains reliable throughout the year. The variation between the lowest performing season (autumn) and highest performing season (spring) is only about 17%, which is exceptional compared to many other global locations.

Optimal Installation Configuration

For fixed panel installations at San Miguel de Salcedo, the ideal tilt angle to maximize total year-round solar production is just 1 degree North. This nearly flat configuration reflects the location's proximity to the equator, where the sun passes almost directly overhead throughout much of the year.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this location and require consideration during installation planning. The tropical climate brings significant rainfall during wet seasons, which can reduce solar irradiance when heavy cloud cover persists. While rain can help clean solar panels naturally, extended periods of overcast skies will temporarily reduce energy output. Installing panels with proper drainage and ensuring adequate spacing between panel rows can help minimize water pooling and allow for better air circulation. High humidity levels common in tropical regions can lead to moisture-related issues over time. Electrical connections and inverters should be properly sealed and protected from moisture ingress. Using marine-grade wiring and corrosion-resistant mounting hardware becomes essential in this environment.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite local challenges:

• Install panels with adequate ventilation underneath to prevent overheating and allow moisture to evaporate
• Use high-quality, humidity-resistant electrical components and ensure all connections are properly sealed
• Design mounting systems with corrosion-resistant materials such as anodized aluminum or stainless steel
• Implement proper grounding systems to handle potential lightning strikes common in tropical regions
• Plan for regular cleaning schedules during dry periods to remove dust and debris that may accumulate

The volcanic activity in Ecuador's Andean region could potentially deposit ash on solar panels during eruptions, though San Miguel de Salcedo's location may provide some protection from major ash falls. Installing panels at the recommended 1-degree tilt will help with natural cleaning from rainfall, though steeper tilts might be considered in areas prone to ash accumulation. Despite these considerations, the consistent solar energy output throughout the year makes San Miguel de Salcedo an highly favorable location for solar PV installations, particularly when proper installation practices address the tropical environmental factors.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

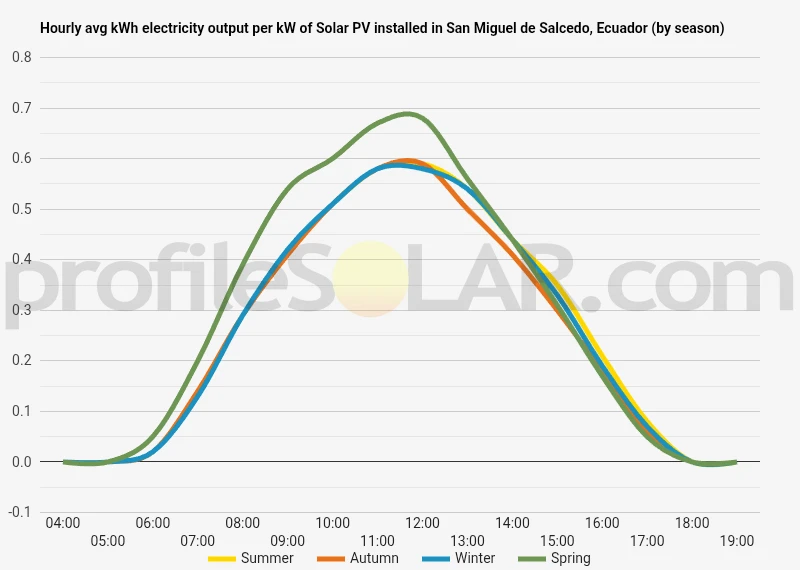

Solar output per kW of installed solar PV by season in San Miguel De Salcedo

Seasonal solar PV output for Latitude: -1.0437, Longitude: -78.5908 (San Miguel De Salcedo, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° North in San Miguel De Salcedo, Ecuador

To maximize your solar PV system's energy output in San Miguel De Salcedo, Ecuador (Lat/Long -1.0437, -78.5908) throughout the year, you should tilt your panels at an angle of 1° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Miguel De Salcedo, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Miguel De Salcedo, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° South in Summer	8° North in Autumn	17° North in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Miguel De Salcedo, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Miguel De Salcedo, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Miguel De Salcedo, Ecuador

Topographical Features of San Miguel de Salcedo

San Miguel de Salcedo sits in the central highlands of Ecuador, positioned within the Andean mountain range at an elevation of approximately 2,800 meters above sea level. The town is located in Cotopaxi Province, nestled in a broad intermontane valley that runs north-south between two parallel mountain chains of the Andes. This valley, known as the Avenue of the Volcanoes, is characterized by relatively flat to gently rolling terrain punctuated by dramatic volcanic peaks. The immediate surroundings of Salcedo feature predominantly agricultural land with gentle slopes and plateaus that extend across the valley floor. The terrain is generally open and unobstructed, with scattered rural settlements and farmland devoted primarily to crops and livestock grazing. The landscape is typical of Ecuador's highland regions, with expansive views across cultivated fields toward the surrounding mountain ranges.

Mountain Ranges and Volcanic Features

To the east of Salcedo rises the Cordillera Real, while the Western Cordillera forms the western boundary of the valley. Several prominent volcanic peaks dominate the horizon, including Cotopaxi to the northeast and Tungurahua to the southeast. These towering volcanic cones create a dramatic backdrop but are sufficiently distant to avoid casting significant shadows over the valley floor during most daylight periods. The volcanic nature of the region has contributed to fertile soils and relatively stable geological conditions. The valley floor itself shows minimal topographical variation, with most elevation changes being gradual rather than steep. This creates extensive areas of relatively flat or gently undulating terrain that could accommodate large infrastructure projects.

Climate and Weather Patterns

The high-altitude location places Salcedo in Ecuador's temperate highland climate zone. The region experiences relatively stable weather patterns throughout the year, with two main seasons distinguished more by precipitation than temperature variation. The dry season typically brings clearer skies and more consistent weather conditions, while the wet season sees increased cloud cover and afternoon precipitation. The valley's orientation and surrounding topography create favorable conditions for solar radiation exposure. The high altitude results in thinner atmospheric coverage, allowing for more direct solar radiation to reach the ground. The open valley floor receives unobstructed exposure to the sky throughout most of the day, with minimal shading from surrounding terrain features.

Optimal Areas for Large-Scale Solar Development

The most suitable areas for large-scale solar photovoltaic installations would be found on the relatively flat agricultural lands extending north and south of Salcedo along the valley floor. These areas offer several advantages including minimal slope requirements for ground-mounted systems, good accessibility for construction and maintenance, and limited topographical obstacles that might create shading issues. Particularly promising locations include the expansive plains to the north toward Latacunga and the southern valley areas extending toward Ambato. These regions feature gentle topography with sufficient space for utility-scale solar farms while maintaining appropriate distances from residential areas and sensitive environmental zones. The areas immediately west of the town center present another viable option, where the valley floor extends toward the foothills of the Western Cordillera. This zone combines relatively flat terrain with good transportation access via existing road networks. The consistent elevation and minimal vegetation cover would facilitate construction activities and ongoing operational requirements. Agricultural lands currently used for crop production could potentially be converted or adapted for solar installations, particularly in areas where farming productivity may be limited by soil conditions or water availability. The dual-use potential of agrivoltaics could also be explored in certain locations, allowing continued agricultural activity beneath elevated solar panel arrays.
