Santa Ana de Vuelta Larga, Ecuador presents a generally favorable location for year-round solar photovoltaic energy generation. Located in the tropics where sunlight remains consistent throughout most of the year, this area experiences seasons characterized more by wet and dry periods rather than the traditional temperature-based seasons found in temperate regions.

Solar Energy Production Potential

The solar energy output data for this location shows promising results across all seasons. Autumn delivers the highest production at 4.63 kWh per day per kW of installed solar capacity, followed closely by summer at 4.38 kWh per day. Spring provides moderate output at 4.10 kWh per day, while winter shows the lowest production at 3.57 kWh per day per kW installed. The most productive period for solar generation occurs during autumn and summer months, when the combination of solar angle and weather conditions creates optimal circumstances for photovoltaic systems. Even during the least productive winter period, the location still maintains reasonable solar output levels. For maximum year-round energy production, solar panels at this location should be installed with a fixed tilt angle of 1 degree North. This nearly flat installation angle reflects the location's proximity to the equator, where the sun travels high overhead throughout the year.

Environmental and Weather Challenges

Several factors specific to this tropical location could potentially impact solar energy production:

• High humidity levels throughout the year can reduce panel efficiency and create condensation issues
• Frequent rainfall during wet seasons may temporarily reduce solar output and create cleaning challenges
• Salt air corrosion due to proximity to the Pacific Ocean can damage panel frames and mounting systems
• Dust and debris accumulation during dry periods can significantly reduce panel performance

Preventative Measures for Optimal Performance

To maximize solar energy production despite these environmental challenges, several installation strategies should be implemented: Regular cleaning systems become essential in this environment. Installing panels with adequate spacing allows for proper air circulation, which helps reduce humidity-related efficiency losses and prevents overheating. Using corrosion-resistant materials such as aluminum frames with marine-grade coatings or stainless steel mounting hardware will combat the effects of salt air. Proper drainage design ensures rainwater flows away from panel surfaces quickly, preventing water pooling and reducing cleaning frequency. Installing panels at the optimal 1-degree tilt helps with natural rain-washing while maximizing energy capture. Selecting panels with anti-reflective coatings and robust sealing systems provides additional protection against humidity infiltration. Regular maintenance schedules should account for more frequent cleaning during dusty dry periods and thorough inspections after heavy rainfall seasons. Despite these environmental considerations, Santa Ana de Vuelta Larga offers consistent solar energy potential throughout the year, making it a viable location for solar photovoltaic installations when proper precautions are taken during design and installation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

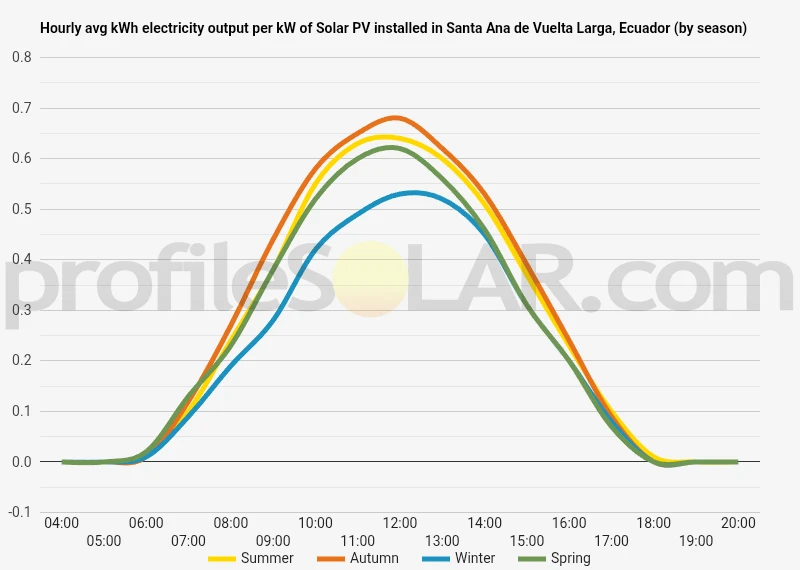

Solar output per kW of installed solar PV by season in Santa Ana De Vuelta Larga

Seasonal solar PV output for Latitude: -1.2043, Longitude: -80.3717 (Santa Ana De Vuelta Larga, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° North in Santa Ana De Vuelta Larga, Ecuador

To maximize your solar PV system's energy output in Santa Ana De Vuelta Larga, Ecuador (Lat/Long -1.2043, -80.3717) throughout the year, you should tilt your panels at an angle of 1° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santa Ana De Vuelta Larga, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santa Ana De Vuelta Larga, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	7° North in Autumn	17° North in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santa Ana De Vuelta Larga, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santa Ana De Vuelta Larga, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santa Ana De Vuelta Larga, Ecuador

Topographical Features of Santa Ana de Vuelta Larga

Santa Ana de Vuelta Larga sits in the coastal lowlands of western Ecuador, positioned within the broader Guayas River basin system. The terrain around this location is characterized by relatively flat to gently undulating plains that extend across much of the coastal region. These lowlands typically range from sea level to modest elevations of around 50 to 100 meters above sea level, creating a landscape that is generally conducive to large-scale development projects. The area forms part of Ecuador's coastal plain, which stretches between the Pacific Ocean to the west and the foothills of the Andes Mountains to the east. This positioning places Santa Ana de Vuelta Larga in a transitional zone where the flat alluvial deposits from river systems meet slightly more varied topography as the land begins its gradual rise toward the mountain ranges further inland. Local drainage patterns are influenced by numerous small waterways and seasonal streams that flow westward toward the Pacific Ocean. These water features create a network of shallow valleys and low ridges across the landscape, though the overall relief remains quite modest. The soil composition in this region typically consists of fertile alluvial deposits, reflecting the area's position within an active river system.

Optimal Areas for Large-Scale Solar Development

The flat to gently rolling terrain surrounding Santa Ana de Vuelta Larga presents several advantages for utility-scale solar photovoltaic installations. The most suitable areas would be the elevated plateaus and broad ridgetops that rise 20 to 50 meters above the immediate floodplains. These locations offer stable ground conditions while avoiding potential flooding issues associated with lower-lying areas near active waterways. Areas to the north and northeast of Santa Ana de Vuelta Larga appear particularly promising, where the landscape transitions from the immediate river valley into slightly higher ground. These zones typically feature well-drained soils and minimal slope variations, reducing both construction costs and ongoing maintenance requirements for solar arrays. The gentle elevation changes also provide natural drainage patterns that help manage stormwater runoff. The western sections, while flatter, may present challenges due to their proximity to seasonal flooding zones and higher water tables. However, careful site selection within this area could still yield viable locations, particularly on slightly elevated terraces that remain above typical flood levels. Agricultural lands in the region, while currently productive, represent potential conversion opportunities where the terrain is most suitable. These areas have already been cleared and leveled to some degree, potentially reducing site preparation costs. The key consideration would be selecting sites with optimal drainage characteristics and stable soil conditions that can support the infrastructure requirements of large solar installations.
