Saraguro, Loja, Ecuador presents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical zone at coordinates -3.6226, -79.2385, this area benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods rather than the dramatic temperature variations seen in temperate climates.

Solar Energy Production Performance

The solar energy output at Saraguro demonstrates remarkably consistent performance across all seasons. The location generates 4.26 kWh per day per kW of installed solar capacity during summer, 4.34 kWh/day per kW in autumn, 4.30 kWh/day per kW in winter, and peaks at 4.66 kWh/day per kW during spring. Spring emerges as the optimal season for solar generation, producing approximately 9% more energy than the lowest-performing summer period. This seasonal variation is relatively modest compared to many other global locations, making Saraguro highly attractive for consistent solar energy production. For fixed panel installations at this location, the ideal tilt angle is 4 degrees North to maximize total year-round production. This shallow angle reflects the location's proximity to the equator, where the sun maintains a high position in the sky throughout the year.

Environmental and Weather Challenges

Several factors at Saraguro could potentially impact solar energy production:

• High altitude conditions: At approximately 2,500 meters above sea level, the location experiences intense UV radiation and temperature fluctuations
• Tropical wet season: Heavy rainfall and cloud cover during wet months can reduce solar irradiance
• Dust and debris accumulation: Dry periods may lead to dust buildup on panels
• Hail potential: Mountain locations can experience sudden hailstorms

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies should be implemented: Panel Protection and Durability: Install panels with reinforced glass designed to withstand hail impact and UV exposure. Use mounting systems with adequate ventilation to prevent overheating during intense midday sun. Maintenance Protocols: Establish regular cleaning schedules to remove dust, pollen, and debris. Design systems with easy access for maintenance, particularly important during and after the wet season when organic matter may accumulate. Drainage and Water Management: Ensure proper drainage around installations to prevent water pooling during heavy rains. Install panels with appropriate spacing to allow natural rain washing while preventing water damage to electrical components. Monitoring Systems: Implement performance monitoring to quickly identify any weather-related efficiency drops, allowing for prompt maintenance responses. Despite these considerations, Saraguro's consistent solar output throughout the year makes it a highly suitable location for solar PV installations, with relatively minor seasonal variations ensuring reliable energy production regardless of the time of year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

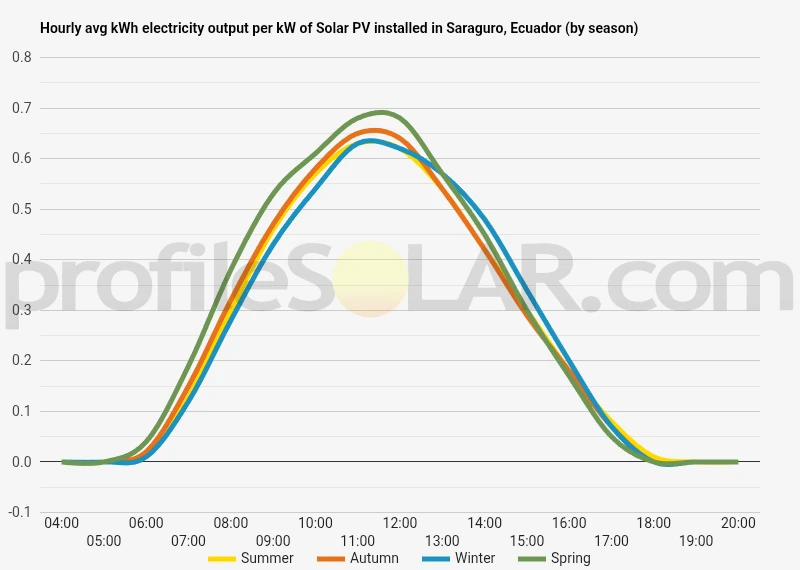

Solar output per kW of installed solar PV by season in Saraguro

Seasonal solar PV output for Latitude: -3.6226, Longitude: -79.2385 (Saraguro, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Saraguro, Ecuador

To maximize your solar PV system's energy output in Saraguro, Ecuador (Lat/Long -3.6226, -79.2385) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Saraguro, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Saraguro, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	10° North in Autumn	19° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Saraguro, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Saraguro, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Saraguro, Ecuador

Topographical Features of Saraguro

Saraguro sits in the southern highlands of Ecuador at an elevation of approximately 2,500 meters above sea level, nestled within the Andean mountain range. The town is positioned on a high plateau surrounded by rolling hills and steep-sided valleys characteristic of the inter-Andean corridor. This region forms part of the broader Loja Province, where the landscape transitions from the high Andes toward the more temperate zones leading to the coast. The immediate area around Saraguro features undulating terrain with moderate slopes and several flat-topped ridges that extend outward from the central valley. These elevated plateaus are interspersed with deeper valleys carved by seasonal streams and small rivers that drain toward the larger Jubones River system. The topography becomes increasingly rugged as one moves away from the town center, with steeper gradients and more pronounced elevation changes.

Climate and Environmental Conditions

The high-altitude location creates a temperate climate with relatively stable temperatures throughout the year. Cloud cover patterns in this region are influenced by the orographic effects of the surrounding mountains, with moisture-laden air masses from both the Pacific coast and Amazon basin creating variable weather conditions. The area experiences distinct wet and dry seasons, with the dry period generally offering clearer skies and reduced atmospheric moisture. Temperature variations remain modest due to the equatorial latitude, though the high elevation creates cooler conditions than found in coastal or lowland areas. The thin atmosphere at this altitude allows for intense solar radiation during clear periods, while the mountainous terrain creates localized weather patterns that can vary significantly over short distances.

Optimal Locations for Large-Scale Solar Development

The most suitable areas for large-scale solar photovoltaic installations around Saraguro would be the elevated plateaus and gently sloping ridgetops located to the east and southeast of the town. These areas offer relatively flat terrain with good southern exposure and minimal shading from surrounding topographical features. The elevated positions also tend to experience less fog and cloud accumulation compared to the valley floors. The plateau areas approximately 5-10 kilometers northeast of Saraguro present particularly favorable conditions, featuring expansive flat surfaces with minimal vegetation and good accessibility for construction and maintenance activities. These locations benefit from their position above the immediate valley systems, reducing exposure to morning fog and providing unobstructed sky access throughout the day.

Infrastructure and Access Considerations

The region benefits from reasonable road infrastructure connecting to the Pan-American Highway, which runs north-south through this part of Ecuador. Several secondary roads branch off toward the identified plateau areas, though some improvement might be necessary to support heavy construction equipment and ongoing maintenance operations. The relatively stable geological conditions of the high Andean plateaus provide good foundations for solar installations, with bedrock generally close to the surface and minimal concerns about subsidence or unstable soils. The absence of significant seismic activity in the immediate area, compared to other parts of Ecuador, adds to the suitability for long-term infrastructure development. Proximity to existing electrical transmission infrastructure presents both opportunities and challenges, with the main north-south transmission corridor running through the region but potentially requiring upgrades to handle large-scale renewable energy inputs. The elevated positions of the optimal solar sites would facilitate transmission line routing while minimizing visual impact on populated areas in the valleys below.
