Solar Energy Potential in Tena, Napo, Ecuador

Tena, Napo, Ecuador, situated in the Amazon rainforest region at latitude/longitude -0.9961, -77.8131, offers interesting potential for solar PV energy generation. Located almost directly on the equator, this tropical location experiences relatively consistent sunlight throughout the year, with weather patterns characterized more by wet and dry seasons than traditional temperature-based seasons. Based on the electricity output data, Tena shows promising solar generation capacity across all meteorological seasons. Spring stands out as the most productive period with an impressive 4.71 kWh per day for each kilowatt of installed solar capacity. Summer follows with 4.07 kWh/day, while winter produces 3.90 kWh/day, and autumn trails slightly with 3.80 kWh/day.

Optimal Panel Installation

For fixed solar panel installations in Tena, Napo, the ideal tilt angle to maximize year-round energy production is just 1 degree facing North. This nearly flat orientation makes perfect sense given Tena's equatorial position, where the sun passes almost directly overhead throughout the year.

Environmental and Weather Considerations

Despite Tena's favorable solar potential, several significant environmental factors could impact solar production:

• Heavy rainfall and high humidity: As part of the Amazon basin, Tena experiences substantial precipitation, particularly during the rainy season (typically April to July), which can reduce solar efficiency and potentially damage equipment if not properly protected.
• Cloud cover: Frequent cloud coverage, especially during the wet season, can significantly reduce direct sunlight exposure.
• Vegetation growth: The rapid growth rate of vegetation in this tropical climate can create shading issues if not regularly maintained.
• Dust and debris: Organic matter from the surrounding rainforest can accumulate on panels.

Preventative Measures

To maximize solar production in Tena, Napo, several preventative measures are recommended:

• Elevated installation: Mounting panels higher than usual can prevent shading from rapidly growing vegetation and reduce exposure to ground-level humidity.
• Enhanced waterproofing: Using marine-grade components and extra sealant protection for all electrical connections is essential in this high-humidity environment.
• Regular cleaning schedule: Implementing a more frequent cleaning routine than would be necessary in drier climates will maintain optimal performance.
• Micro-inverter systems: These can help minimize production losses when partial shading occurs from passing clouds or vegetation.
• Strategic timing: Planning significant installations to conclude before the peak rainy season begins can provide better working conditions and initial performance.

With proper planning and maintenance, solar PV systems in Tena can achieve good performance, particularly taking advantage of the excellent spring production values of 4.71 kWh/day per installed kilowatt.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

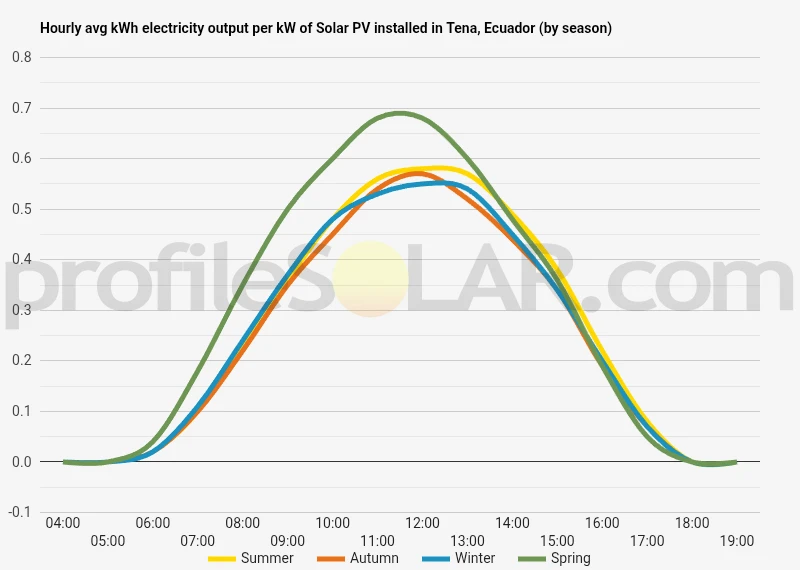

Solar output per kW of installed solar PV by season in Tena

Seasonal solar PV output for Latitude: -0.9961, Longitude: -77.8131 (Tena, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° North in Tena, Ecuador

To maximize your solar PV system's energy output in Tena, Ecuador (Lat/Long -0.9961, -77.8131) throughout the year, you should tilt your panels at an angle of 1° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tena, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tena, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° South in Summer	8° North in Autumn	17° North in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tena, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tena, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tena, Ecuador

The topography surrounding Tena, Ecuador presents a dramatic landscape characterized by the eastern foothills of the Andes Mountains transitioning into the Amazon Basin. Situated at an elevation of approximately 500 meters above sea level, Tena sits in a valley where several rivers converge, including the Tena, Pano, and Napo rivers. This region marks the beginning of the Ecuadorian Amazon, locally known as "El Oriente." The terrain around Tena is predominantly hilly to mountainous, with steep slopes giving way to more gradual inclines as one moves eastward toward the Amazon proper. The western areas feature more pronounced elevation changes, with some peaks reaching over 1,000 meters in the nearby vicinity. These hills are densely covered with tropical rainforest vegetation, creating a lush green canopy that blankets the landscape. River valleys cut through the terrain, creating natural corridors where settlements have developed. These waterways have shaped the topography through erosion, forming alluvial plains in some areas that contrast with the surrounding hills. The Napo River, a major Amazon tributary, flows east of Tena and has created wider floodplains in parts of its course.

Potential Areas for Solar PV Development

When considering regions near Tena for large-scale solar photovoltaic development, several topographical factors must be evaluated. The ideal locations would combine relatively flat terrain, minimal forest cover (or already cleared areas), good solar exposure, and accessibility to existing infrastructure. The cleared agricultural areas to the north and northeast of Tena present some potential. These zones, where the landscape begins to flatten as it approaches the broader Amazon Basin, offer more consistent terrain. Some cattle ranches and agricultural operations have already created openings in the forest canopy that could be repurposed or expanded for solar installations. The elevated plateaus found approximately 15-20 kilometers east of Tena also merit consideration. These areas experience less cloud cover than the immediate foothills of the Andes and offer more consistent solar conditions throughout the year. The terrain here is more gradual, requiring less extensive grading for installation of solar arrays. Areas along the major roadways, particularly along the E45 highway that runs north-south through the region, might also be suitable candidates. These corridors often have existing clearings and access to transmission infrastructure that could support solar development. The relatively flat areas where the highway crosses less mountainous terrain would be particularly advantageous. It's worth noting that any large-scale solar development in this region would need to carefully consider environmental impacts. The Amazon rainforest surrounding Tena is ecologically sensitive, and deforestation for solar installations would be counterproductive from an environmental perspective. Therefore, the most appropriate sites would be previously disturbed areas or zones that have already been converted from primary forest to other uses. The river terraces along the wider sections of the Napo River basin, especially in areas that are above flood levels but have been previously cleared, could also provide suitable locations. These areas tend to be flatter and would require minimal preparation for solar array installation.
