Tosagua, Manabí, Ecuador presents a moderately favorable location for year-round solar PV energy generation, though with some seasonal variations that potential solar installers should consider.

Seasonal Solar Performance

The solar energy output at this tropical location shows distinct seasonal patterns. Autumn emerges as the most productive season, generating 5.07 kWh per day for each kilowatt of installed solar capacity. Summer follows as the second-best performing season at 4.66 kWh/day per kW. Winter and spring show notably lower production levels, both generating around 4.00-4.01 kWh/day per kW. This seasonal variation of approximately 25% between peak and lowest production periods reflects the typical wet and dry season patterns common in tropical regions. The higher autumn production suggests this period likely coincides with the area's dry season when cloud cover is minimal and solar irradiance is at its strongest.

Optimal Panel Configuration

For fixed panel installations at Tosagua, Manabí, the ideal tilt angle to maximize total year-round solar production is just 1 degree North. This nearly flat configuration makes sense given the location's proximity to the equator, where the sun passes almost directly overhead throughout much of the year.

Environmental and Weather Challenges

Several local factors could potentially impact solar production efficiency at this coastal Ecuadorian location:

• Seasonal rainfall and cloud cover: The lower winter and spring production figures likely indicate increased cloud cover during wet season months, which can significantly reduce solar irradiance
• High humidity and salt air: Being located near the Pacific coast, the installation may face challenges from salt-laden air that can corrode components and reduce panel efficiency over time
• Dust and debris accumulation: Tropical climates often experience periods of dust, particularly during dry seasons, which can build up on panel surfaces

Preventative Measures for Optimal Performance

To maximize energy production and system longevity at this location, several protective measures should be implemented:

• Corrosion-resistant materials: Use marine-grade mounting hardware and components specifically designed to withstand salt air exposure
• Regular cleaning schedule: Establish a routine maintenance program to remove dust, salt deposits, and organic debris from panel surfaces, particularly important during and after the dry season
• Proper drainage design: Ensure mounting systems allow for adequate water runoff during heavy rainfall periods to prevent water pooling and potential electrical issues
• Quality inverters with environmental protection: Install inverters in well-ventilated, protected enclosures to handle the high humidity and temperature variations typical of tropical coastal areas

Despite these challenges, Tosagua's consistent tropical sunlight and relatively good year-round production levels make it a viable location for solar PV installations, particularly when proper environmental protections are incorporated into the system design.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

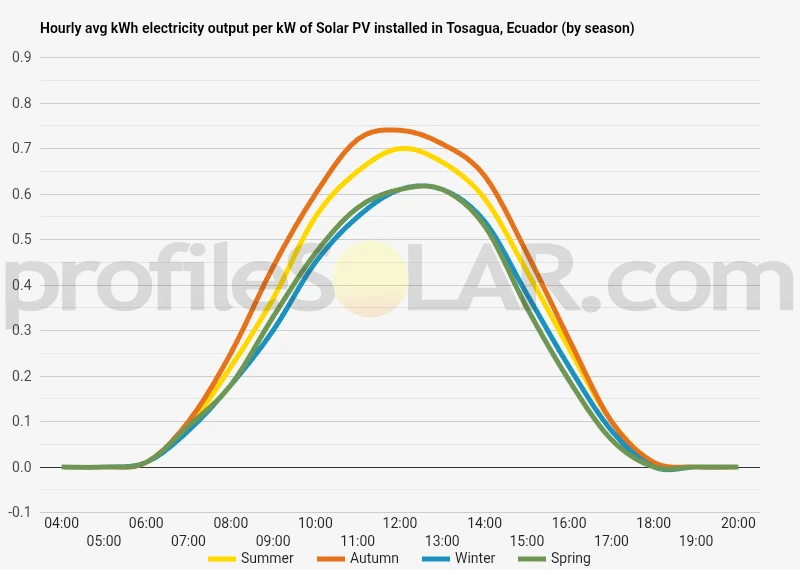

Solar output per kW of installed solar PV by season in Tosagua

Seasonal solar PV output for Latitude: -0.7875, Longitude: -80.2375 (Tosagua, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° North in Tosagua, Ecuador

To maximize your solar PV system's energy output in Tosagua, Ecuador (Lat/Long -0.7875, -80.2375) throughout the year, you should tilt your panels at an angle of 1° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tosagua, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tosagua, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° South in Summer	7° North in Autumn	17° North in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tosagua, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tosagua, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tosagua, Ecuador

Topographical Features of Tosagua

Tosagua sits in the coastal lowlands of Manabí Province, Ecuador, positioned within a relatively flat to gently undulating landscape that characterizes much of the western coastal plain. The terrain around this agricultural town consists primarily of low-lying areas with elevations ranging from near sea level to approximately 200 meters above sea level. The topography is dominated by sedimentary formations and alluvial deposits that have created fertile plains ideal for farming activities. The region features a series of low hills and gentle ridges that rise gradually from the coastal plain toward the interior. These elevated areas are interspersed with valleys and drainage channels that carry seasonal water flows toward the Pacific Ocean. The landscape shows the influence of both ancient marine terraces and more recent fluvial processes, creating a varied but generally accessible terrain.

Drainage Patterns and Water Features

Several small rivers and seasonal streams traverse the area around Tosagua, flowing generally from east to west toward the Pacific coast. These waterways have carved shallow valleys and created natural drainage corridors through the landscape. During the wet season, these channels become more prominent, while in the dry season many reduce to intermittent flows or dry beds. The presence of these water features creates a mosaic of slightly elevated interfluves and lower-lying valley bottoms. The interfluves typically offer better drainage and more stable ground conditions, while the valley areas may experience seasonal flooding or waterlogging during periods of heavy rainfall.

Soil Conditions and Surface Characteristics

The soils around Tosagua are predominantly clay and silt-based, derived from marine and alluvial deposits. These soils tend to be relatively deep but can become quite sticky and difficult to work with during wet periods. The flat to gently sloping nature of much of the terrain means that surface water drainage can be slow, leading to temporary ponding in some areas. Rock outcrops are relatively uncommon in the immediate vicinity, though some areas feature harder sedimentary layers that create subtle ridges and more resistant surfaces. The general absence of steep slopes and rocky terrain makes most of the landscape potentially accessible for development purposes.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Tosagua would be the elevated interfluves and gentle ridges that rise above the immediate floodplains. These areas typically offer several advantages including better natural drainage, more stable soil conditions, and reduced risk of seasonal flooding. Areas located on the eastern and southeastern sides of Tosagua appear particularly promising, where the terrain begins to rise gradually toward the interior hills. These locations provide gentle slopes that can facilitate proper panel orientation while maintaining good access for construction and maintenance activities. The slightly elevated position also helps avoid the moisture and humidity issues that can affect lower-lying areas near water courses. The northern and southern approaches to the town also present viable options, particularly where the landscape consists of broad, gently sloping surfaces with minimal interference from drainage channels. These areas would allow for large, continuous installations while maintaining reasonable distances from residential areas and prime agricultural lands. Areas to avoid would include the immediate floodplains of local rivers and streams, as well as any locations showing signs of seasonal waterlogging or poor drainage. The lowest-lying areas near the coast would also be less suitable due to higher humidity levels and potential salt air exposure that could affect equipment longevity.
