Yantzaza, Zamora Chinchipe, Ecuador presents a very good location for year-round solar energy generation, with consistent performance across all seasons due to its tropical location near the equator at coordinates -3.8299, -78.7573.

Solar Energy Performance

The solar energy output at Yantzaza remains remarkably stable throughout the year, with daily electricity generation ranging from 4.02 kWh per kilowatt of installed solar capacity in winter to 4.85 kWh per kilowatt in spring. This consistency is typical of equatorial regions where seasonal variations in sunlight are minimal. Spring emerges as the optimal season for solar generation, producing 4.85 kWh per kilowatt daily, followed by summer at 4.29 kWh per kilowatt. Autumn and winter show slightly lower but still robust production at 4.06 and 4.02 kWh per kilowatt respectively. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 3 degrees facing north. This shallow angle optimizes the panels' exposure to the sun's path throughout the year at this near-equatorial location.

Environmental and Weather Challenges

Several factors in Yantzaza could potentially impact solar energy production:

• High humidity and frequent cloud cover - The tropical climate brings regular cloud formation that can reduce solar irradiance
• Heavy rainfall during wet seasons - Intense tropical downpours can temporarily block sunlight and create water accumulation on panels
• Dust and debris accumulation - High humidity combined with vegetation can lead to faster buildup of organic matter on panel surfaces
• Corrosive environment - High moisture levels can accelerate corrosion of metal components

Preventative Measures for Optimal Performance

To maximize solar energy production in Yantzaza's tropical environment, several installation strategies should be implemented: Regular cleaning schedules become essential, with panels requiring washing every 2-4 weeks to remove accumulated dust, pollen, and organic debris that can significantly reduce efficiency. Installing panels with adequate spacing and ventilation helps prevent moisture buildup and allows for proper air circulation. Selecting corrosion-resistant materials and protective coatings for mounting hardware and electrical components will extend system lifespan in the humid environment. Proper drainage systems should be installed to prevent water pooling around panel installations. Implementing monitoring systems allows for quick identification of performance drops due to weather-related issues, enabling prompt maintenance responses to maintain optimal energy generation throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

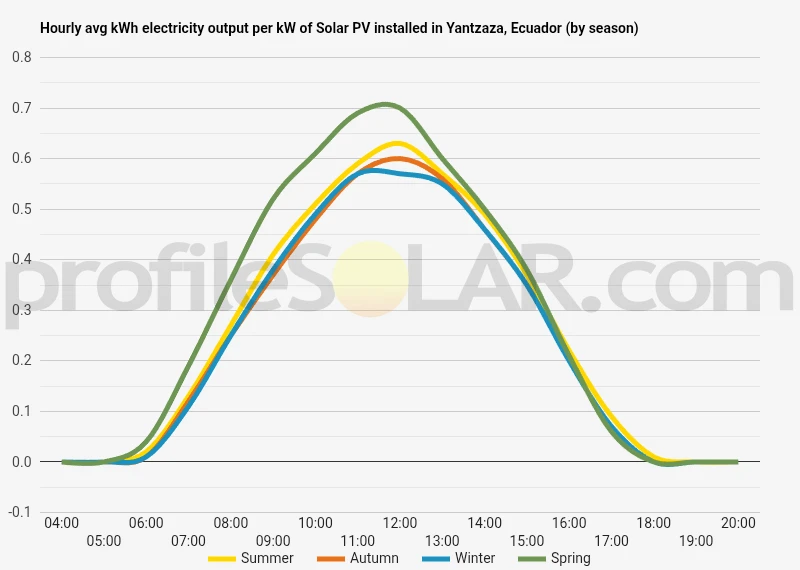

Solar output per kW of installed solar PV by season in Yantzaza

Seasonal solar PV output for Latitude: -3.8299, Longitude: -78.7573 (Yantzaza, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 3° North in Yantzaza, Ecuador

To maximize your solar PV system's energy output in Yantzaza, Ecuador (Lat/Long -3.8299, -78.7573) throughout the year, you should tilt your panels at an angle of 3° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Yantzaza, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Yantzaza, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	10° North in Autumn	20° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Yantzaza, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Yantzaza, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Yantzaza, Ecuador

Topographical Features Around Yantzaza

Yantzaza sits in the southeastern region of Ecuador within the Amazon basin, where the landscape is characterized by rolling hills and moderate elevation changes. The town is positioned at approximately 850 meters above sea level in a transitional zone between the Andean foothills to the west and the vast Amazonian lowlands stretching eastward. This location places it within the Cordillera del Cóndor region, known for its undulating terrain and river valleys carved through sedimentary rock formations.

The immediate surroundings feature a series of ridges and valleys running primarily in a north-south direction, with elevations ranging from about 600 meters in the river valleys to over 1,200 meters on the higher ridges. The Zamora River system dominates the drainage pattern, with numerous tributaries creating a dendritic network of waterways that have shaped the local topography over millennia. These waterways have created fertile valleys interspersed with moderate slopes and occasional steeper terrain where the rivers have cut deeper into the underlying geology.

The vegetation in this region is predominantly tropical rainforest, though much of the original forest cover has been modified by agricultural activities and settlement. The climate remains humid and warm throughout the year, with significant cloud cover and precipitation that supports the lush vegetation typical of the upper Amazon basin.

Optimal Areas for Large-Scale Solar Development

For large-scale solar photovoltaic installations around Yantzaza, the most suitable locations would be found on the elevated plateaus and gentle slopes of the higher ridges, particularly those with southern and southeastern exposures. These areas typically offer the best combination of relatively flat terrain, reduced cloud cover compared to the valley floors, and minimal interference from surrounding topographical features that could create shadowing effects.

The ridgelines located 5 to 15 kilometers southwest of Yantzaza present particularly favorable conditions, as they sit at elevations between 1,000 and 1,200 meters where the terrain becomes more open and less densely forested. These elevated areas experience better air circulation and tend to have fewer morning fog episodes that are common in the river valleys. The moderate slopes of 5 to 15 degrees on these ridges would be ideal for solar panel installation, providing natural drainage while maintaining optimal orientation possibilities.

Areas to avoid would include the steep valley walls where the Zamora River and its tributaries have created challenging terrain for construction and maintenance access. The lower elevation areas near the rivers, while flatter, tend to experience more frequent cloud cover and atmospheric moisture that could reduce solar panel efficiency. Additionally, these valley locations often contain the most fertile agricultural land and remnant forest areas that would be environmentally sensitive for large-scale development.

The road network in the region, primarily centered around the main highway connecting Yantzaza to Loja and Zamora, would need to be considered for access to potential solar sites. The most practical locations would be those within reasonable distance of existing transportation infrastructure while still maintaining the topographical advantages of the higher elevations.
