Zamora Nuevo, Guayas, Ecuador presents a moderately favorable location for year-round solar PV energy generation, though with some notable seasonal variations that potential solar installers should consider.

Solar Energy Production Throughout the Year

The location shows decent solar energy potential with seasonal fluctuations typical of tropical regions. Autumn emerges as the most productive season, generating 4.63 kWh per day per kW of installed solar capacity. Summer follows closely with 4.38 kWh/day per kW, while spring produces 4.10 kWh/day per kW. Winter presents the lowest energy output at 3.57 kWh/day per kW, representing about a 23% decrease compared to the peak autumn production. This seasonal variation suggests that the wet season likely coincides with winter months, reducing solar irradiance during this period.

Optimal Installation Configuration

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 1 degree North. This nearly flat configuration takes advantage of the location's proximity to the equator, where the sun's path remains relatively high in the sky throughout the year.

Environmental and Weather Challenges

Several environmental factors could significantly impact solar production at Zamora Nuevo: High Humidity and Moisture: The tropical climate creates persistent high humidity levels that can lead to moisture infiltration in electrical components, corrosion of metal parts, and reduced efficiency over time. Heavy Rainfall During Wet Season: The pronounced winter dip in production suggests intense rainy periods that not only reduce direct sunlight but can also deposit mud, leaves, and debris on panel surfaces. Cloud Cover Patterns: Tropical regions often experience sudden cloud formations and afternoon thunderstorms that can dramatically reduce solar irradiance even during otherwise sunny days.

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies prove essential:

• Install panels with enhanced waterproofing and sealed junction boxes specifically rated for high-humidity tropical environments
• Use corrosion-resistant mounting hardware made from marine-grade aluminum or stainless steel
• Implement proper drainage systems around the installation area to prevent water pooling
• Design the mounting system with adequate spacing between panels to promote air circulation and cooling
• Establish a regular cleaning schedule, particularly important after heavy rain periods to remove accumulated debris

Overall Assessment

While Zamora Nuevo offers reasonable solar potential with consistent tropical sunlight, the 23% seasonal variation and environmental challenges require careful planning and robust installation practices. The location works best for applications that can accommodate seasonal fluctuations or incorporate battery storage systems to smooth out production variations throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

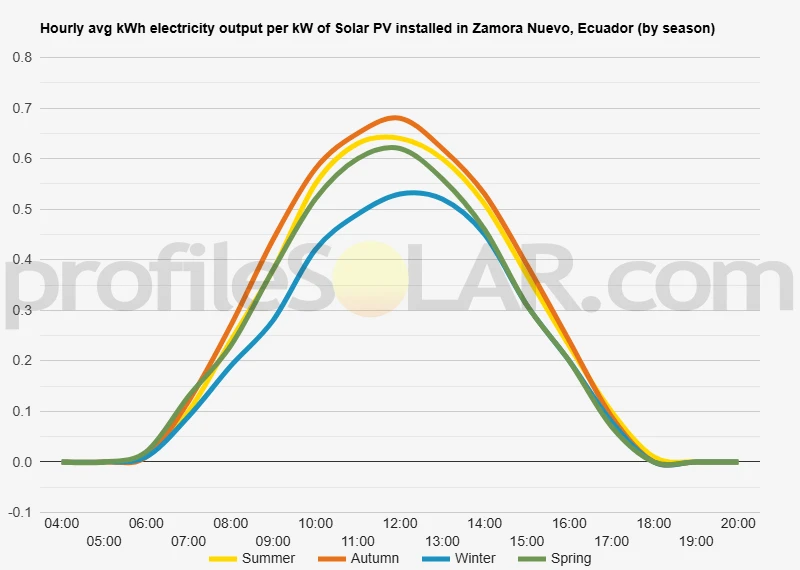

Solar output per kW of installed solar PV by season in Zamora Nuevo

Seasonal solar PV output for Latitude: -1.8081, Longitude: -80.1714 (Zamora Nuevo, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° North in Zamora Nuevo, Ecuador

To maximize your solar PV system's energy output in Zamora Nuevo, Ecuador (Lat/Long -1.8081, -80.1714) throughout the year, you should tilt your panels at an angle of 1° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Zamora Nuevo, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Zamora Nuevo, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	8° North in Autumn	18° North in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Zamora Nuevo, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Zamora Nuevo, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Zamora Nuevo, Ecuador

Topographical Features of Zamora Nuevo

Zamora Nuevo sits in Ecuador's coastal lowlands, positioned within the broader Guayas River basin system. The terrain around this location is characterized by relatively flat to gently rolling plains that extend across much of the coastal region. These lowlands represent part of the extensive alluvial deposits that have been shaped by centuries of river activity from the Guayas and its tributaries. The elevation in this area remains fairly consistent, with minimal variation across the landscape. This creates expansive stretches of level ground that extend for considerable distances in multiple directions. The topography reflects the influence of sedimentary processes, where rivers have deposited materials over time to create these broad, fertile plains.

Regional Landscape Context

Moving inland from Zamora Nuevo toward the east, the terrain begins a gradual transition toward the foothills of the Andes Mountains, though this change occurs over many kilometers. The coastal plain maintains its relatively uniform character for substantial distances before encountering any significant elevation changes. To the west, the landscape continues its gentle profile as it approaches the Pacific coastal zone. The area experiences typical lowland drainage patterns, with numerous waterways meandering through the region. These water features create slight undulations in the otherwise consistent topography, forming shallow valleys and low ridges that add subtle variation to the terrain.

Optimal Areas for Large-Scale Solar Development

The expansive flat areas extending north and south of Zamora Nuevo present excellent opportunities for large-scale solar photovoltaic installations. These zones offer the consistent, level terrain that solar developers prefer for efficient panel placement and construction logistics. The minimal elevation changes across these areas would allow for extensive solar arrays with optimal spacing and orientation. Particularly favorable locations can be found on the broader plains that stretch toward the northwest and southwest of the immediate area. These regions combine the advantages of flat topography with sufficient distance from major waterways to avoid flood-prone zones. The consistent grade across these areas would minimize the need for extensive site preparation or grading work. Areas with slightly elevated positions within the overall plain would be especially suitable, as they provide natural drainage while maintaining the flat characteristics essential for solar installations. These locations offer the dual benefits of stable ground conditions and reduced risk of water accumulation during Ecuador's rainy seasons. The agricultural lands surrounding Zamora Nuevo, while currently productive, represent potential sites for solar development due to their proven accessibility and generally level nature. These areas already have established road networks and infrastructure connections that would support large-scale renewable energy projects.
