El Carmen, Ecuador represents an excellent location for year-round solar energy generation, benefiting from its equatorial position where consistent sunlight is available throughout the year rather than experiencing traditional seasonal variations.

Solar Energy Production Potential

The solar energy output at El Carmen demonstrates remarkably consistent performance across all seasons. Winter produces the highest energy output at 4.58 kWh per day per kW of installed solar capacity, followed by spring at 4.28 kWh/day per kW. Summer generates 4.16 kWh/day per kW, while autumn produces 4.10 kWh/day per kW. This consistency makes El Carmen particularly attractive for solar installations, as energy production remains reliable throughout the year without significant seasonal dips that might affect energy planning or financial returns.

Optimal Installation Configuration

For maximum year-round solar production at El Carmen, solar panels should be installed at a tilt angle of 0 degrees (completely flat). This optimal angle is calculated by analyzing daily solar elevation angles at this latitude, determining daily optimal panel positioning, and weighting these angles using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at El Carmen and require careful consideration during installation: High Humidity and Moisture The tropical climate brings elevated humidity levels that can lead to corrosion of electrical components and reduced efficiency over time. Installing solar equipment with appropriate weatherproofing, using marine-grade electrical connections, and ensuring proper ventilation around inverters and electrical components helps mitigate these effects. Heavy Rainfall During Wet Seasons Intense tropical rainfall can temporarily reduce solar output and may cause water damage if systems aren't properly sealed. Installing panels with robust mounting systems that allow proper drainage, using waterproof electrical enclosures, and ensuring all connections are sealed against water ingress are essential preventative measures. Dust and Debris Accumulation Tropical environments often generate significant dust and organic debris that can accumulate on solar panels, reducing their efficiency. Regular cleaning schedules and installing panels at angles that promote natural cleaning during rainfall help maintain optimal performance. Potential for Extreme Weather Events Ecuador's coastal and highland regions can experience severe weather including strong winds and storms. Using reinforced mounting systems rated for high wind loads, securing all electrical components properly, and designing installations to withstand local weather extremes ensures long-term reliability.

Installation Best Practices

Successful solar installations at El Carmen should incorporate enhanced drainage systems, corrosion-resistant materials, and regular maintenance protocols. Choosing equipment specifically rated for tropical conditions and working with experienced local installers familiar with regional challenges will help maximize the excellent solar potential this location offers.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

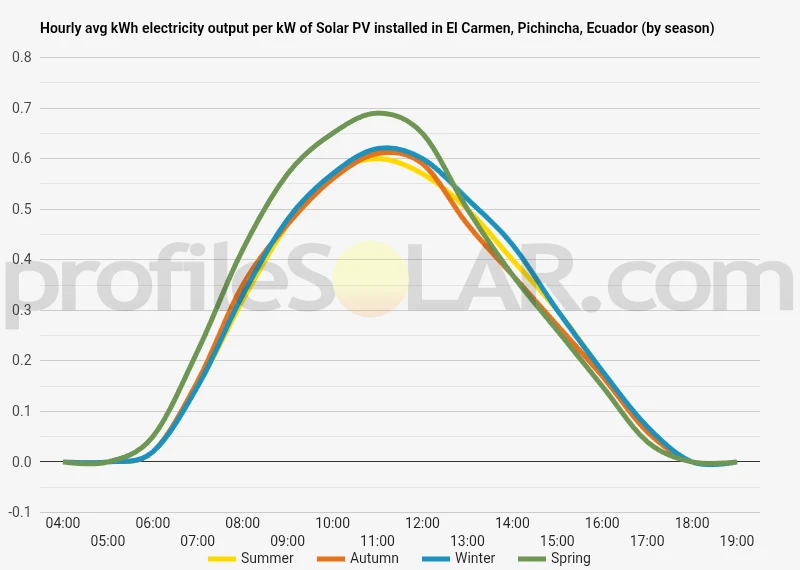

Solar output per kW of installed solar PV by season in El Carmen, Pichincha

Seasonal solar PV output for Latitude: -0.1157, Longitude: -78.4452 (El Carmen, Pichincha, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 0° in El Carmen, Pichincha, Ecuador

To maximize your solar PV system's energy output in El Carmen, Pichincha, Ecuador (Lat/Long -0.1157, -78.4452) throughout the year, you should tilt your panels at an angle of 0° for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for El Carmen, Pichincha, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in El Carmen, Pichincha, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 0° tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	7° North in Autumn	16° North in Winter	6° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in El Carmen, Pichincha, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in El Carmen, Pichincha, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around El Carmen, Pichincha, Ecuador

Topographical Features of El Carmen, Ecuador

El Carmen is situated in the coastal lowlands of Ecuador, positioned in the western foothills of the Andes Mountains. The terrain around this area is characterized by gently rolling hills and relatively flat plains that gradually transition from the Andean foothills toward the Pacific coastal region. The elevation in and around El Carmen typically ranges from approximately 200 to 800 meters above sea level, creating a varied landscape of moderate undulations rather than steep mountainous terrain. The region features a mix of agricultural valleys and pastoral hillsides, with the topography shaped by centuries of water erosion from numerous small streams and rivers that flow westward toward the coast. These waterways have carved out shallow valleys and created natural drainage patterns throughout the area. The soil composition consists primarily of fertile alluvial deposits mixed with volcanic sediments from the nearby Andes, contributing to the area's agricultural productivity.

Climate and Environmental Characteristics

The topographical position of El Carmen places it within Ecuador's subtropical climate zone, where the moderating influence of both the Pacific Ocean and the Andean foothills creates relatively stable weather patterns. The area experiences distinct wet and dry seasons, with the landscape transforming significantly between these periods. During dry months, the rolling hills take on a golden-brown appearance, while the wet season brings lush green vegetation across the terrain. The region's elevation and geographical position provide natural protection from extreme weather events, as the surrounding hills help deflect strong winds while the moderate altitude prevents the temperature extremes found at higher elevations in the Andes or in the more humid coastal lowlands.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around El Carmen would be the broad, gently sloping plateaus and mesa-like formations that dot the landscape. These elevated flat areas, typically found at elevations between 300 and 600 meters, offer several advantages for solar development. They provide stable ground conditions, minimal shading from surrounding terrain features, and excellent accessibility for construction and maintenance vehicles. The southern and southeastern facing slopes of the larger hills in the region would also present excellent opportunities for solar installations. These orientations maximize exposure to direct sunlight throughout the day while the gentle gradients of most hillsides in the area would not require extensive grading or terracing work. The natural drainage patterns already established in these areas would help manage water runoff during the rainy season. Agricultural plains located between the rolling hills represent another prime opportunity for solar development. These areas typically feature minimal vegetation obstacles, established access roads from farming activities, and relatively level terrain that would minimize construction costs. Many of these plains are currently used for cattle grazing, which could potentially continue beneath properly designed solar installations. The areas immediately west and southwest of El Carmen's center offer particularly favorable conditions due to their combination of gentle topography, existing infrastructure access, and distance from sensitive ecological zones. These locations benefit from the natural windbreak effect of the eastern hills while maintaining clear sight lines to the sky for optimal solar collection.
