Pichincha, Ecuador presents an excellent location for year-round solar PV energy generation. Located virtually on the equator in the tropical zone, this area benefits from consistent sunlight throughout the year, with seasonal variations driven more by wet and dry periods rather than the dramatic changes in daylight hours experienced at higher latitudes.

Solar Energy Production Potential

The solar energy output at Pichincha demonstrates remarkably stable performance across all seasons. The location generates between 4.10 and 4.58 kWh per day for each kW of installed solar capacity, showing only modest seasonal variation of approximately 12% between the lowest and highest performing periods. Spring emerges as the optimal season for solar generation, producing 4.58 kWh/day per kW installed. Winter follows closely behind at 4.28 kWh/day, while summer delivers 4.16 kWh/day. Autumn shows the lowest output at 4.10 kWh/day, though this difference remains relatively small compared to locations at higher latitudes. For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 0 degrees - essentially flat panels. This makes perfect sense given Pichincha's equatorial position, where the sun passes nearly directly overhead throughout the year.

Environmental and Weather Challenges

Several significant local factors could impact solar production at this location and require careful consideration during installation: High Altitude Effects Pichincha sits at considerable elevation, which brings both advantages and challenges. While the thinner atmosphere allows more solar radiation to reach panels, it also exposes equipment to more intense UV radiation that can degrade panel materials faster than at sea level. The reduced air density also means less natural cooling, potentially causing panels to operate at higher temperatures and reduced efficiency. Volcanic Ash and Dust The proximity to volcanic activity in the Ecuadorian Andes presents a unique challenge. Volcanic ash can settle on solar panels, significantly reducing their efficiency by blocking sunlight. Even fine ash particles can create a persistent film that accumulates over time. Tropical Weather Patterns The wet season brings heavy rainfall and potential hail, which could damage panels or mounting systems. High humidity levels may also accelerate corrosion of metal components and electrical connections.

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies prove essential:

• Install panels with UV-resistant materials and protective coatings specifically designed for high-altitude tropical conditions
• Implement robust cleaning systems or schedules to regularly remove volcanic ash and dust accumulation
• Use corrosion-resistant mounting hardware and electrical components rated for high humidity environments
• Install adequate drainage systems to handle heavy tropical rainfall
• Consider panels with higher temperature coefficients to maintain efficiency in reduced air density conditions

Regular maintenance becomes particularly crucial at this location. Monthly cleaning schedules during dry periods and immediate cleaning after volcanic activity can prevent significant production losses. Proper ventilation around panels helps manage the temperature challenges associated with high altitude installation. Despite these environmental considerations, Pichincha's consistent solar resource and minimal seasonal variation make it a highly favorable location for solar PV installations when proper precautions are implemented.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 108 locations across Ecuador. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ecuador by location

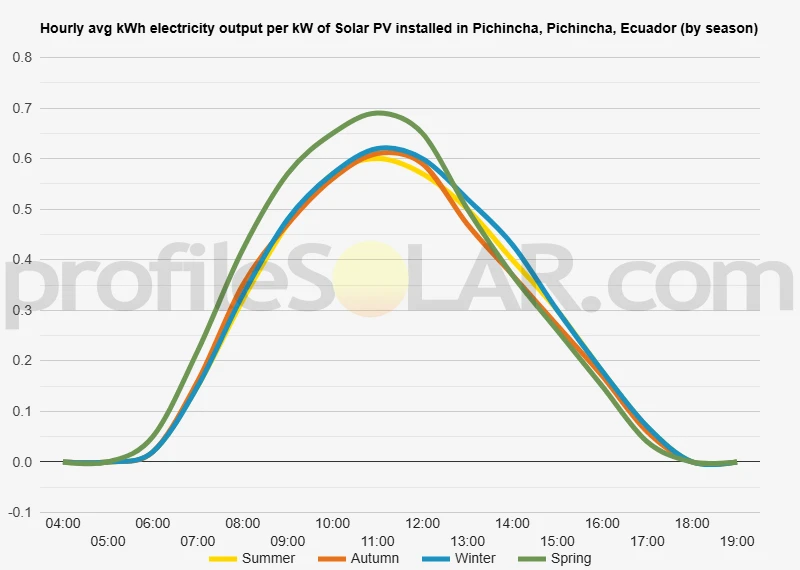

Solar output per kW of installed solar PV by season in Pichincha, Pichincha

Seasonal solar PV output for Latitude: -0.0849, Longitude: -78.4995 (Pichincha, Pichincha, Ecuador), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 0° in Pichincha, Pichincha, Ecuador

To maximize your solar PV system's energy output in Pichincha, Pichincha, Ecuador (Lat/Long -0.0849, -78.4995) throughout the year, you should tilt your panels at an angle of 0° for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pichincha, Pichincha, Ecuador

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pichincha, Pichincha, Ecuador. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 0° tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	7° North in Autumn	16° North in Winter	6° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pichincha, Pichincha, Ecuador

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pichincha, Pichincha, Ecuador.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pichincha, Pichincha, Ecuador

The topography around Pichincha, Ecuador presents a dramatic and varied landscape dominated by the towering presence of Pichincha volcano itself, which rises to over 4,700 meters above sea level. This massive stratovolcano sits on the western edge of Ecuador's capital city, Quito, creating a striking backdrop that defines the entire region's geographical character. The area lies within the Andean highlands, where steep volcanic slopes, deep valleys, and rolling plateaus create a complex terrain that poses both challenges and opportunities for large-scale development projects.

Volcanic Slopes and Valley Systems

The immediate vicinity of Pichincha is characterized by steep volcanic slopes that radiate outward from the main crater complex. These slopes are heavily dissected by numerous quebradas (ravines) and small valleys that have been carved by centuries of erosion and occasional volcanic activity. The eastern flanks of the volcano descend toward the Quito basin, while the western slopes drop more gradually toward the coastal lowlands. The terrain is generally unstable in many areas due to the volcanic nature of the underlying rock and soil, with frequent landslides occurring during the rainy season. The elevation changes dramatically over relatively short distances, creating microclimates and varying conditions for vegetation and land use. Dense cloud forests cover much of the upper slopes, while agricultural terraces and small settlements occupy the more stable middle elevations. The lower valleys often contain small rivers and streams that flow toward either the Amazon basin or the Pacific Ocean, depending on their position relative to the continental divide.

Suitable Areas for Large-Scale Solar Development

Despite the challenging volcanic terrain, several areas around Pichincha show promise for large-scale solar photovoltaic installations. The most suitable locations are found in the broader valleys and plateau areas that lie at moderate elevations, typically between 2,500 and 3,500 meters above sea level. These areas offer more stable ground conditions and gentler slopes that would be conducive to solar panel installation and maintenance. The Tumbaco and Cumbayá valleys, located to the northeast of Pichincha, present excellent opportunities for solar development. These valleys feature relatively flat or gently rolling terrain with good access to existing infrastructure and electrical transmission lines. The soil conditions are more stable than on the direct volcanic slopes, and the areas receive consistent solar exposure throughout much of the year due to their elevation above the cloud layer that often shrouds the lower elevations.

Western Plateau Regions

To the west of Pichincha, the terrain gradually transitions from steep volcanic slopes to more manageable plateau areas as the elevation decreases toward the coastal plain. These western plateau regions offer some of the best potential for large-scale solar installations in the area. The land here is generally more stable than the immediate volcanic slopes, with broader expanses of relatively flat or gently undulating terrain that could accommodate extensive solar arrays. The climate in these western areas tends to be drier than the eastern slopes, which face the moisture-laden winds from the Amazon basin. This drier climate reduces cloud cover and provides more consistent solar exposure, making these locations particularly attractive for photovoltaic development. Additionally, the lower population density in these areas means that large tracts of land could potentially be made available for solar projects without significant displacement of existing communities.

Infrastructure and Access Considerations

The topography around Pichincha creates significant challenges for accessing potential solar installation sites, but also offers some advantages in terms of existing infrastructure. The proximity to Quito means that electrical transmission infrastructure is already well-developed in many areas, particularly in the eastern valleys and plateau regions. However, the steep terrain and unstable volcanic soils make road construction and maintenance challenging in many locations. The most promising areas for solar development are those that combine suitable topography with existing access roads and proximity to electrical infrastructure. The inter-Andean valley systems that run north-south through the region often provide corridors of relatively flat land with established transportation networks, making them ideal candidates for large-scale renewable energy projects.
