Matsapha, Manzini Region, Eswatini represents a highly favorable location for year-round solar photovoltaic energy generation. Located in the Southern Sub Tropics at coordinates -26.4994, 31.3003, this area demonstrates consistently strong solar energy potential across all seasons.

Seasonal Solar Performance

The solar energy output at Matsapha shows excellent consistency throughout the year. Summer delivers the highest production at 5.75 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows closely with 5.44 kWh per day, while autumn maintains strong performance at 5.38 kWh per day. Winter represents the lowest production period at 4.32 kWh per day per kW, but this figure still indicates very good solar potential compared to many other global locations. The relatively modest seasonal variation demonstrates that Matsapha offers reliable solar energy generation year-round.

Optimal Installation Configuration

For fixed panel installations at Matsapha, Manzini Region, the ideal tilt angle to maximize total year-round solar production is 25 degrees North. This angle is calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel positioning, and weighting these angles by daily photovoltaic potential using comprehensive solar irradiance data that accounts for Earth's elliptical orbit.

Environmental and Weather Considerations

Several local factors in Matsapha could potentially impact solar energy production and should be considered during installation planning:

• Dust and airborne particles: The semi-arid climate can generate dust that accumulates on solar panels, reducing efficiency
• Seasonal rainfall patterns: While beneficial for natural panel cleaning, heavy rains during wet seasons may cause temporary shading from cloud cover
• High temperatures: Extreme heat can reduce panel efficiency, though this is partially offset by excellent sun exposure
• Hail potential: Occasional severe weather events may pose risks to panel integrity

Preventative Measures for Optimal Performance

To maximize solar energy production at this location, several installation strategies prove beneficial. Regular cleaning schedules help maintain panel efficiency by removing dust accumulation, particularly during drier months. Installing panels with adequate ventilation underneath helps manage heat buildup and maintains optimal operating temperatures. Selecting panels with appropriate hail resistance ratings protects against weather damage, while proper mounting systems ensure panels can withstand local wind conditions. Strategic positioning away from dust-generating sources and consideration of natural cleaning from seasonal rains can reduce maintenance requirements. The consistently high solar output figures across all seasons confirm that Matsapha offers excellent conditions for solar energy investment, with proper installation techniques helping to maximize this natural advantage.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3 locations across Eswatini. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Eswatini by location

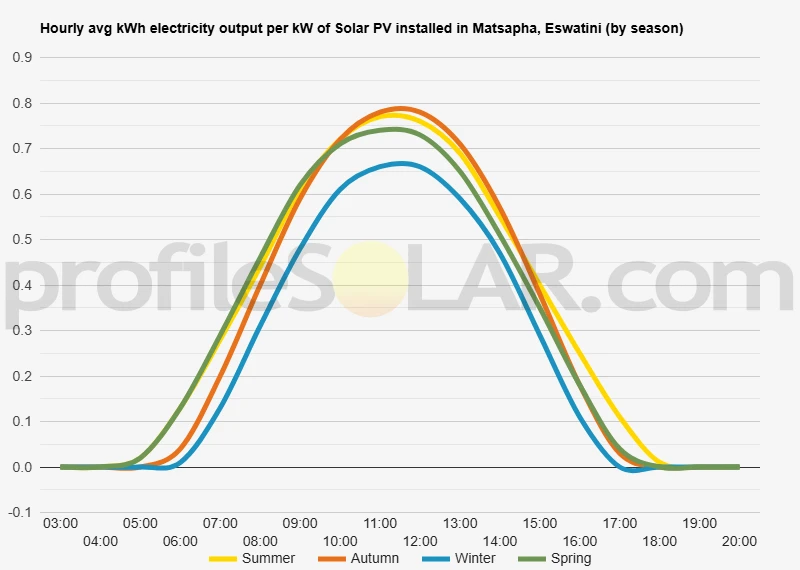

Solar output per kW of installed solar PV by season in Matsapha

Seasonal solar PV output for Latitude: -26.4994, Longitude: 31.3003 (Matsapha, Eswatini), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Matsapha, Eswatini

To maximize your solar PV system's energy output in Matsapha, Eswatini (Lat/Long -26.4994, 31.3003) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Matsapha, Eswatini

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Matsapha, Eswatini. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Matsapha, Eswatini

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Matsapha, Eswatini.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Matsapha, Eswatini

Topographical Features Around Matsapha

Matsapha sits in the Middleveld region of Eswatini, characterized by gently rolling hills and moderately elevated terrain at approximately 650 meters above sea level. The landscape surrounding this industrial hub features a mix of undulating grasslands, scattered woodland areas, and cultivated fields that create a relatively open topography with good exposure to sunlight throughout the day.

The terrain slopes gradually from higher elevations in the west toward the Lowveld region in the east. This creates natural drainage patterns that flow eastward, with several seasonal streams and small rivers cutting shallow valleys through the landscape. The soils in the area are predominantly red clay and sandy loam, typical of the granite-derived soils found throughout much of the Middleveld region.

Rolling hills with gentle gradients dominate the immediate vicinity, rarely exceeding slopes of more than 10-15 degrees. These modest inclines are interspersed with broader, flatter areas that were historically used for agriculture and grazing. The vegetation consists mainly of mixed grassland with scattered acacia trees and patches of indigenous woodland, creating a savanna-like environment that provides relatively unobstructed views across the landscape.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations lie on the broader, flatter plateaus that extend northeast and southeast of Matsapha. These areas offer several advantages including minimal topographical obstacles, reduced grading requirements, and excellent accessibility via existing road networks that connect to the main industrial areas.

The gently sloping terrain to the southeast presents particularly favorable conditions, with gradual south-facing slopes that would naturally optimize panel orientation. This area features extensive grassland with minimal tree cover, reducing the need for vegetation clearance while maintaining good drainage characteristics that prevent water accumulation during the rainy season.

Areas northwest of Matsapha also show promise, particularly the elevated plateaus that offer stable ground conditions and minimal shading from surrounding topographical features. The granite bedrock underlying much of this region provides excellent foundation conditions for mounting systems, while the open grassland environment ensures minimal environmental impact during construction and operation.

The eastern approaches toward the Lowveld transition zone should generally be avoided for large installations due to increasing drainage challenges and more variable terrain. Similarly, areas with steeper hillsides or dense woodland coverage would require significant site preparation that could impact project economics and environmental considerations.
