Koulamoutou, Gabon presents a moderately favorable location for year-round solar photovoltaic energy generation, though with some seasonal variations that are typical for tropical regions.

Solar Energy Production Throughout the Year

The solar energy output at this location shows relatively consistent performance across most seasons. Summer and autumn deliver the strongest production at 5.05 kWh and 5.07 kWh per day respectively for each kilowatt of installed solar capacity. Spring maintains good output at 4.86 kWh per day, while winter shows the lowest production at 4.14 kWh per day per installed kilowatt. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 1 degree facing north. This shallow angle is calculated to maximize total annual solar production by accounting for the sun's path throughout the year at this near-equatorial location.

Environmental and Weather Challenges

Several local factors in Koulamoutou can significantly impact solar panel performance and require careful consideration during installation: Tropical Climate Effects The high humidity and frequent rainfall characteristic of Gabon's tropical climate can reduce solar panel efficiency. Moisture can create a film on panel surfaces that blocks sunlight, while high humidity levels can cause electrical components to degrade more quickly than in drier climates. Dust and Vegetation The combination of dry seasons followed by heavy rains creates conditions where dust and organic debris can accumulate on solar panels. Dense tropical vegetation in the area can also contribute to shading issues and increase the amount of organic matter that settles on panel surfaces.

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Install panels with adequate spacing and ventilation underneath to reduce heat buildup and moisture retention
• Use high-quality mounting systems with corrosion-resistant materials designed for tropical environments
• Ensure proper drainage around the installation site to prevent water pooling
• Plan for regular cleaning schedules, particularly before and after the rainy season
• Clear vegetation regularly to prevent shading and reduce organic debris accumulation

Equipment Selection Choose solar panels and inverters specifically rated for high humidity and temperature environments. Marine-grade wiring and connections can help prevent corrosion, while panels with self-cleaning coatings can reduce maintenance requirements in this tropical setting. Regular maintenance becomes particularly important in Koulamoutou's climate, but with proper installation techniques and equipment selection, solar installations can perform reliably year-round despite the environmental challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3 locations across Gabon. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Gabon by location

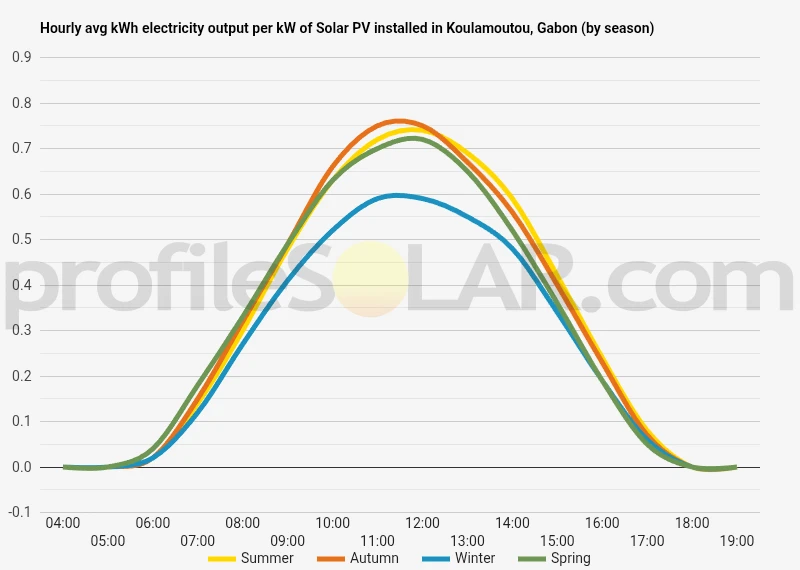

Solar output per kW of installed solar PV by season in Koulamoutou

Seasonal solar PV output for Latitude: -1.1338, Longitude: 12.463 (Koulamoutou, Gabon), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 1° North in Koulamoutou, Gabon

To maximize your solar PV system's energy output in Koulamoutou, Gabon (Lat/Long -1.1338, 12.463) throughout the year, you should tilt your panels at an angle of 1° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Koulamoutou, Gabon

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Koulamoutou, Gabon. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 1° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	7° North in Autumn	17° North in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Koulamoutou, Gabon

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Koulamoutou, Gabon.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Koulamoutou, Gabon

Topographical Features Around Koulamoutou

Koulamoutou sits in the heart of Gabon's interior, positioned within a landscape characterized by gently rolling hills and broad river valleys. The terrain around this regional center displays the typical features of equatorial Africa's interior plateau, with elevations generally ranging from 200 to 600 meters above sea level. The topography is notably less dramatic than the coastal regions or the northern highlands, creating a relatively stable foundation for development projects.

The Ogooué River system dominates the regional drainage pattern, with numerous tributaries carving shallow valleys through the landscape. These waterways create natural corridors of flatter terrain interspersed with low ridges and gentle slopes. The overall gradient across the area remains modest, with most slopes falling between 2 and 8 degrees, making the region quite accessible for large-scale infrastructure development.

Dense tropical rainforest covers much of the natural landscape, though human settlement and agricultural activities have created clearings and modified areas around population centers. The forest canopy typically reaches 30-40 meters in height, with emergent trees extending even higher. This vegetation pattern significantly influences land use options and development costs for any major projects.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie along the broader river valleys, particularly those following the Ogooué and its major tributaries. These areas offer several advantages including flatter terrain that minimizes grading requirements, existing transportation corridors that reduce infrastructure costs, and proximity to population centers that could utilize the generated power.

The elevated plateaus between river valleys present another category of suitable terrain. These areas typically feature gentle slopes and relatively stable soils, though they may require more extensive access road construction. The slightly higher elevations can provide better drainage during the intense rainy seasons while maintaining reasonable construction grades.

Previously cleared agricultural land and areas around existing settlements offer immediate advantages for solar development. These locations have already undergone forest removal, significantly reducing initial site preparation costs and environmental impact concerns. The proximity to existing electrical infrastructure and transportation networks makes these areas particularly attractive for large-scale projects.

Areas to avoid include the steeper hillsides where erosion control becomes problematic, low-lying zones prone to seasonal flooding, and regions with particularly dense forest cover where clearing costs would be prohibitive. The optimal sites combine gentle topography, reasonable access to existing infrastructure, and minimal environmental disruption requirements.
