Solar Energy Potential in Sanyang, West Coast Region, Gambia

Sanyang, West Coast Region, Gambia offers excellent year-round solar energy potential, with consistently high electricity generation capabilities across all seasons. Located in the tropics where sunlight remains relatively stable throughout the year, this location demonstrates remarkable consistency in solar production potential.

The seasonal solar electricity output at this location shows impressive performance across the year, with each kilowatt of installed solar capacity generating 5.98kWh per day in Summer, 5.88kWh per day in Autumn, and 5.82kWh per day in Winter. Spring stands out as the most productive season, delivering an exceptional 7.58kWh per day per kilowatt installed.

For fixed solar panel installations in Sanyang, West Coast Region, the ideal tilt angle to maximize year-round energy production is 12 degrees facing South. This specific angle has been calculated to optimize annual solar generation based on the location's position relative to the sun's path throughout the year.

Environmental Considerations

Several environmental factors could potentially impact solar production in Sanyang. The region experiences a distinct wet season (typically June through October) which brings heavy rainfall that could temporarily reduce solar output. During these months, occasional cloud cover may intermittently reduce generation capacity, though the impact is relatively minor compared to non-tropical regions.

Dust accumulation presents another challenge, particularly during the dry season when Harmattan winds can carry fine Saharan dust particles. This natural phenomenon can reduce panel efficiency by up to 30% if left unaddressed. Installing automated cleaning systems or implementing regular manual cleaning schedules (ideally bi-weekly during peak dust periods) can effectively mitigate this issue.

Proximity to the coast means salt spray could potentially affect equipment over time. Using marine-grade components with corrosion-resistant properties and applying appropriate protective coatings can significantly extend system lifespan. Additionally, installing panels at least 500 meters from the shoreline, where possible, reduces direct exposure to salt-laden air.

Temperature management deserves attention, as the tropical climate produces consistently high temperatures that can reduce photovoltaic efficiency. Ensuring adequate airflow beneath panels through proper mounting systems that allow at least 10cm clearance can help dissipate heat and maintain optimal operating temperatures.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3 locations across Gambia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Gambia by location

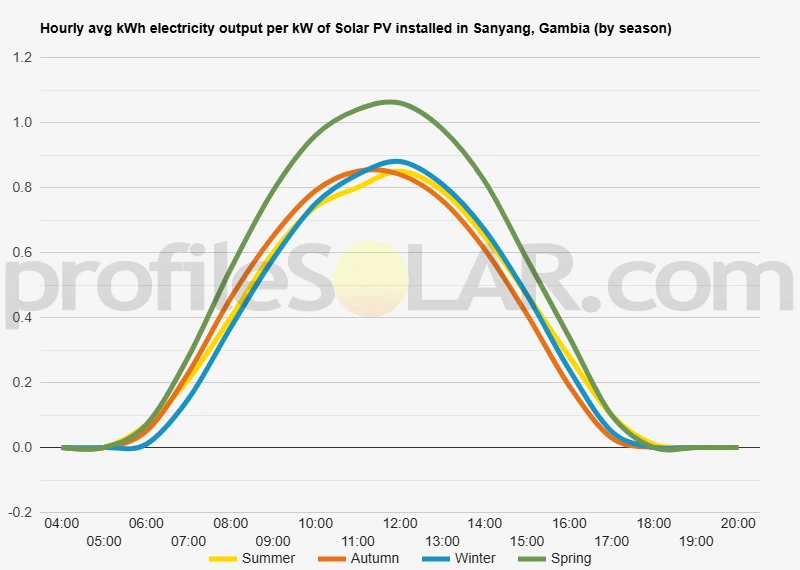

Solar output per kW of installed solar PV by season in Sanyang

Seasonal solar PV output for Latitude: 13.2687694, Longitude: -16.7629671 (Sanyang, Gambia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 12° South in Sanyang, Gambia

To maximize your solar PV system's energy output in Sanyang, Gambia (Lat/Long 13.2687694, -16.7629671) throughout the year, you should tilt your panels at an angle of 12° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sanyang, Gambia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sanyang, Gambia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 12° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	19° South in Autumn	29° South in Winter	7° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sanyang, Gambia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sanyang, Gambia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sanyang, Gambia

The topography around Sanyang, Gambia, is characterized by relatively flat coastal plains that gradually rise into gentle rolling hills as one moves inland. Situated on the western coast of The Gambia, Sanyang is part of a geographical region where the terrain rarely exceeds 50 meters above sea level in most areas.

Coastal Features

Sanyang sits near the Atlantic coastline, where beautiful beaches stretch along the shore. The immediate coastal area consists of sandy beaches backed by low dunes and occasional rocky outcroppings. Behind this narrow coastal strip, the land transitions to a mix of wetlands and flat plains.

Inland Terrain

Moving eastward from the coast, the landscape gradually transforms into gently undulating terrain. This area features a mosaic of savanna grasslands interspersed with patches of woodland and agricultural fields. Small seasonal streams and drainage channels cut across the landscape, creating shallow valleys between the modest rises.

Vegetation and Land Use

The natural vegetation around Sanyang consists primarily of savanna woodlands with scattered trees and shrubs, though much of the land has been modified for agricultural use. Rice fields occupy the lowland areas where seasonal flooding occurs, while upland areas are used for growing groundnuts, millet, and other crops. Patches of more dense vegetation can be found along waterways and in protected areas.

Solar PV Suitability

For large-scale solar photovoltaic installations, the most suitable areas near Sanyang would be the gently sloping upland regions located 3-5 kilometers inland from the coast. These areas offer several advantages: The elevated terrain reduces the risk of seasonal flooding that can affect lowland areas during the rainy season (typically June to October). The modest slopes provide good drainage while not being so steep as to complicate construction or increase erosion risks. These upland areas typically have less agricultural value than the fertile lowlands used for rice cultivation, potentially reducing land-use conflicts. The land is also generally clearer of dense vegetation, requiring less site preparation. The inland position helps avoid the immediate coastal zone where salt spray and higher humidity levels could potentially accelerate the degradation of solar equipment. However, the sites remain close enough to existing infrastructure to facilitate grid connection.

Topographical Considerations for Solar Development

When evaluating specific sites for solar development around Sanyang, several topographical factors merit consideration. The ideal locations would feature south-facing gentle slopes that maximize solar exposure throughout the day. Areas with minimal shadowing from trees or hills would be preferable. The soil composition in the region generally consists of sandy or loamy soils that provide reasonable stability for mounting structures while allowing for efficient installation of support systems. However, detailed geotechnical surveys would be necessary for any large-scale development to ensure foundation stability. Water drainage patterns should be carefully assessed, as even the modest rainfall in this semi-arid region can create localized flooding during intense downpours. Sites with natural drainage or gentle slopes that direct water away from installation areas would be advantageous. The most promising zones for development appear to be the elevated plateaus northeast of Sanyang, where the combination of stable ground, minimal flooding risk, and good solar exposure creates favorable conditions for large-scale solar PV development.
