The city of Wa in Ghana, located at 10.0532° N, -2.4878° E, offers a promising environment for solar energy generation throughout the year. Situated in the tropics, this location benefits from consistent sunlight and experiences seasons primarily characterized by wet and dry periods rather than temperature variations.

Solar Energy Potential

Solar photovoltaic (PV) systems in Wa demonstrate impressive energy output across all seasons. Spring yields the highest production at 6.57 kWh per day for each kilowatt of installed capacity. Winter follows closely with 6.38 kWh/day, while autumn produces 6.21 kWh/day. Even during summer, which shows the lowest output, the system still generates a substantial 5.32 kWh/day. These figures indicate that Wa is an excellent location for year-round solar energy production, with only minor fluctuations between seasons. The relatively consistent output throughout the year suggests that solar PV systems in this area can provide a reliable source of renewable energy.

Optimal Panel Positioning

For fixed solar panel installations in Wa, Upper West Region, the ideal tilt angle to maximize year-round energy production is 10 degrees facing South. This angle has been calculated taking into account the city's latitude, the Earth's elliptical orbit, and daily solar elevation angles, ensuring optimal exposure to sunlight throughout the year.

Environmental Considerations

While Wa's location is generally favorable for solar energy production, there are a few environmental factors to consider: 1. Dust and sand: The region's dry seasons may lead to increased dust and sand in the air, which can accumulate on solar panels and reduce their efficiency. 2. Heavy rainfall: During the wet season, frequent and intense rainstorms could temporarily reduce solar output. To mitigate these issues, regular cleaning and maintenance of solar panels is essential. Installing panels at the recommended tilt angle will also help with natural cleaning during rainfalls. Additionally, using high-quality, dust-resistant solar panels and implementing a robust cleaning schedule can help maintain optimal energy production throughout the year. In conclusion, Wa, Upper West Region, Ghana, presents an ideal location for solar PV installations, with consistent and high energy output potential across all seasons. By addressing minor environmental challenges through proper installation and maintenance practices, solar energy systems in this area can operate at peak efficiency, providing a reliable and sustainable source of power.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 12 locations across Ghana. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Ghana by location

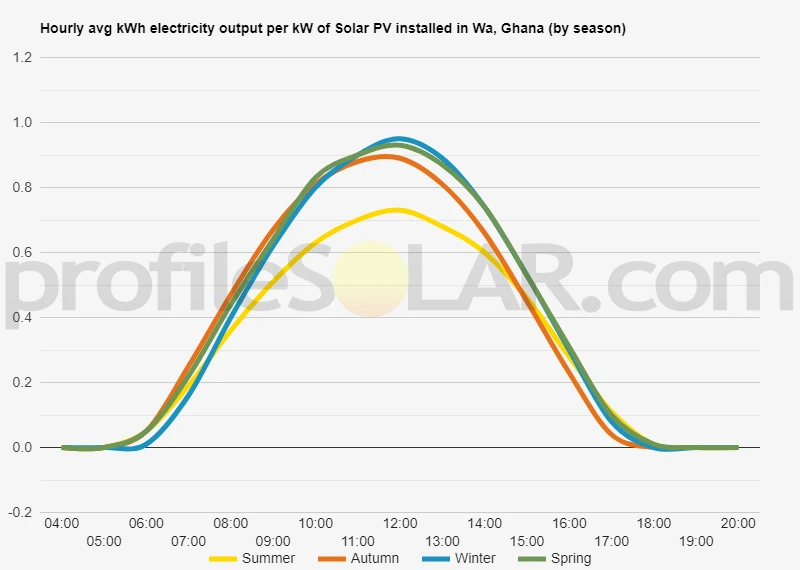

Solar output per kW of installed solar PV by season in Wa

Seasonal solar PV output for Latitude: 10.0532, Longitude: -2.4878 (Wa, Ghana), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Wa, Ghana

To maximize your solar PV system's energy output in Wa, Ghana (Lat/Long 10.0532, -2.4878) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Wa, Ghana

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Wa, Ghana. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	16° South in Autumn	26° South in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Wa, Ghana

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Wa, Ghana.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Wa, Ghana

The area around Wa, Ghana is characterized by a relatively flat to gently rolling landscape. This region is part of the Guinea Savannah zone, which is typical of northern Ghana. The terrain consists primarily of low-lying plains with occasional small hills and rocky outcrops. The elevation in this area generally ranges from about 200 to 350 meters above sea level.

The topography is shaped by the Black Volta River system, which flows to the west of Wa. This river and its tributaries have created a network of shallow valleys and seasonal streams across the landscape. During the rainy season, these waterways can swell, but they often dry up or become very low during the dry season.

Vegetation in the area is predominantly savannah grassland with scattered trees and shrubs. The natural vegetation has been altered in many places due to agriculture and human settlement, resulting in a patchwork of cultivated fields, fallow land, and remnant savannah.

For large-scale solar PV installations, the areas most suited would be the expansive flat or gently sloping lands that are abundant in the region surrounding Wa. These areas offer several advantages for solar energy development:

1. The relatively level terrain reduces the need for extensive land preparation and makes construction easier and more cost-effective.
2. The open savannah landscape means there are fewer tall trees or other obstacles that could cast shadows on solar panels.
3. The region experiences high levels of solar radiation throughout the year, making it ideal for solar energy generation.

Specifically, the areas to the north and east of Wa would likely be most suitable for large-scale solar PV projects. These regions tend to have larger tracts of undeveloped land that are not prime agricultural areas or densely populated. Additionally, they are generally flatter and more open, which is ideal for solar panel installation.

However, it's important to note that any specific site selection would require detailed on-the-ground surveys to assess factors such as exact topography, soil conditions, access to the electrical grid, and local land use considerations. Environmental and social impact assessments would also be necessary to ensure that large-scale solar developments do not negatively affect local communities or ecosystems.

Ghana solar PV Stats as a country

Ghana ranks 85th in the world for cumulative solar PV capacity, with 108 total MW's of solar PV installed. Each year Ghana is generating 3 Watts from solar PV per capita (Ghana ranks 83rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Ghana?

Yes, there are several incentives for businesses wanting to install solar energy in Ghana. The government of Ghana has implemented a number of policies and programs to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and grants for businesses that install solar systems. Additionally, the government has established a Renewable Energy Fund which provides financial support for projects related to renewable energy development. Finally, the government also offers technical assistance and capacity building services to help businesses develop their own solar projects.

Do you have more up to date information than this on incentives towards solar PV projects in Ghana? Please reach out to us and help us keep this information current. Thanks!
