Solar Energy Potential in Mixco, Guatemala

Mixco, Guatemala, located at 14.6358, -90.6094, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasonal variations primarily defined by wet and dry periods rather than dramatic changes in daylight hours. The solar energy production potential in Mixco demonstrates good year-round performance. In Spring, panels can generate approximately 6.40 kWh per day for each kilowatt of installed capacity, making it the most productive season. Summer follows with 6.18 kWh/day, while Winter produces about 5.84 kWh/day. Autumn shows the lowest output at 5.78 kWh/day per installed kilowatt, but the difference between seasons remains relatively small compared to locations at higher latitudes.

Optimal Panel Installation

For fixed solar panel installations in Mixco, the ideal tilt angle to maximize year-round energy production is 14 degrees facing South. This specific angle has been calculated based on the location's position relative to the sun's path throughout the year, accounting for Earth's elliptical orbit and weighted by daily photovoltaic potential.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Mixco:

• The pronounced wet season (typically May through October) can reduce solar efficiency due to cloud cover and rainfall, potentially causing temporary drops in energy production.
• Volcanic ash from nearby volcanoes like Pacaya and Fuego can occasionally deposit on solar panels, creating a layer that blocks sunlight.
• The region's tropical climate promotes rapid vegetation growth that could cast shadows on panels if not regularly maintained.
• Urban air pollution from the nearby Guatemala City metropolitan area may create a thin film on panels over time.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures can be implemented:

• Install panels with self-cleaning technology or apply hydrophobic coatings to minimize the impact of ash and dust accumulation.
• Implement regular cleaning schedules, particularly after volcanic activity or during the transition from dry to wet season.
• Consider slightly increasing the tilt angle beyond the optimal 14 degrees in areas prone to ash fallout to promote natural cleaning through rainfall.
• Install panels at sufficient height and maintain vegetation clearance to prevent shadows from rapidly growing tropical plants.
• Use microinverters or power optimizers to minimize the impact of partial shading on overall system performance.

With proper installation and maintenance, Mixco's consistent solar radiation throughout the year makes it a favorable location for solar PV systems despite these environmental considerations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 5 locations across Guatemala. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Guatemala by location

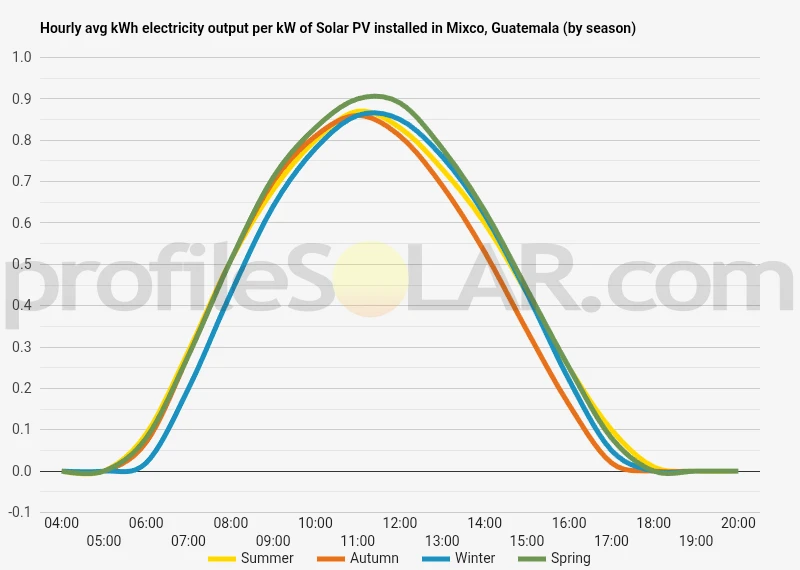

Solar output per kW of installed solar PV by season in Mixco

Seasonal solar PV output for Latitude: 14.6358, Longitude: -90.6094 (Mixco, Guatemala), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 14° South in Mixco, Guatemala

To maximize your solar PV system's energy output in Mixco, Guatemala (Lat/Long 14.6358, -90.6094) throughout the year, you should tilt your panels at an angle of 14° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mixco, Guatemala

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mixco, Guatemala. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 14° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° North in Summer	20° South in Autumn	30° South in Winter	8° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mixco, Guatemala

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mixco, Guatemala.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mixco, Guatemala

The topography around Mixco, Guatemala presents a complex and varied landscape characteristic of the Central American highlands. Situated approximately 13 kilometers west of Guatemala City, Mixco rests at an elevation of about 1,650 meters (5,400 feet) above sea level. The terrain is predominantly characterized by rolling hills, steep ravines, and volcanic formations that create a dramatic backdrop for this urban center. The area sits within what geographers call the Guatemalan Highlands, a mountainous region that forms part of the larger Central American Volcanic Arc. This positioning gives Mixco a distinctive topographical profile with significant elevation changes across relatively short distances. To the north and west of Mixco, the land rises more dramatically toward the Sierra Madre mountain range, with some nearby peaks reaching over 2,000 meters in elevation.

Valley and Basin Features

Mixco occupies part of the Valley of Guatemala, a broad highland basin surrounded by mountains and volcanic formations. This valley creates some relatively flat areas interspersed among the more rugged terrain. The southern portions of Mixco transition toward the Pacific coastal plain, with gradually decreasing elevations. One of the defining topographical features near Mixco is the presence of barrancas – deep ravines or gullies carved by centuries of water erosion. These barrancas create natural divisions in the landscape and have historically influenced settlement patterns and urban development in the region.

Volcanic Influence

The topography around Mixco bears the unmistakable influence of volcanic activity. Several dormant and active volcanoes are visible from the area, including Volcán de Agua, Volcán de Fuego, and Volcán Acatenango. These volcanic formations have contributed to the fertile soil of the region but also create significant variations in elevation and slope. The volcanic soil composition has resulted in a landscape that combines steep slopes with areas of relatively flat plateaus, creating a patchwork of different terrain types throughout the region.

Potential Areas for Solar PV Development

When considering large-scale solar photovoltaic (PV) installations near Mixco, several areas present promising characteristics based on topographical considerations: The flatter portions of the Valley of Guatemala to the east and southeast of Mixco offer some of the most suitable terrain for large-scale solar installations. These areas provide relatively level ground that would minimize the earthwork required for construction and maximize the efficiency of panel arrangements. Some of the gently sloping hillsides facing south and southwest could also be advantageous for solar PV development. These south-facing slopes naturally receive more direct sunlight throughout the year in the northern hemisphere, potentially increasing energy generation efficiency. The transitional zones between Mixco and the lower elevations to the south present another opportunity. These areas generally experience less cloud cover than the higher mountain regions and offer reasonable terrain for development.

Topographical Challenges

Despite these opportunities, the topography around Mixco presents several challenges for large-scale solar development. The numerous barrancas and ravines fragment potentially usable land, making it difficult to secure large contiguous parcels necessary for utility-scale installations. The steeper slopes that characterize much of the terrain would require significant grading and earthwork, increasing development costs and potentially creating environmental concerns related to erosion and drainage. Additionally, the higher elevation areas to the north and west experience more frequent cloud cover and fog, which would reduce solar generation potential compared to the clearer conditions found at lower elevations to the south.

Optimal Areas Based on Topography

Considering all topographical factors, the most promising areas for large-scale solar PV development near Mixco would be the relatively flat portions of the Valley of Guatemala extending southeast from the city. These areas combine favorable terrain with good solar exposure and proximity to existing infrastructure. Secondary options would include the moderately sloping areas to the south that transition toward the Pacific coastal plain. While requiring more site preparation, these areas benefit from clearer atmospheric conditions and good solar orientation. The volcanic highlands and mountain slopes, while picturesque, generally present too many topographical challenges to be economically viable for large-scale solar development, though they might support smaller, distributed solar installations.

Guatemala solar PV Stats as a country

Guatemala ranks 87th in the world for cumulative solar PV capacity, with 101 total MW's of solar PV installed. Each year Guatemala is generating 6 Watts from solar PV per capita (Guatemala ranks 77th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Guatemala?

Yes, there are incentives for businesses wanting to install solar energy in Guatemala. The Guatemalan government offers a number of tax credits and other financial incentives to encourage businesses to invest in renewable energy sources such as solar power. These include a 30% income tax credit for investments in renewable energy projects, an exemption from import taxes on equipment used for renewable energy projects, and a 10-year property tax exemption on the value of the solar system installed. Additionally, the government has established net metering regulations that allow businesses to sell excess electricity generated by their solar systems back into the grid at market rates.

Do you have more up to date information than this on incentives towards solar PV projects in Guatemala? Please reach out to us and help us keep this information current. Thanks!
