Solar Energy Potential in Port-au-Prince, Ouest, Haiti

Port-au-Prince, Ouest, Haiti, located at 18.5413°N, -72.3362°W, offers a promising location for solar PV energy generation throughout the year. Situated in the tropics, this Caribbean capital experiences relatively consistent solar radiation patterns, though with some seasonal variations. The solar energy production potential shows strong performance across all seasons. Summer months yield the highest output at 7.20 kWh per day for each kilowatt of installed capacity. Spring follows closely with 7.14 kWh/day, while autumn and winter show somewhat reduced but still substantial generation at 6.09 kWh/day and 5.69 kWh/day respectively. These figures reveal that Port-au-Prince maintains good solar generation potential year-round, with only a moderate drop during the winter months. The difference between the most productive season (summer) and least productive (winter) is just 1.51 kWh/day per kW installed, indicating relatively consistent solar resources throughout the year.

Optimal Panel Installation

For fixed solar panel installations in Port-au-Prince, Ouest, the ideal tilt angle to maximize year-round energy production is 17 degrees facing South. This specific angle has been calculated by analyzing the sun's position throughout the year and weighting it according to the solar energy potential at this latitude. The most productive periods for solar generation in Port-au-Prince are during the summer and spring months, making these ideal times for energy-intensive activities or for storing excess energy if battery systems are available.

Environmental and Weather Considerations

Several significant environmental factors could impact solar production in Port-au-Prince:

• Hurricane exposure poses a serious risk, as Haiti lies within the Atlantic hurricane belt. These powerful storms typically occur between June and November and can damage solar installations through high winds and flying debris.
• Heavy rainfall during the wet season (April to October) can temporarily reduce solar output due to cloud cover and direct rainfall on panels.
• Dust and salt exposure are concerns due to the coastal location, which can gradually decrease panel efficiency if not addressed.
• Seismic activity is a consideration, as Haiti sits on a major fault line, demonstrated by the devastating 2010 earthquake.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended:

• Install hurricane-rated mounting systems designed to withstand winds of at least 160 mph, with reinforced foundations and wind-deflecting panel arrangements.
• Use corrosion-resistant materials and regular cleaning protocols to combat salt air exposure and dust accumulation.
• Implement seismic-resistant mounting structures with flexible connections that can absorb ground movement.
• Consider microinverter or power optimizer technology instead of string inverters, as they minimize system-wide production losses when individual panels are shaded or damaged.
• Establish a regular maintenance schedule, particularly before and after the hurricane season, to ensure optimal system performance.

With proper installation techniques and preventative measures, Port-au-Prince's abundant solar resources can be effectively harnessed despite the environmental challenges present in this tropical location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 2 locations across Haiti. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Haiti by location

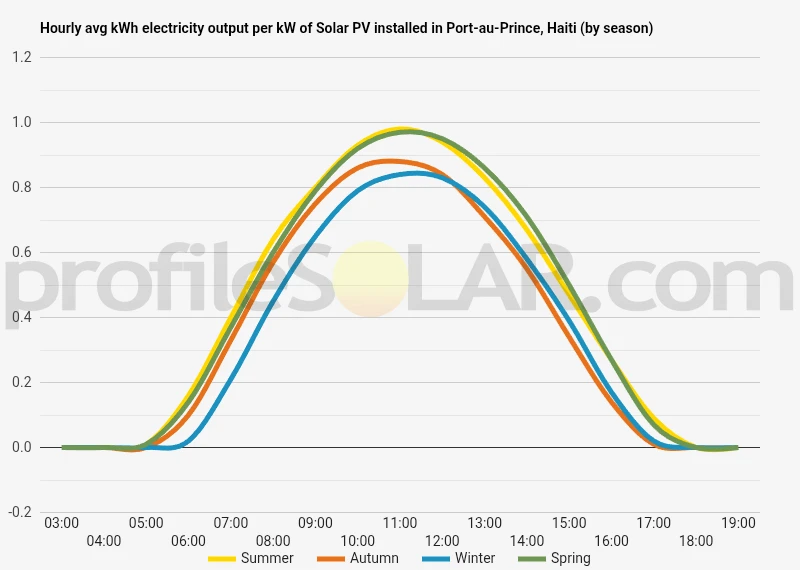

Solar output per kW of installed solar PV by season in Port-au-Prince

Seasonal solar PV output for Latitude: 18.5413, Longitude: -72.3362 (Port-au-Prince, Haiti), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° South in Port-au-Prince, Haiti

To maximize your solar PV system's energy output in Port-au-Prince, Haiti (Lat/Long 18.5413, -72.3362) throughout the year, you should tilt your panels at an angle of 17° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Port-au-Prince, Haiti

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Port-au-Prince, Haiti. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	24° South in Autumn	34° South in Winter	12° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Port-au-Prince, Haiti

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Port-au-Prince, Haiti.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Port-au-Prince, Haiti

Port-au-Prince, the capital of Haiti, is nestled in a natural amphitheater formed by mountains that embrace the city on three sides, with the Caribbean Sea completing the setting to the west. This topographical configuration creates a distinctive landscape that significantly influences the region's climate, development patterns, and potential for renewable energy projects.

Mountain Ranges

The city is surrounded by impressive mountain ranges. To the south lies the imposing Massif de la Selle, which includes Morne La Selle, Haiti's highest peak at approximately 2,680 meters (8,793 feet). To the north, the city is bordered by the Chaîne des Matheux mountains. These mountain ranges create a bowl-like configuration around the urban area, with the metropolitan zone extending from sea level upward along the slopes.

Coastal Plains and Urban Development

The central portion of Port-au-Prince occupies a relatively narrow coastal plain that gradually rises into foothills. This plain has facilitated urban expansion but is quite limited in size. The metropolitan area has consequently grown upward onto the surrounding hillsides, with informal settlements often occupying steeper terrain that presents challenges for infrastructure development. The Cul-de-Sac Plain extends eastward from Port-au-Prince, forming a relatively flat valley that connects the capital to other communities. This plain represents one of the few substantial flat areas near the capital.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas near Port-au-Prince offer promising characteristics: The Cul-de-Sac Plain, extending east from Port-au-Prince toward the Dominican Republic border, presents the most favorable topography for large-scale solar development. This relatively flat terrain experiences minimal shading from mountains during peak sunlight periods and offers substantial undeveloped land parcels. The plain's elevation is low enough to avoid extreme weather conditions while benefiting from the region's strong solar radiation. The plateaus and gentler slopes in the foothills north of Port-au-Prince, particularly near Croix-des-Bouquets, offer moderate-sized areas suitable for solar arrays. These locations balance good sun exposure with accessibility from the capital. Some of the more gradual south-facing slopes of the northern mountain ranges could accommodate terraced solar installations, though these would require more sophisticated engineering solutions than installations on flat terrain.

Topographical Challenges

The mountainous nature of much of the region presents significant challenges for large-scale solar development. Steep slopes are unsuitable for conventional solar arrays due to installation difficulties, potential land stability issues, and variable sun exposure throughout the day as mountains cast shadows. The limited flat land available creates competition between solar development and other vital land uses, including agriculture and urban expansion. The Cul-de-Sac Plain, while ideal for solar from a purely topographical perspective, also represents some of Haiti's most productive agricultural land. Coastal areas, though flat, face increased risks from tropical storms and sea-level rise, making them less ideal for long-term infrastructure investments despite their favorable solar exposure.

Optimal Development Approach

Considering these topographical factors, a distributed approach to solar development may be most appropriate for the Port-au-Prince region. This would involve combining: Medium-scale installations (5-20 MW) on available flat lands in the Cul-de-Sac Plain, carefully balanced with agricultural needs. Smaller installations (1-5 MW) on suitable plateaus and gentler slopes in the foothills surrounding the city. The mountainous topography that might initially seem limiting for solar development actually offers some advantages. The varied terrain creates opportunities for strategic placement of solar arrays that can capture morning and afternoon sun at optimal angles, potentially increasing overall energy production when compared to a single large installation.
